SINGLE CORE FIRE RESISTANT

Applications :-
  • These cables are designed for installations in trunking and conduits where a fire situation may pose a major hazard. Circuit integrity is maintained and to achieve optimum performance such cables should be installed in metal conduits.
Specifications :-
  • Voltage Rating : 450 / 750 V
  • Temperature Range : -20OC to + 90OC (the cable should not be flexed when the temperature is below 0OC)
  • Minimum Bending Radius : 8 x Overall diameter

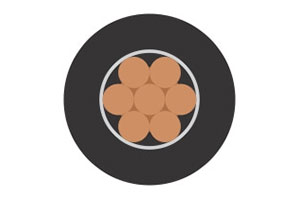

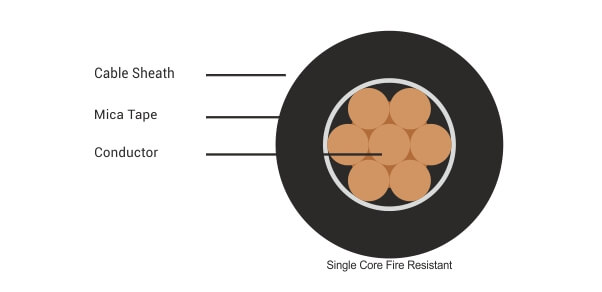

Cable Construction :-

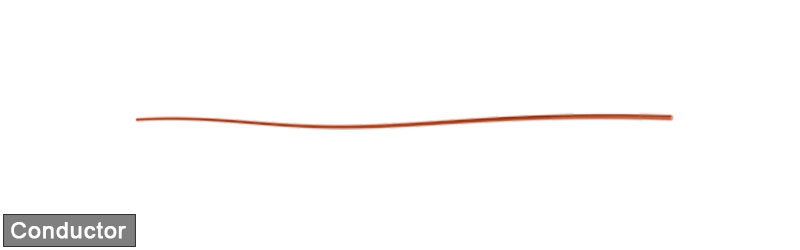

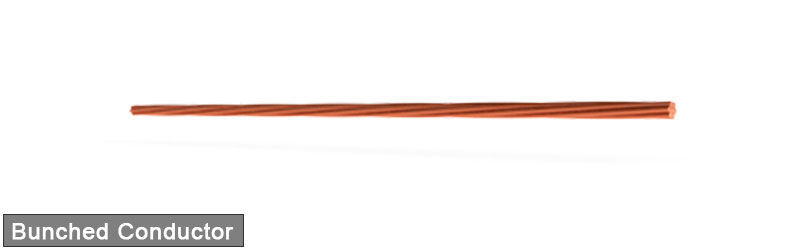

  • Conductors : Stranded Cl. 2 plain annealed copper

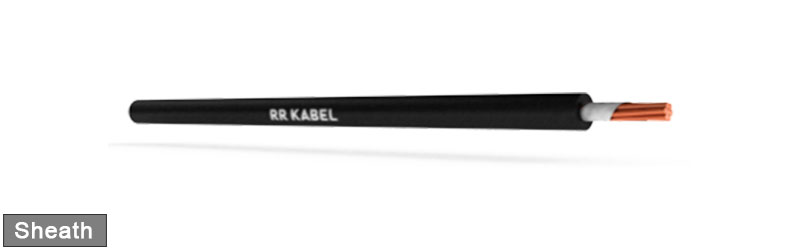

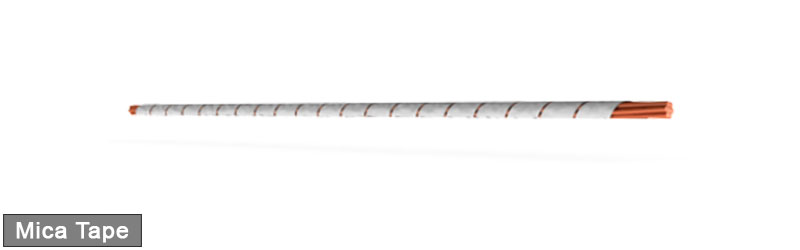

  • Insulation : Mica (fire resistant) tape covered by an extruded layer of cross – linked zero halogen, low smoke insulating compound
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required : 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green / yellow, 09 – brown, 12 – grey.
Part NumberNominal CrossSectional Area (Sq. mm)Insulation Thickness (mm)Max. Overall Diameter (mm)Approx. Cable Weight (kg/km)
10040101xx601.50.73.832
10040102xx6030.84.543
10040103xx6040.85.055
10040104xx6060.85.585
10040105xx60101.07.0146
10040106xx60161.08.0198
10040107xx60251.29.7320
10040108xx60351.210.8410
10040109xx60501.413.3549
10040110xx60701.415.1770
10040111xx60951.617.51140
10040112xx601201.619.21425
10040113xx601501.821.21720
10040114xx601852.023.62155
