SERVO FD 75781-CY

Application :-
  • Connecting between the frequency convertor and the motor for power circuits in machine cabling. In dry damp or wet interiors with normal mechanical stress conditions. For outdoor usage within the permitted range of temperature.
Technical Data :-
  • Standard :Based on EN 50525-2-51
  • Nominal Voltage : UO / U 600 / 1000V
  • Control core pairs : 250V / AC
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V

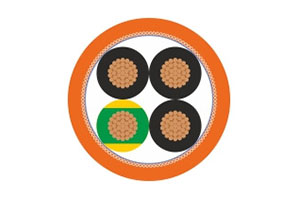

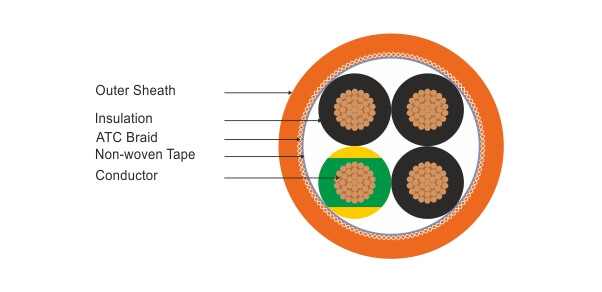

Cable Construction :-

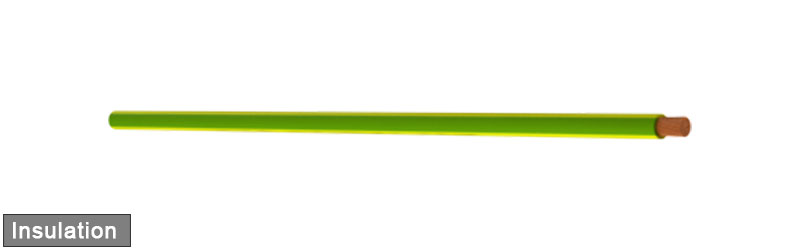

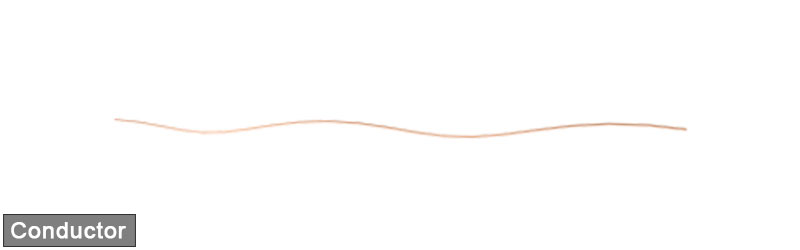

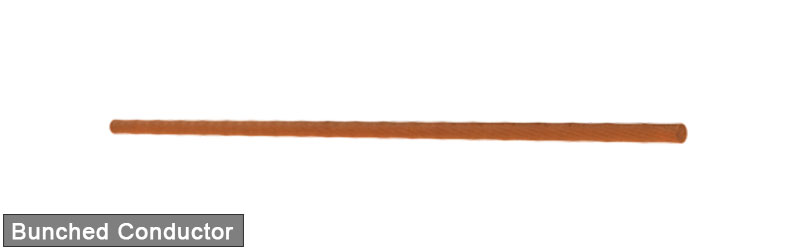

  • Bare copper,fine wire conductors,according to EN60228 Cl.6, PP(polypropylene) core insulation.

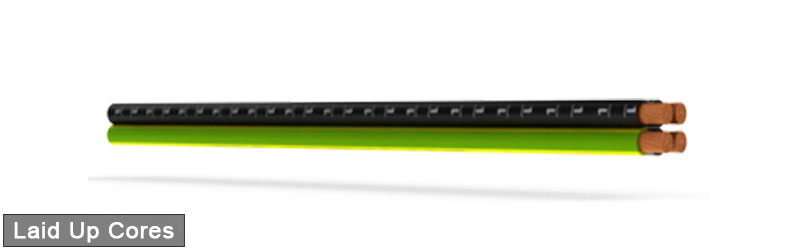

  • Cores are twisted together with shorter lay length.
  • Non woven wrapping.

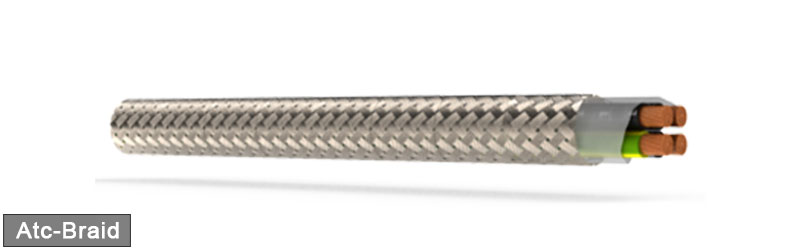

  • Tinned copper braiding.

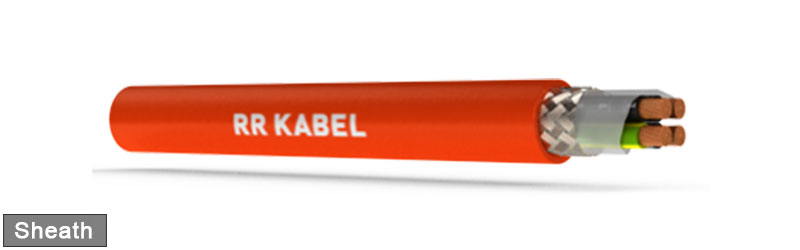

  • Outer sheath : EN 50363-4.1, TM5.
  • PVC orange (RAL 2003).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0410004111054G 1.59.874.3130
0410004112054G 2.511.9113.8205
0410004100044G 413.5169.7286
0410004100104G 1019.7428.0641
0410004100164G 1623.9661.4931
0410004100354G 3533.31386.21808
0410004100504G 5038.31937.22476
