Application :-

• For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The dense screening assures disturbance-free transmission of all signals and impulses. The PVC-inner sheaths of these cables raise the mechanical strength. The applied clear transparent PVC outer sheath accentuates the optical view of the tinned copper braid. These cables are suitable for flexible use for medium mechanical stresses with free movements.

Standard :-

• Adapted to DIN/BS EN 50525-2-51.

Technical Data :-

• Nominal Voltage : U / U 300 / 500V up to 1.5 mm². U / U 450 / 750V at 4.0 mm² and above O O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x cable ø
• Test Voltage : 4000V
• Breakdown Voltage : Min. 8000V

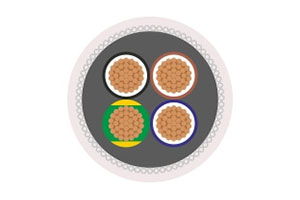

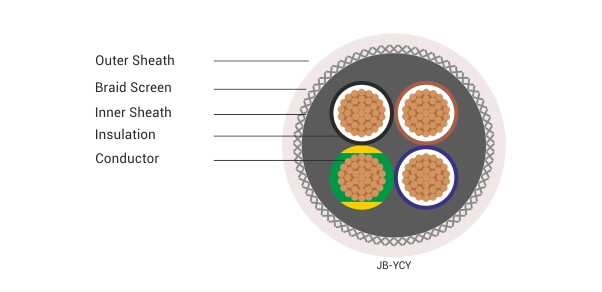

Cable Construction :-

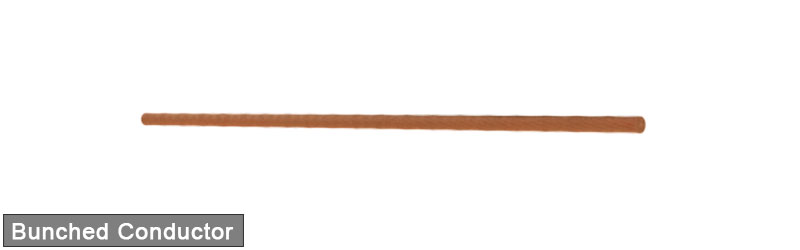

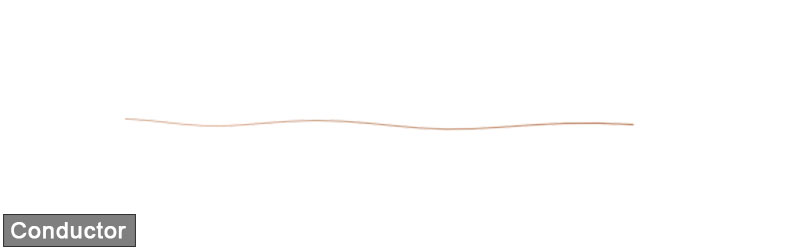

• Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.

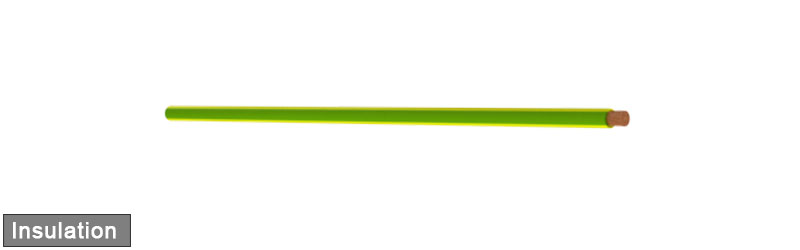

• Core insulation of TI2, EN 50363-3.
• Cores colour coded as per JB/OB colour code.
• Green/yellow earth core in outer layer (3 cores and above).

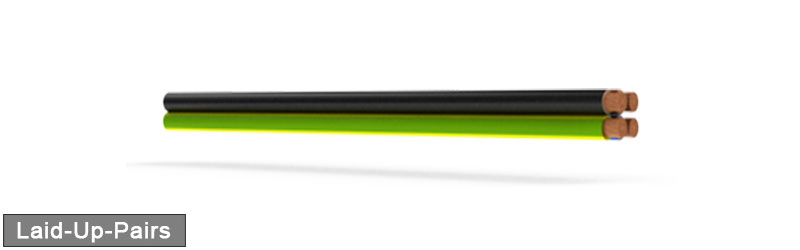

• Cores stranded in layers with optimal lay-length.

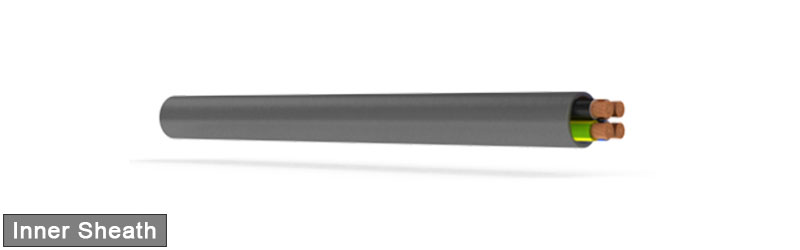

• Special PVC inner jacket.

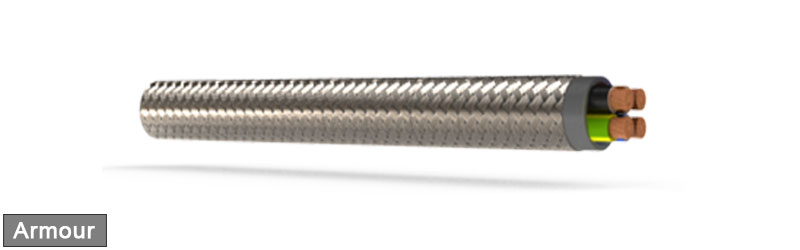

• Tinned copper, braided screen, approx 85% coverage.

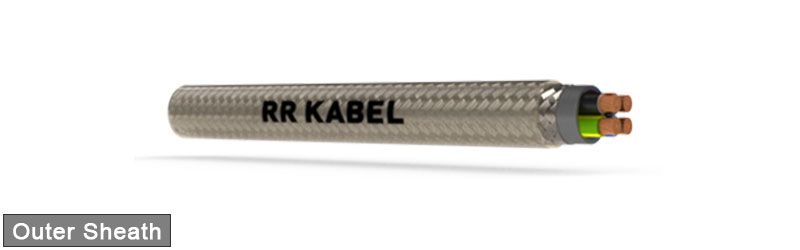

• Transparent special PVC outer sheath.
• Core identification code : As per VDE 0293-302/HD 308 S2

Cable Design Parameters :-
