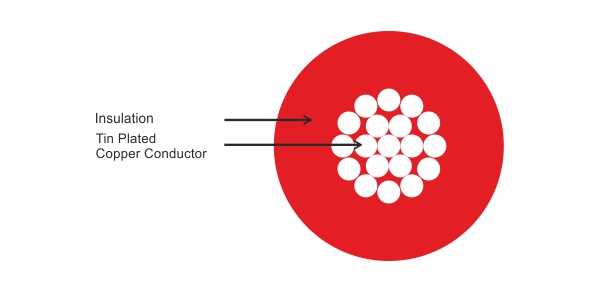

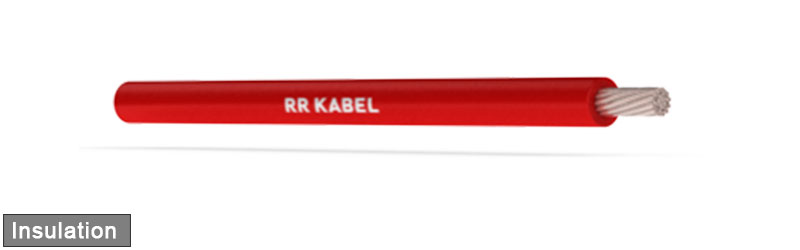

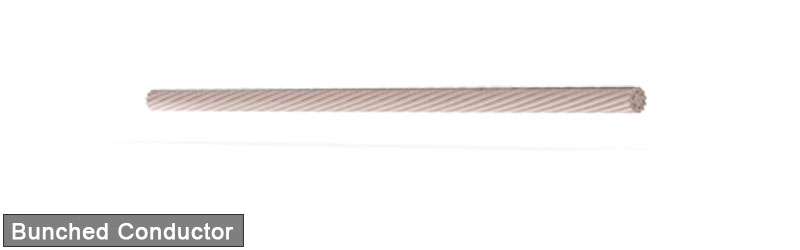

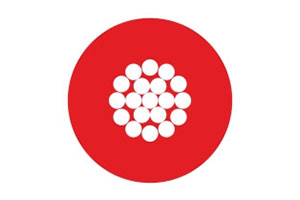

AWG | Metric Cross Section Area (Sq. mm) | No. of Strands/Strand Dia. (mm) | Max. DC Conductor Resistance for ABC @ 20°C (Ω/km) | Max. DC Conductor Resistance for ATC @ 20°C (Ω/km) | Insulation Thickness (mm) | Nominal Cable Diameter (mm) |
---|---|---|---|---|---|---|
21 | 0.5 | 16/0.2 | 43.6 | 46.9 | 0.762 | 2.4 |
19 | 0.75 | 24/0.2 | 27.4 | 29.1 | 0.762 | 2.6 |
18 | 1 | 32/0.2 | 21.8 | 23.2 | 0.762 | 2.8 |
16 | 1.5 | 30/0.25 | 13.7 | 14.6 | 0.762 | 3.1 |
14 | 2.5 | 50/0.25 | 8.62 | 8.96 | 0.762 | 3.5 |
12 | 4 | 56/0.3 | 5.43 | 5.64 | 0.762 | 4 |
10 | 6 | 84/0.3 | 3.409 | 3.546 | 0.762 | 4.6 |
8 | 10 | 140/0.3 | 2.144 | 2.23 | 1.143 | 6.1 |
6 | 16 | 126/0.4 | 1.348 | 1.403 | 1.524 | 7.9 |
4 | 25 | 196/0.4 | 0.8481 | 0.882 | 1.524 | 9.1 |
2 | 35 | 276/0.4 | 0.5335 | 0.5548 | 1.524 | 10.7 |
1 | 50 | 296/0.4 | 0.423 | 0.4398 | 2.032 | 12.8 |
Feb-00 | 70 | 360/0.5 | 0.266 | 0.2766 | 2.032 | 14.8 |
Mar-00 | 95 | 480/0.5 | 0.211 | 0.2194 | 2.032 | 16.2 |
Apr-00 | 120.00 | 608/0.5 | 0.1673 | 0.1722 | 2.032 | 17.7 |
