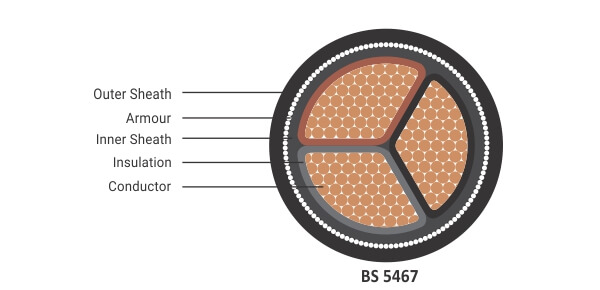

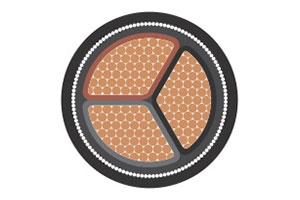

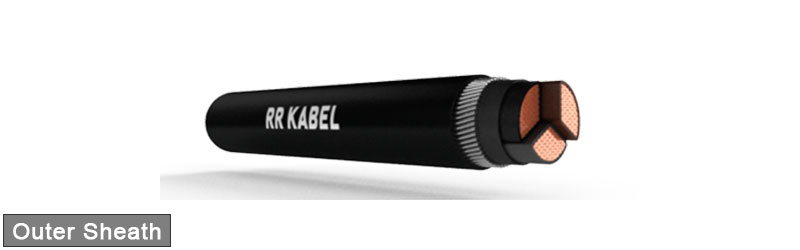

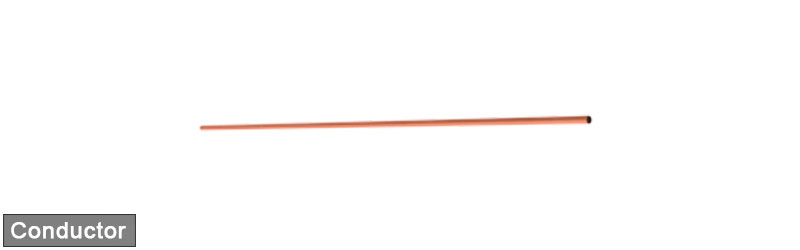

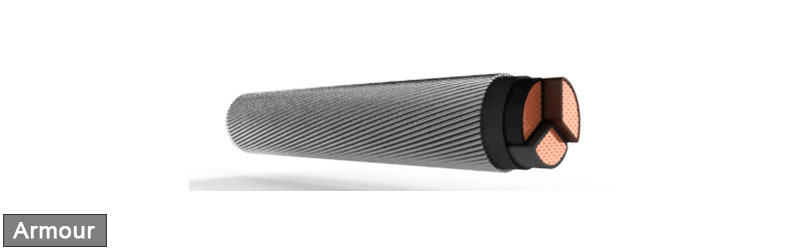

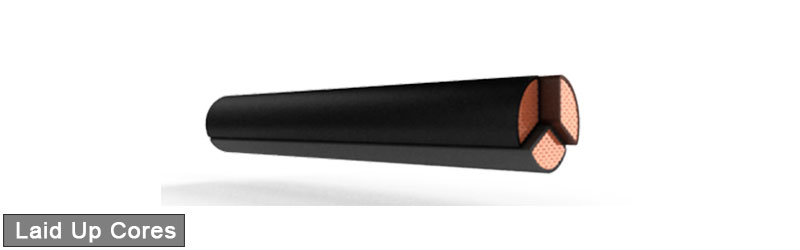

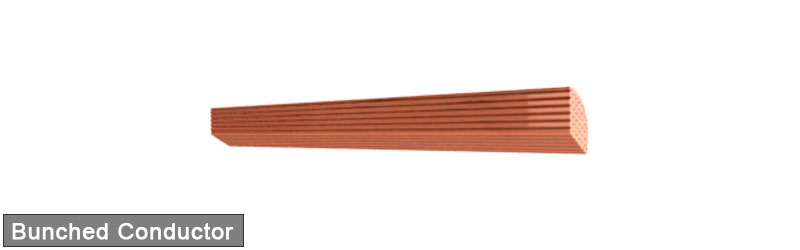

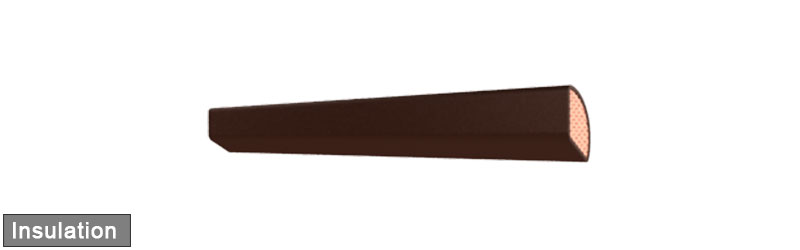

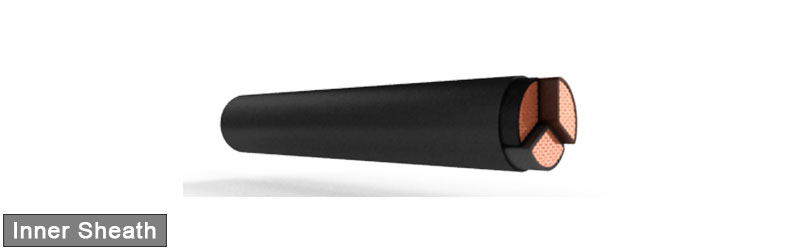

POWER CABLE-BS 5467

Applications :-

Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standard :-

BS 5467.

Technical Data :-

Voltage Rating : 600/1000V
Minimum Bending Radius : 15 x Cable diameter
Maximum Conductor Temperature : 90°C

Cable Design Parameters :-

	PartNumber	Nominal Cross Sectional Area(Sq. mm)	Insulation Thickness(mm)	Armour Wire Diameter(mm)	Approx. Dia. under Armour(mm)	Approx Overall Diameter(mm)	Approx Cable Weight(kg/km)	Maximum Resistance of Cable		Reactance at 50 Hz(Ω/km)	Impedance AC at90°C(Ω/km)	Star Capacitance(μF/km)	MaximumArmourResistance(Ω/km)
	PartNumber	Nominal Cross Sectional Area(Sq. mm)	Insulation Thickness(mm)	Armour Wire Diameter(mm)	Approx. Dia. under Armour(mm)	Approx Overall Diameter(mm)	Approx Cable Weight(kg/km)	DC at 20°C(Ω/km)	AC at 90°C(Ω/km)	Reactance at 50 Hz(Ω/km)	Impedance AC at90°C(Ω/km)	Star Capacitance(μF/km)	MaximumArmourResistance(Ω/km)
Single Core Aluminium Wire Armour	112600100050	50	1.0	0.9	12.7	17.5	800	0.387	0.4938	0.104	0.505	0.41	1.3
	112600100070	70	1.1	1.25	14.7	20.2	960	0.268	0.341	0.101	0.356	0.46	0.75
	112600100095	95	1.1	1.25	16.6	22.3	1240	0.193	0.2469	0.097	0.265	0.53	0.67
	112600100120	120	1.2	1.25	18.5	24.2	1510	0.153	0.1962	0.094	0.217	0.56	0.61
	112600100150	150	1.4	1.6	20.8	27.4	1900	0.124	0.1594	0.095	0.186	0.52	0.42
	112600100185	185	1.6	1.6	23.2	30.0	2320	0.0991	0.128	0.093	0.158	0.54	0.38
	112600100240	240	1.7	1.6	26.0	32.8	2930	0.0754	0.0985	0.09	0.134	0.59	0.34
	112600100300	300	1.8	1.6	28.6	35.6	3580	0.0601	0.0797	0.088	0.119	0.63	0.31
	112600100400	400	2.0	2	32.4	40.4	4600	0.047	0.0635	0.089	0.109	0.62	0.22
	112600100500	500	2.2	2	36.0	44.2	5770	0.0366	0.0513	0.087	0.101	0.66	0.2
	112600100630	630	2.4	2	40.4	48.8	7250	0.0283	0.0419	0.085	0.095	0.7	0.18
	112600100800	800	2.6	2.5	45.6	55.4	9381	0.0221	0.0349	0.087	0.094	0.85	0.13
	112600101000	1000	2.8	2.5	50.6	60.6	11540	0.0176	0.0303	0.085	0.09	0.87	0.12
Two Core Steel Wire Armour	112600201105	1.5	0.6	0.9	7.3	12.1	302	12.1	15.428	0.104	15.428	0.23	10.2
	112600201205	2.5	0.7	0.9	8.5	13.6	346	7.41	9.448	0.101	9.449	0.25	8.8
	112600200004	4	0.7	0.9	9.4	14.7	410	4.61	5.878	0.099	5.879	0.27	7.9
	112600200006	6	0.7	0.9	10.5	15.9	499	3.08	3.927	0.094	3.928	0.3	7
	112600200010	10	0.7	0.9	12.3	18.0	648	1.83	2.333	0.093	2.335	0.32	6
	112600200016	16	0.7	1.25	14.3	20.4	978	1.15	1.466	0.088	1.469	0.35	3.7
	112600200025	25	0.9	1.25	14.7	20.4	1290	0.727	0.926	0.082	0.93	0.38	3.7
	112600200035	35	0.9	1.6	16.8	23.3	1500	0.524	0.6685	0.077	0.673	0.42	2.6
	112600200050	50	1.0	1.6	19.0	25.8	1890	0.387	0.494	0.076	0.5	0.45	2.3
	112600200070	70	1.1	1.6	22.0	29.0	2450	0.268	0.3412	0.075	0.349	0.49	2
	112600200095	95	1.1	2	25.1	33.1	3300	0.193	0.2471	0.074	0.258	0.55	1.4
	112600200120	120	1.2	2	27.9	36.1	4020	0.153	0.1964	0.072	0.209	0.57	1.3
	112600200150	150	1.4	2	30.9	39.3	4750	0.124	0.1597	0.073	0.176	0.57	1,20
	112600200185	185	1.6	2.5	34.9	44.7	6180	0.0991	0.1284	0.073	0.148	0.55	0.82
	112600200240	240	1.7	2.5	39.0	49.0	7570	0.0754	0.0989	0.072	0.122	0.6	0.73
	112600200300	300	1.8	2.5	43.3	53.5	9180	0.0601	0.0801	0.072	0.107	0.62	0.67
	112600200400	400	2.0	2.5	48.4	59.0	10500	0.047	0.0641	0.071	0.096	0.64	0.59
Three Core Steel Wire Armour	112600301105	1.5	0.6	0.9	7.8	12.6	330	12.1	15.428	0.104	15.428	0.23	9.5
	112600301205	2.5	0.7	0.9	9.2	14.1	390	7.41	9.448	0.101	9.449	0.25	8.2
	112600300004	4	0.7	0.9	10.0	15.3	464	4.61	5.878	0.099	5.879	0.27	7.5
	112600300006	6	0.7	0.9	11.2	16.6	568	3.08	3.927	0.094	3.928	0.3	6.7
	112600300010	10	0.7	1.25	13.1	19.5	866	1.83	2.333	0.093	2.335	0.32	4
	112600300016	16	0.7	1.25	15.3	21.6	1152	1.15	1.466	0.088	1.469	0.35	3.5
	112600300025	25	0.9	1.6	18.9	25.5	1800	0.727	0.926	0.082	0.93	0.37	2.5
	112600300035	35	0.9	1.6	21.3	28.0	2230	0.524	0.6685	0.077	0.673	0.42	2.3
	112600300050	50	1.0	1.6	21.7	28.5	2490	0.3870	0.494	0.076	0.5	0.45	2
	112600300070	70	1.1	1.6	25.2	32.2	3290	0.268	0.3412	0.075	0.349	0.49	1.8
	112600300095	95	1.1	2	28.8	37.0	4440	0.193	0.2471	0.074	0.258	0.55	1.3
	112600300120	120	1.2	2	32.0	40.4	5470	0.153	0.1964	0.072	0.209	0.57	1.2
	112600300150	150	1.4	2.5	35.9	45.5	6930	0.124	0.1597	0.073	0.176	0.55	0.78
	112600300185	185	1.6	2.5	40.0	49.8	8350	0.0991	0.1284	0.073	0.148	0.55	0.71
	112600300240	240	1.7	2.5	44.9	55.1	10400	0.0754	0.0989	0.072	0.122	0.6	0.63
	112600300300	300	1.8	2.5	49.8	60.2	12600	0.0601	0.0801	0.072	0.107	0.62	0.58
	112600300400	400	2.0	2.5	55.8	66.6	14600	0.047	0.0641	0.071	0.096	0.64	0.52
Four Core Steel Wire Armour	112600401105	1.5	0.6	0.9	8.5	13.5	365	12.1	15.428	0.104	15.428	0.23	8.8
	112600401205	2.5	0.7	0.9	9.9	15.0	438	7.41	9.448	0.101	9.449	0.25	7.7
	112600400004	4	0.7	0.9	11.0	16.4	532	4.61	5.878	0.099	5.879	0.27	6.8
	112600400006	6	0.7	1.25	12.3	18.7	764	3.08	3.927	0.094	3.928	0.3	4.3
	112600400010	10	0.7	1.25	14.5	21.1	1013	1.83	2.333	0.093	2.336	0.32	3.7
	112600400016	16	0.7	1.25	17.0	22.9	1360	1.15	1.466	0.088	1.469	0.35	3.1
Five Core Steel Wire Armour	112600400025	25	0.9	1.6	21.0	27.6	2160	0.727	0.926	0.082	0.93	0.37	2.3
	112600400035	35	0.9	1.6	23.6	30.4	2690	0.524	0.6685	0.077	0.673	0.42	2.0
	112600400050	50	1.0	1.6	25.0	32.0	3130	0.387	0.494	0.076	0.5	0.45	1.8
	112600400070	70	1.1	2	29.5	37.7	4500	0.268	0.3412	0.075	0.349	0.48	1.2
	112600400095	95	1.1	2	33.3	41.7	5600	0.193	0.2471	0.074	0.258	0.55	1.1
	112600400120	120	1.2	2.5	37.5	47.1	7400	0.153	0.1964	0.072	0.209	0.55	0.76
	112600400150	150	1.4	2.5	41.6	51.4	8780	0.124	0.1597	0.073	0.176	0.55	0.68
	112600400185	185	1.6	2.5	46.4	56.6	10630	0.0991	0.1284	0.073	0.148	0.55	0.61
	112600400240	240	1.7	2.5	52.6	63.0	13390	0.0754	0.0989	0.072	0.122	0.58	0.54
	112600400300	300	1.8	2.5	58.0	68.8	16290	0.0601	0.0801	0.072	0.107	0.62	0.49
	112600400400	400	2.0	3.15	65.4	78.1	19800	0.047	0.0641	0.071	0.096	0.63	0.35
	112600501105	1.5	0.6	0.9	9.7	14.3	410	12.1	15.428	0.104	15.428	0.23	8.2
	112600501205	2.5	0.7	0.9	11.7	16.3	470	7.41	9.448	0.101	9.449	0.25	6.8
	112600500004	4	0.7	0.9	13.0	17.8	710	4.61	5.878	0.099	5.879	0.27	6.2
	112600500006	6	0.7	1.25	14.5	20.0	876	3.08	3.927	0.094	3.928	0.3	3.9
	112600500010	10	0.7	1.25	17.2	22.9	1165	1.83	2.333	0.093	2.336	0.32	3.4
	112600500016	16	0.7	1.6	20.0	26.6	1742	1.15	1.466	0.088	1.469	0.35	2.2
	112600500025	25	0.9	1.6	24.7	31.5	2323	0.727	0.926	0.082	0.93	0.37	1.8
	112600500035	35	0.9	1.6	27.8	34.8	2932	0.524	0.6685	0.077	0.673	0.42	1.6
	112600500050	50	1.0	2	32.4	40.4	4192	0.387	0.494	0.076	0.5	0.45	1.1
	112600500070	70	1.1	2	37.9	46.3	5336	0.268	0.3412	0.075	0.349	0.48	0.9
