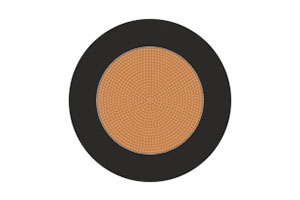

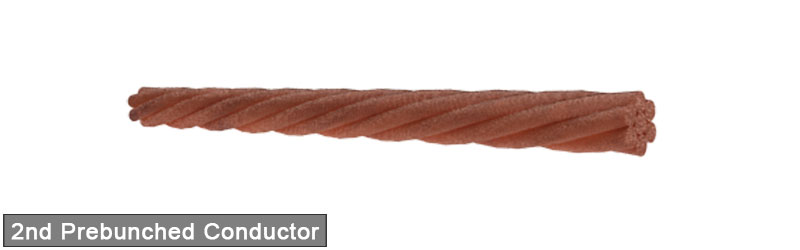

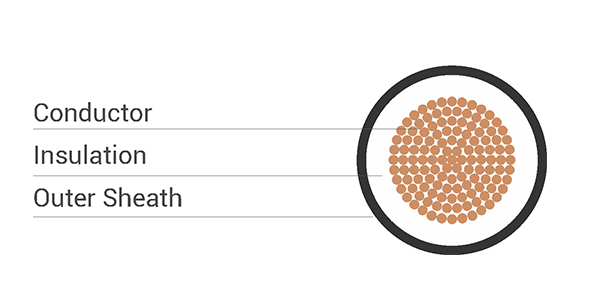

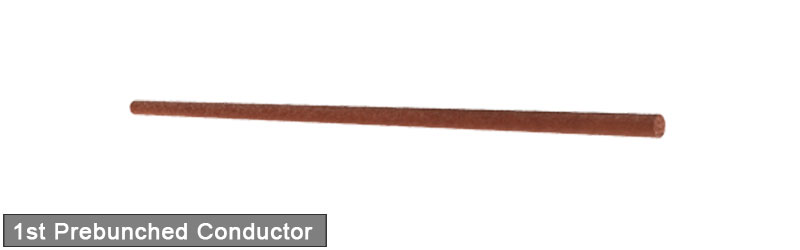

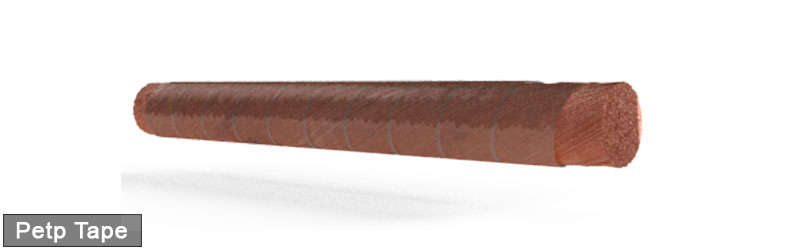

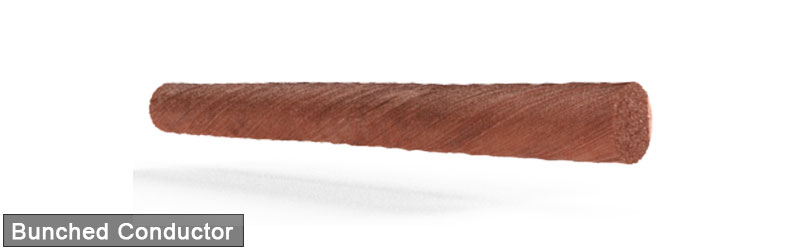

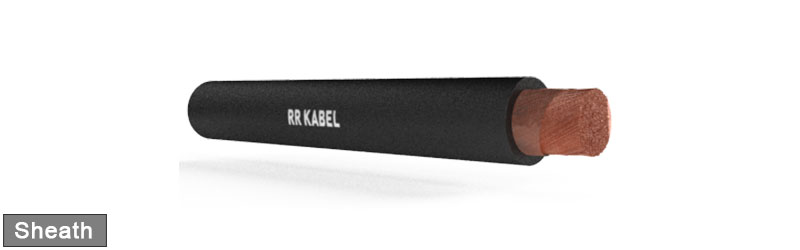

Part Number | No. of Cores x Nominal Cross-Sectional Area (Sq. mm) | Max. Strand Diameter (mm) | Max. DC Conductor Resistance (Spec) (Ω/km) | Nominal Insulation Thickness (mm) | Nominal Cable Diameter (mm) |
---|---|---|---|---|---|
120500100016 | 16 | 0.21 | 1.21 | 2.0 | 9.2 |
120500100025 | 25 | 0.21 | 0.78 | 2.0 | 10.5 |
120500100035 | 35 | 0.21 | 0.554 | 2.0 | 11.5 |
120500100050 | 50 | 0.31 | 0.386 | 2.2 | 13.5 |
120500100070 | 70 | 0.31 | 0.272 | 2.4 | 15.5 |
120500100095 | 95 | 0.31 | 0.206 | 2.6 | 17.7 |
Part Number | Nominal Cross Sectional Area of Conductor (Sq. mm) | Current Rating at a Maximum Duty Cycle of | ||||
---|---|---|---|---|---|---|
100% A | 85% A | 60% A | 30% A | 20% A | ||
120500100016 | 16 | 94 | 102 | 121 | 172 | 210 |
120500100025 | 25 | 125 | 136 | 161 | 228 | 279 |
120500100035 | 35 | 156 | 169 | 201 | 285 | 349 |
120500100050 | 50 | 197 | 214 | 254 | 360 | 440 |
120500100070 | 70 | 248 | 269 | 320 | 453 | 555 |
120500100095 | 95 | 299 | 342 | 386 | 546 | 669 |
