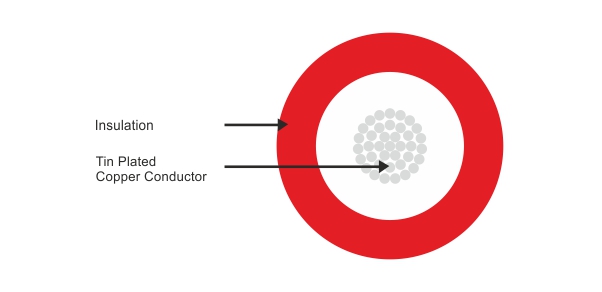

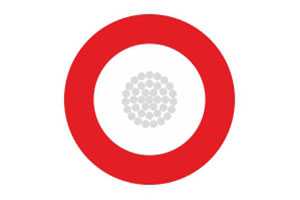

UL 1275

Applications :-

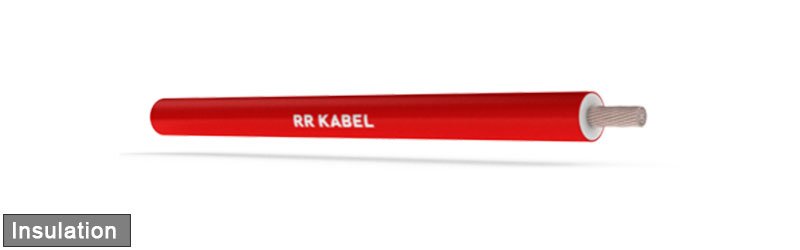

  • PVC-insulated heavy wall lead wire, for use as hook – up wire and for internal wiring on refrigeration equipments.
Technical Data :-
  • Standard : UL – Std. 758, CSA C 22.2 No.210
  • NominalVoltage : 300V
  • TestVoltage : 2000V
  • Temperature Range : -20°C to 105°C
  • Bending Radius : Fixed installation 5 x cable ø
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue
Part NumberAWG No.No. of Cores & Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx Cable Weight (kg/km)
06050101xx30181 x 0.824.38.327.4
06050102xx30161 x 1.324.613.535.1
06050103xx30141 x 2.08520.444.9
06050104xx30121 x 3.315.532.560.6
06050105xx30101 x 5.266.151.784.5
