BS 6231 CK 90°C

Application :-
  • High temperature, flame retardant cable designed for use in switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standard :-
  • BS6231 Type CK.
Technical Data :-
  • Voltage Rating : 600 / 1000V
  • Temperature Rating : 90°C (105°C for 15,000 hours)
  • Minimum Bending Radius : Cable diameter ≤8 mm : 4 x outer diameter., Approx. diameter > 8 to 12 mm: 5 x outer diameter., Approx. diameter > 12 mm: 6 x outer diameter.
  • Test Voltage : 2500V

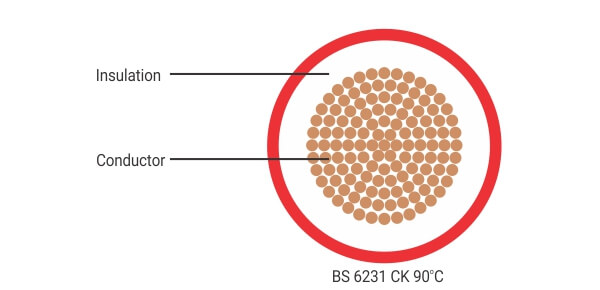

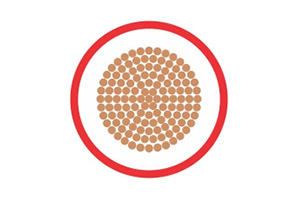

Cable Construction :-

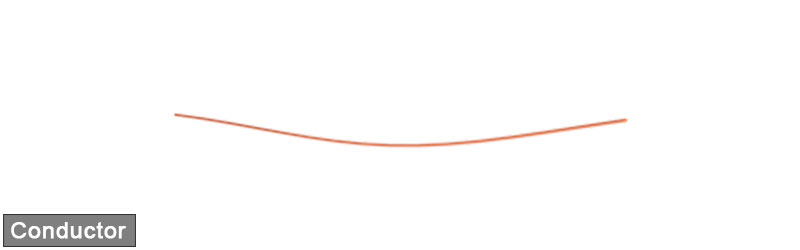

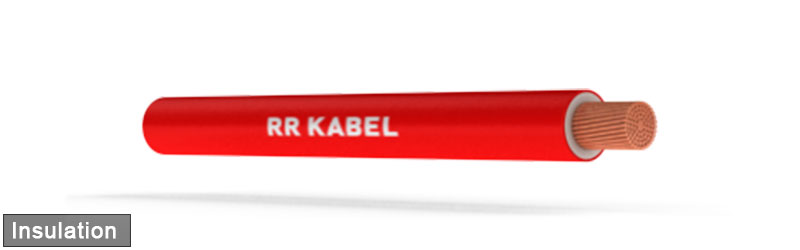

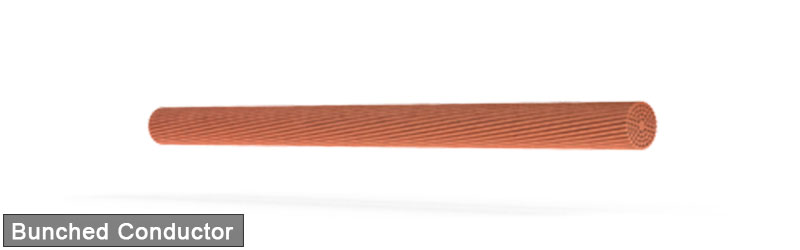

  • Conductor : Conductor Class 5 flexible plain/metal coated stranded according to EN 60228 cl. 5. Insulation : PVC (Polyvinyl Chloride) TI3 to BS EN 50363-3.
Properties :-
  • PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
  • By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
Part NumberNominal Cross Sectional Area (Sq. mm)Nominal Thickness of Insulation (mm)Mean Overall DiameterApprox. Cable Weight (kg/km)
Lower Limit (mm)Upper Limit (mm)
02060101xx3c0.50.82.43.011
02060102xx3c0.750.82.63.114
02060103xx3c10.82.73.316
02060104xx3c1.50.83.03.621
02060105xx3c2.50.83.44.132
02060106xx3c40.83.94.846
02060107xx3c60.84.45.364
02060108xx3c101.05.77.2109
02060109xx3c161.06.79.0166
02060110xx3c251.28.411.5256
02060111xx3c351.29.712.5352
02060112xx3c501.411.515.4501
02060113xx3c701.413.217.5692
02060114xx3c951.615.119.2914
02060115xx3c1201.616.721.21155
02060116xx3c1501.818.623.91441
02060117xx3c1852.020.625.91754
02060118xx3c2402.223.528.92305
