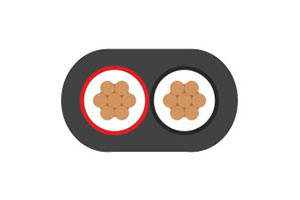

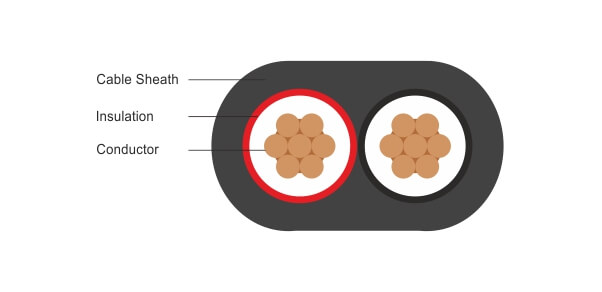

TWO CORE PVC FLAT CABLE (IS 694)

Application :-
  • PVC 70°C cables suitable for wiring in residential and commercial infrastructure.
  • HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature.
  • FR-LSH cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.
Specifications :-
  • Approvals : IS 694 marked, FIA / TAC

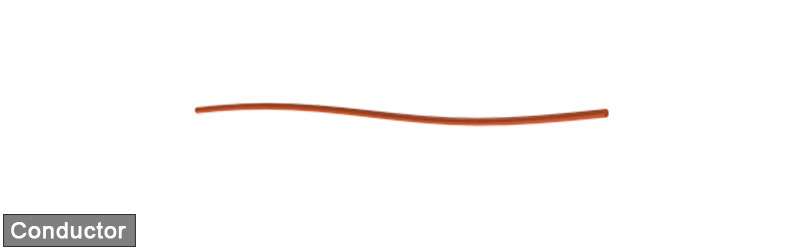

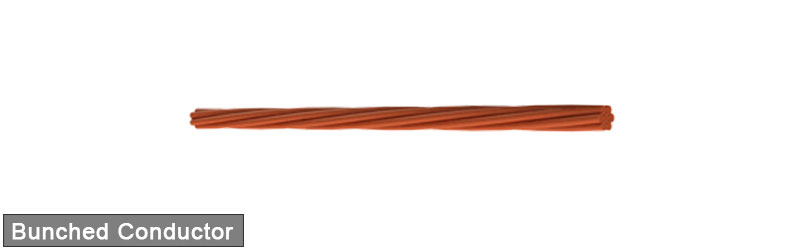

  • Conductor : Electrolytic grade annealed copper
  • Core Colour : Red, black

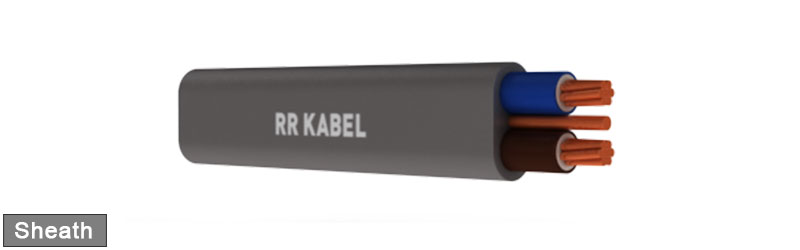

  • Sheath Colour : Black, grey and white
  • Packing : Standard packing of 100m in coils. Longer length available on request.
Variants Available :-
Product TypeSpecifications

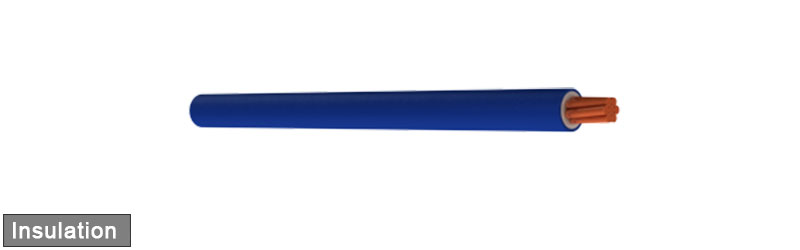

PVC 70°CIS 694, IS 8130 Class 1 & 2, IS 5831 Type A insulation & ST-1 sheath
HR 85°CIS 694, IS 8130 Class 1 & 2, IS 5831 Type C insulation & ST-2 sheath
FR 70°CIS 694, IS 8130 Class 1 & 2, IS 5831 Type A insulation & ST-1 ( FR ) sheath
HR 85°C + FRIS 694, IS 8130 Class 1 & 2, IS 5831 Type C insulation & ST-2 (FR) sheath
FR-LSHIS 694, IS 8130 Class 1 & 2, IS 5831 Type A insulation & ST-1 (FR-LSH) sheath
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the product type required: 1 – PVC 70°C, 2 – PVC FR 70°C, 3 – PVC HR 85°C, 4 – PVC HR 85°C +FR, 5 – PVC FR-LSH and (in place of ‘z’) for the sheath colour required as per the list: 1 – black, 2 – grey, 3 – white
Part NumberNominal Cross Sectional Area (Sq. mm)Nominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Maximum Overall Dimension (W x H) (mm x mm)
0117110132yz0.50.60.97.2 X 4.9
0117110232yz0.750.60.97.8 X 5.2
0117110332yzz10.60.98.0 X 5.4
0117110432yz1.50.60.98.6 X 5.6
0117110532yz2.50.71.010.5 x 6.6
0117110632yz40.81.012.0 X 7.4
0117110732yz60.81.113.0 X 8.0
0117110832yz101.01.416.0 X 9.6
0117110932yz161.01.418.5 X 11.0
0117111032yz251.22.022.5 X 13.0
0117111132yz351.22.025.5 X 14.5
0117111232yz501.42.229.0 X 16.5
