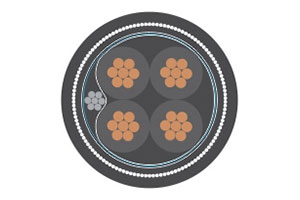

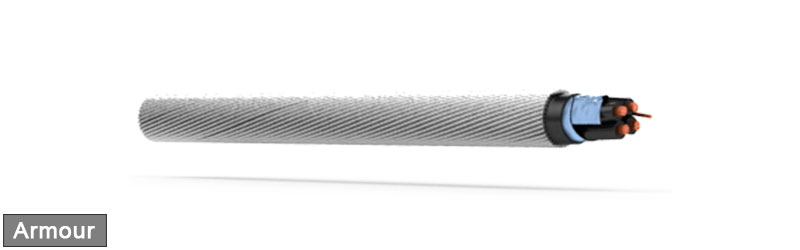

RE-2X(St)YSWAY – MULTICORE

Applications :-
  • Adapted to EN 50288-7.

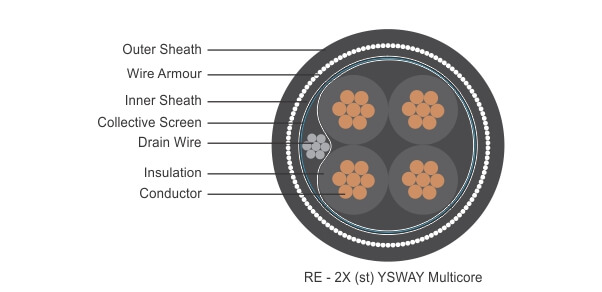

Cable Construction :-

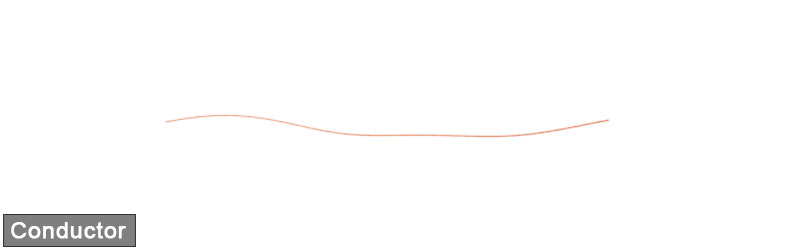

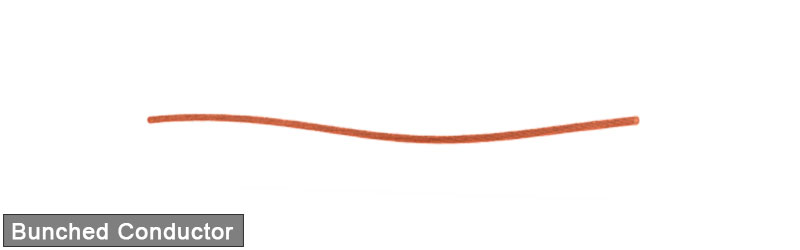

  • Conductor : Annealed copper wires according to BS EN 60228

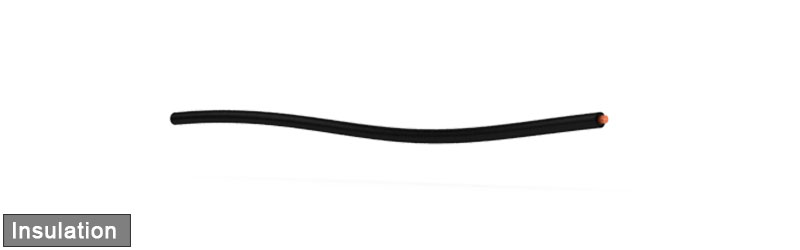

  • Insulation : Cross-linked polyethylene XLPE
  • Colour Code : Black, continuously numbered in white

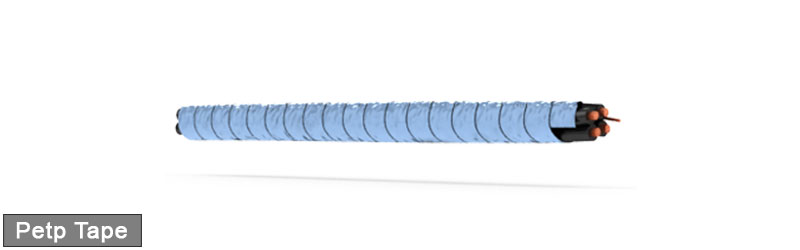

  • Wrapping : 1 layer of PETP tape
  • Collective Screen : Aluminium / PETP tape over tinned copper drain wire
  • Inner Sheath : Polyvinyl Chloride PVC
  • Armour : Galvanised round steel wires

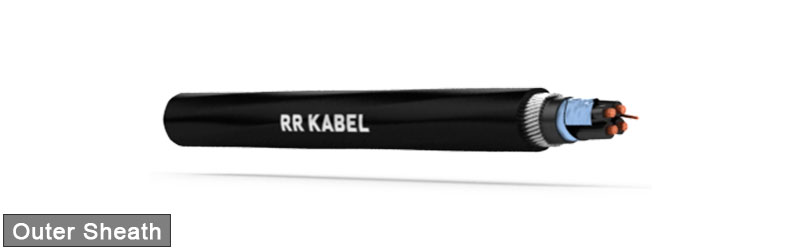

  • Cable Sheath : Polyvinyl Chloride PVC
  • Colour : Black. Blue for intrinsically safe system
Technical Data :-
  • Flame Propagation : EN 60332-1-2
  • Operating Temperature Range : -30°C to +70°C
  • Bending Radius : 10 x cable diameter
  • Operating Voltage : 500V
  • *Also available in 300V variant on request
  • Marking : RR KABEL c x a RE-2X(St)YSWAY 500V EN 50288-7 CE + 0001m
  • c – No. of cores, a – Cross sectional area
Electrical Properties :-
Conductor Cross Section (Sq.mm)Class of ConductorNo. of Strands/Max. Strand Diameter (mm)Max. DC Conductor Resistance at 20°C (Ω/km)Max.L/R Ratio (μH/Ω)Min. Insulation Resistance (GΩ x cm)Max. Mutual Capacitance (nF/km)Max. Inductance (mH/km)Test Voltage Vrms (Core-Core)Test Voltage Vrms (Core-Screen)
0.527/0.336.0255000150120002000
0.5516/0.239.0255000150120002000
0.7527/0.3724.5255000150120002000
0.75524/0.226.0255000150120002000
127/0.4318.1255000150120002000
1532/0.219.5255000150120002000
1.527/0.5312.1405000150120002000
2.527/0.677.41605000150120002000
