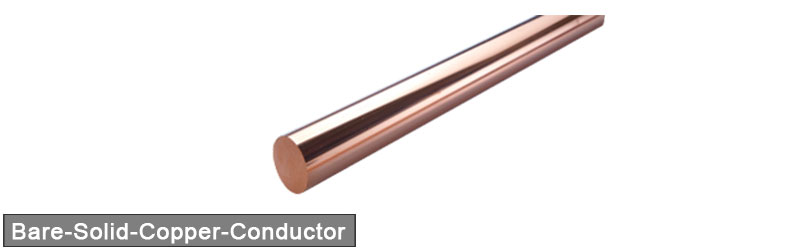

BARE COPPER CONDUCTOR

Applications :-
  • The bare copper conductor are used as ground conductor, uninsulated hook up wires and jumpers.
Standard :-
  • IEC 60228, BS EN 60228.
Technical Data :-
  • Description : Soft drawn plain annealed copper
  • Packing : In wooden drums
Cable Construction :-

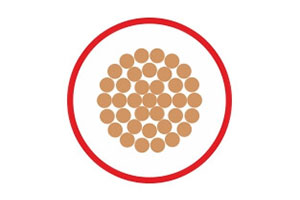

  • The conductor consist of annealed bare copper wire which are stranded together.
  • The construction of the conductor is in accordance to IEC 60220 and BS EN 60228.
Cable Design Parameters :-
Part NumberNominal Cross-Sectional Area (Sq. mm)Conductor DetailsApprox. Conductor Diameter (mm)Approx Net Weight (kg/km)
No. of StrandMax. DC Conductor Resistance at 20°C (Ώ/Km)
1211010100001671.155.01141
1211010200002570.7276.32223
1211010300003570.5247.41309
12110104000050190.3878.72418
12110105000070190.26810.53604
12110106000095190.19312.34839
121101070000120370.15313.911059
121101080000150370.12415.451306
121101090000185370.099117.281634
121101100000240610.075419.842148
121101110000300610.060122.222695
121101120000400910.04725.153446
121101130000500910.036628.494425
121101140000630910.028332.415723
