UNINYVIN CABLE

Applications :-

These cables are used in UPS systems and server rooms as the nylon and fiber glass braid on the cable does not allows the heat generated in the conductor, due to continuous operation, to be felt in the surrounding areas. These cables are widely used in aircraft cabling.

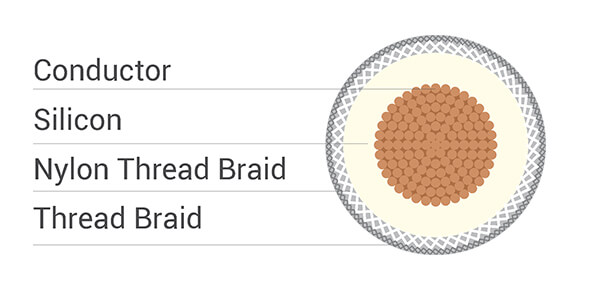

Cable Construction :-

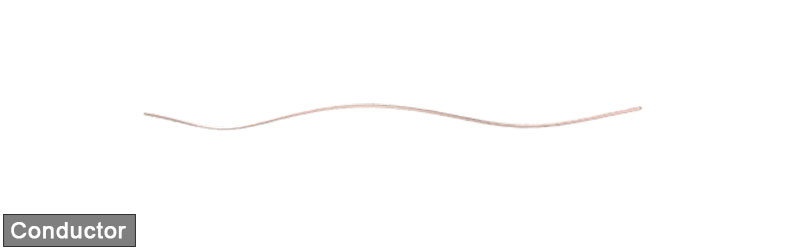

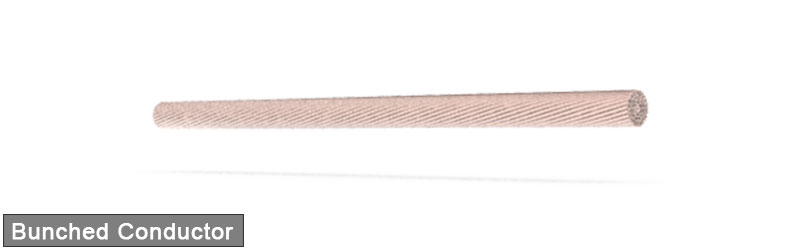

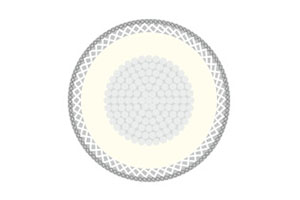

Conductor : Annealed tinned copper to IS:10241 Part 3, uniformly bunched to form a circular shape

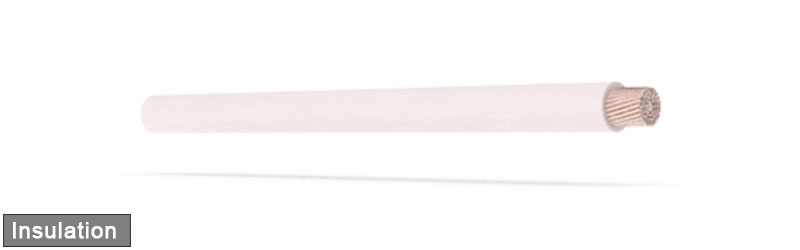

Insulation : Special core insulation HR-PVC 105° C

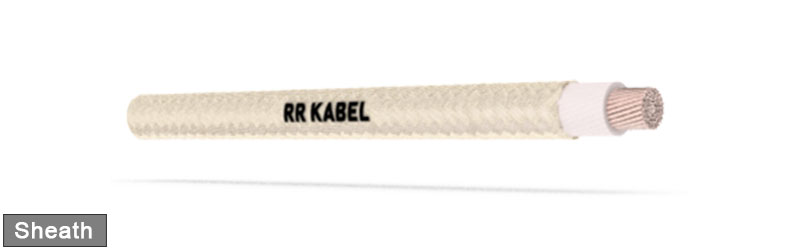

Primary Braid : Braided with glass fiber, 100% coverage
Secondary Braid : Braided with nylon fiber, 100% coverage
Lacquer : Overall construction is finally lacquered with nylon varnish

Cable Design Parameters :-

Part Number	Cable Size	Conductor				Radial Thickness	Nylon Braidand Lacquer		Overall Diameter of Cable		DC Conductor Resistance at 20OC (Ω/km)	Max. Current Rating (Amps.)
Part Number	Cable Size	Nom.Cross Sectional Area (Sq. mm)	No. & Dia.of Wiresin (mm)	Max. Conductor Diameter (mm)	Min. Conductor Diameter (mm)	Min. PVC Insulation	Max.(mm)	Min.(mm)	Max.(mm)	Min.(mm)	DC Conductor Resistance at 20OC (Ω/km)	KSD-07-073	BS G 177
120401010001	22	0.347	19/0.152	0.838	0.737	0.229	0.178	0.076	2.0	1.8	54.314	14	11
120401020001	20	0.556	19/0.193	1.041	0.940	0.229	0.178	0.076	2.3	2	33.85	18	14
120401030001	18	0.966	33/0.193	1.321	1.219	0.229	0.178	0.076	2.5	2.3	19.49	23	18
120401040001	16	1.171	40/0.193	1.549	1.397	0.229	0.178	0.076	2.8	2.5	16.08	27	21
120401050001	14	2.05	70/0.193	1.956	1.803	0.279	0.178	0.076	3.4	3	9.2	40	31
120401060001	12	3.22	110/0.191	2.438	2.286	0.279	0.178	0.076	3.8	3.5	5.85	55	43
120401070001	10	5.33	73/0.305	3.15	2.896	0.381	0.381	0.127	5 4.	6	3.532	78	61
120401080001	8	8.76	120/0.305	3.242	3.937	0.381	0.381	0.127	6.3	5.9	2.154	111	87
120401090001	6	13.3	182/0.305	5.537	5.08	0.381	0.381	0.127	7.6	7.3	1.422	148	115
120401100001	4	21.5	294/0.305	6.909	6.452	0.483	0.381	0.127	9.3	8.8	0.877	205	160
120401110001	2	33.3	203/0.457	8.763	8.128	0.483	0.381	0.127	11.0	10.5	0.565	256	200
120401120001	1	40.7	248/0.457	9.754	9.119	0.559	0.381	0.127	12.2	11.7	0.463	282	220
120401130001	0	53.0	323/0.457	10.973	10.338	0.635	0.381	0.127	13.7	13.0	0.355	308	240
120401140001	00	68.3	416/0.457	12.446	11.684	0.686	0.381	0.127	15.4	14.6	0.276	346	270
120401150001	000	84.2	513/0.457	13.919	13.157	0.762	0.381	0.127	16.9	16.1	0.233	384	300
120401160001	0000	109	666/0.457	15.621	14.859	0.787	0.381	0.127	18.7	17.9	0.173	450	350
