Application :-

• Wiring cable in tool machinery, conveyor belts and production lines, plant engineering, Industrial machinery, air conditioning, steel production plants and rolling mills.

Standard :-

• Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation thickness for 1 kV.

Technical Data :-

• Nominal Voltage : U / U 0.6 / 1kV O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
• Test Voltage : 4000V
• Breakdown Voltage : Min. 8000V

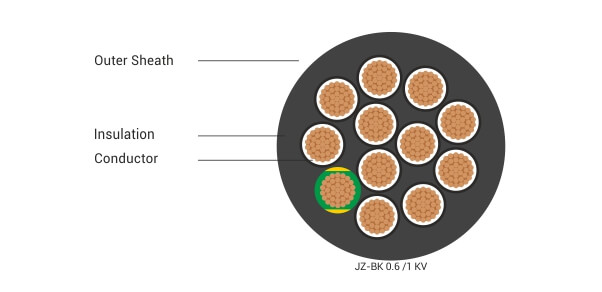

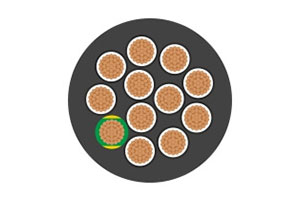

Cable Construction :-

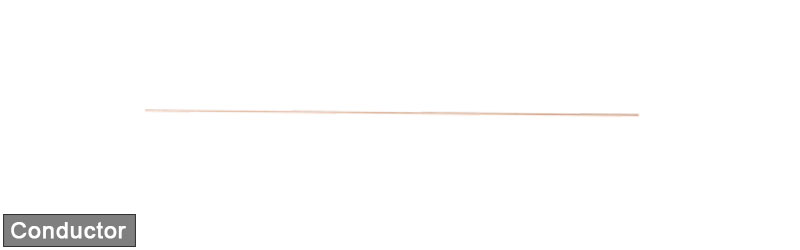

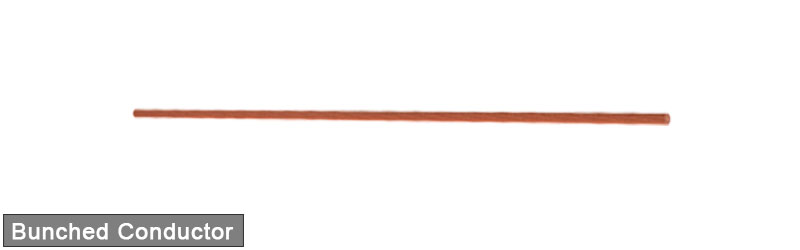

• Bare copper, fine wire conductors, as per EN60228 Cl. 5.

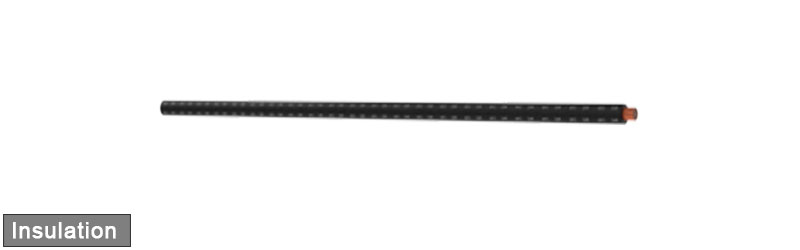

• Special PVC core insulation TI2, to EN 50363-3.
• Black Core with continuous white numbering to DIN VDE 0293.
• Green/yellow earth core in outer layer (3 cores and above).

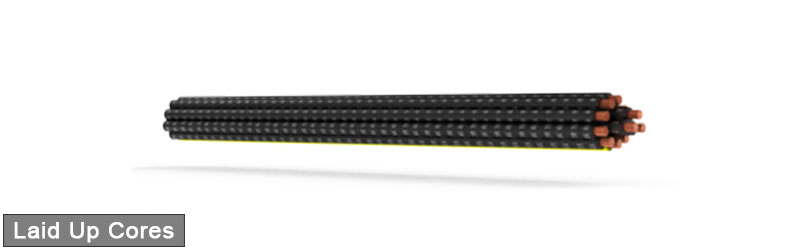

• Cores stranded in layers with optimal lay-length.

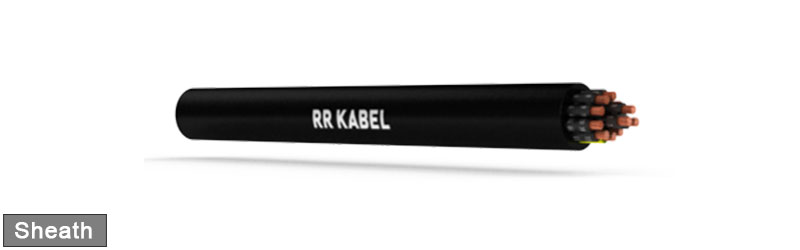

• Special PVC outer sheath TM2, to EN 50363-4-1.
• Colour Black (RAL 9005).

Cable Design Parameters :-
