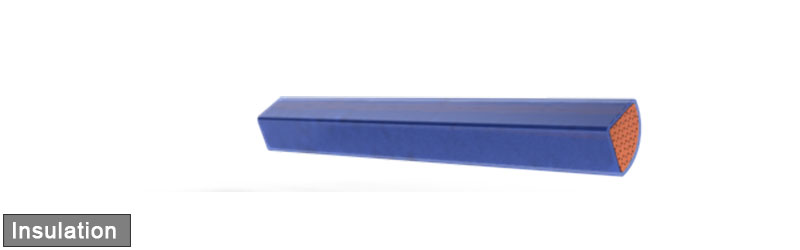

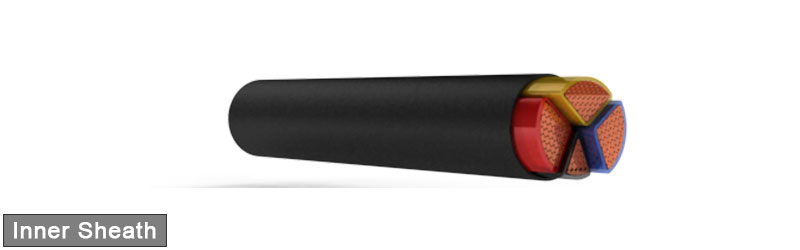

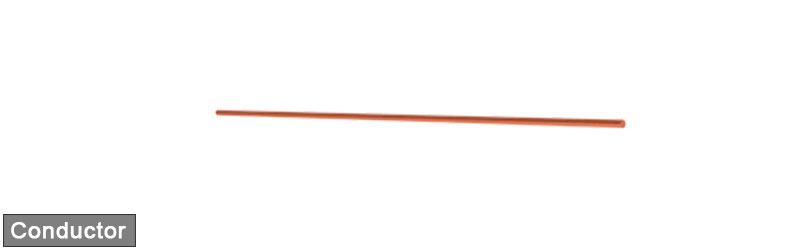

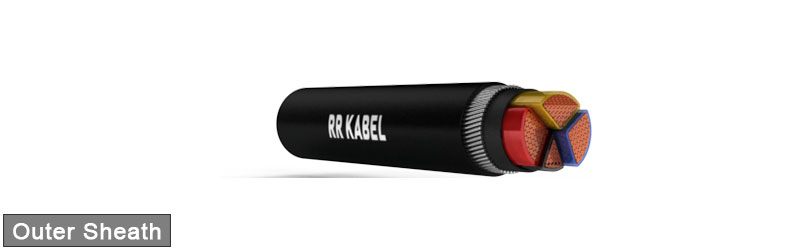

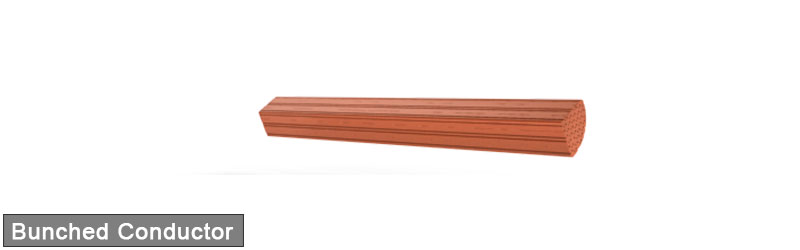

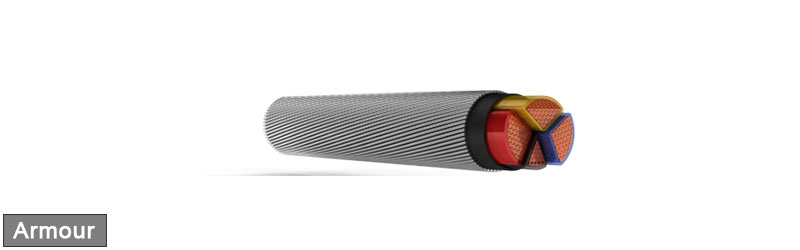

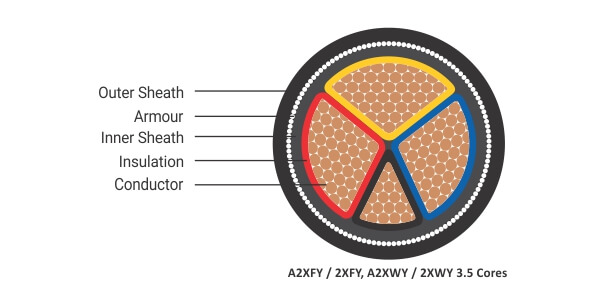

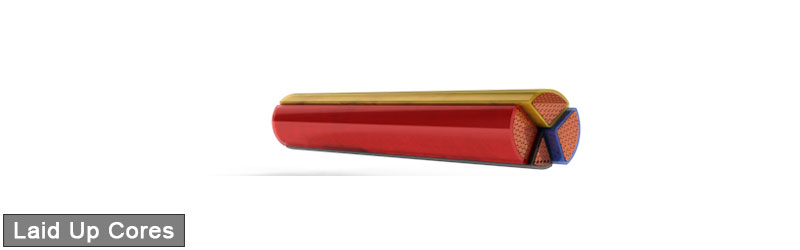

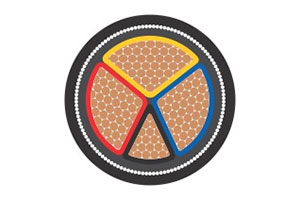

| PartNumber | Size Cores x Sq. mm +Neutral(Sq. mm) | Nominal Thickness of Insulation (mm) | Minimum Thickness of Inner Sheath(mm) | Armouring with flat strip (A2XFY/ 2XFY) | Armouring with round wire (A2XWY/ 2XWY) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness of Arm.Strip(mm) | Minimum Thickness of OuterSheath(mm) | Approx.OverallDia.(mm) | Approx. Net Wt.of Cable (kg/km) | Nominal Diameter of Wire(mm) | Minimum Thickness of OuterSheath (mm) | Approx. Overall Dia.(mm) | Approx. Net Wt.of Cable (kg/km) | ||||||
| AL Cable A2XFY | CU Cable2XFY | AL Cable A2XFY | CU Cable 2XWY | ||||||||||
| 112101010211 | 3×25+16 | 0.9/0.7 | 0.3 | 0.8 | 1.40 | 23 | 900 | 1400 | 1.6 | 1.40 | 25 | 1080 | 1685 |
| 112101020211 | 3×35+16 | 0.9/0.7 | 0.3 | 0.8 | 1.40 | 25 | 1000 | 1800 | 1.6 | 1.40 | 27 | 1285 | 1980 |
| 112101030211 | 3×50+25 | 1.0/0.9 | 0.3 | 0.8 | 1.40 | 28 | 1200 | 2300 | 1.6 | 1.56 | 30 | 1580 | 2685 |
| 112101040211 | 3×70+35 | 1.1/0.9 | 0.4 | 0.8 | 1.56 | 32 | 1600 | 3200 | 2.0 | 1.56 | 35 | 2190 | 3690 |
| 112101050211 | 3×95+50 | 1.1/1.0 | 0.4 | 0.8 | 1.56 | 35 | 2000 | 4100 | 2.0 | 1.56 | 38 | 2580 | 4585 |
| 112101060211 | 3×120+70 | 1.2/1.1 | 0.4 | 0.8 | 1.72 | 39 | 2400 | 5100 | 2.0 | 1.72 | 42 | 3085 | 5680 |
| 112101070211 | 3×150+70 | 1.4/1.1 | 0.5 | 0.8 | 1.72 | 43 | 2800 | 6000 | 2.0 | 1.88 | 46 | 3590 | 6790 |
| 112101080211 | 3×185+95 | 1.6/1.1 | 0.5 | 0.8 | 1.88 | 47 | 3400 | 7400 | 2.5 | 2.04 | 51 | 4675 | 8615 |
| 112101090211 | 3×240+120 | 1.7/1.2 | 0.6 | 0.8 | 2.04 | 53 | 4300 | 9500 | 2.5 | 2.20 | 56 | 5680 | 10485 |
| 112101100211 | 3×300+150 | 1.8/1.4 | 0.6 | 0.8 | 2.20 | 57 | 5000 | 11500 | 2.5 | 2.36 | 60 | 6685 | 12990 |
| 112101110211 | 3×400+185 | 2.0/1.6 | 0.7 | 0.8 | 2.52 | 66 | 6400 | 14500 | 3.2 | 2.68 | 71 | 8980 | 16980 |
| 112101120211 | 3×500+240 | 2.2/1.7 | 0.7 | 0.8 | 2.68 | 74 | 7900 | 18000 | 3.2 | 2.84 | 79 | 10985 | 21485 |
| 112101130211 | 3×630+300 | 2.4/1.8 | 0.7 | 0.8 | 3.00 | 82 | 9900 | 23000 | 4.0 | 3.00 | 88 | 14490 | 27985 |
