H05V-K & H07V-K

Application :-
  • Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as Stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.
Standard :-
  • DIN EN 50525-2-31, VDE 0285-525-2-31, BS EN 50525-2-31.
Technical Data :-
  • Voltage Rating : 0.5 to 1 mm² – 300 / 500V, 1.5 to 240 mm² – 450 / 750V
  • Temperature Range : -30°C to +70°C
  • Minimum Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx. diameter > 8 to 12 mm : 5 x outer diameter, Approx. diameter > 12 mm : 6 x outer diameter
  • Test Voltage : 2500V
Cable Construction :-

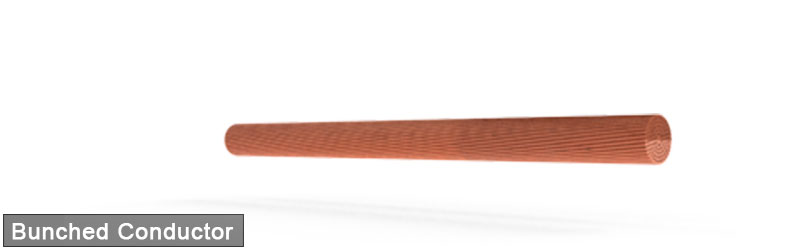

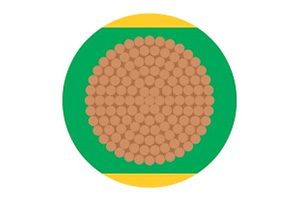

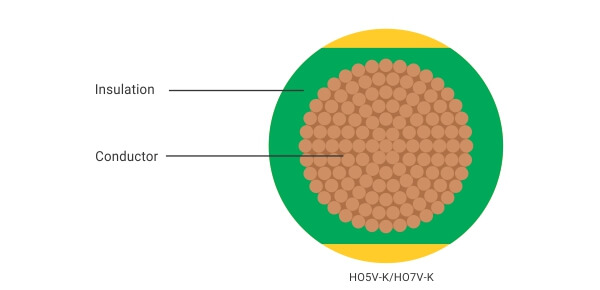

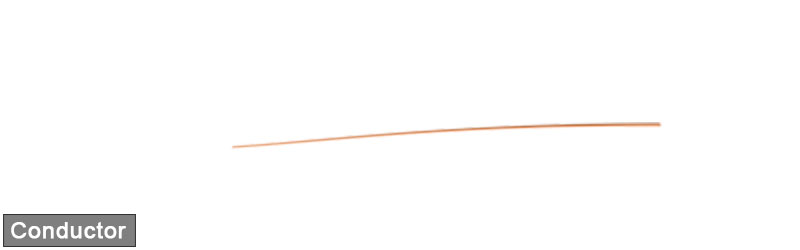

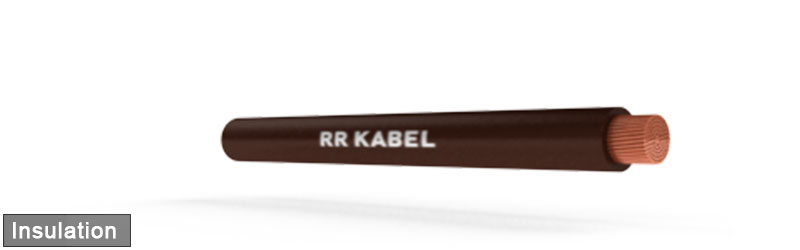

  • Conductor Class 5 flexible plain / metal coated stranded according to EN 60228. Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.
Properties :-
  • PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
  • By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
Nominal CrossSectional Area (Sq. mm)Nominal Thickness of Insulation (mm)Mean Overall DiameterApprox. Cable Weight (kg/km)
Lower Limit (mm)Upper Limit (mm)
-H05VK02020101xx1c0.50.62.12.59
02020102xx1c0.750.62.22.712
02020103xx1c1.00.62.42.815
-H07VK02020104xx1c1.50.72.83.421
02020105xx1c2.50.83.44.133
02020106xx1c40.83.94.847
02020107xx1c60.84.45.366
02020108xx1c101.05.76.8112
02020109xx1c161.06.78.1170
02020110xx1c251.28.410.2261
02020110xx1c251.28.410.2261
02020111xx1c351.29.711.7358
02020112xx1c501.411.513.9510
02020113xx1c701.413.216.0927
02020114xx1c951.615.118.2510
02020115xx1c1201.616.720.21170
02020116xx1c1501.818.622.51459
02020117xx1c1852.020.624.91776
02020118xx1c2402.223.528.42333
