Application :-

• Halogen-free cables for airports railway station, plant engineering and Industrial machinery, in EMC sensitive instruments

Standard :-

• Adapted to EN 50525-3-11.

Technical Data :-

• Nominal Voltage : U / U 300 / 500V O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : Flexing approx. 15 x cable ø. Fixed installation approx. 6 x cable ø
• Test Voltage : 4000V

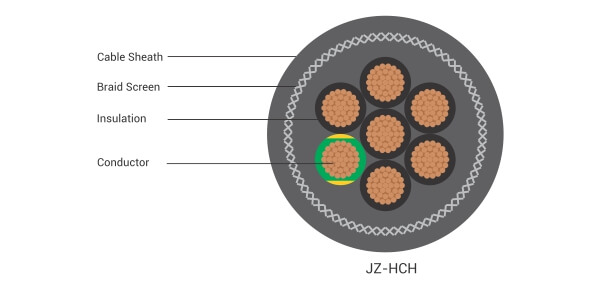

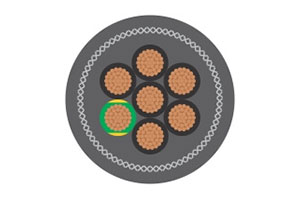

Cable Construction :-

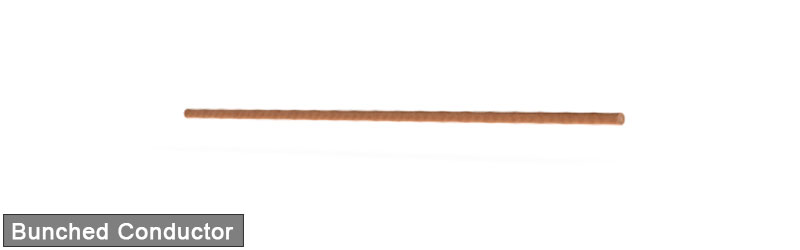

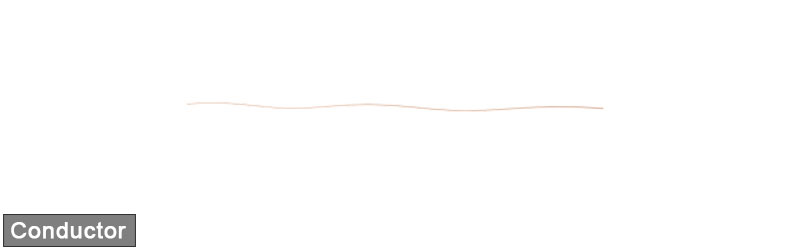

• Bare copper, fine wire conductors, to EN 60228 Cl. 5.

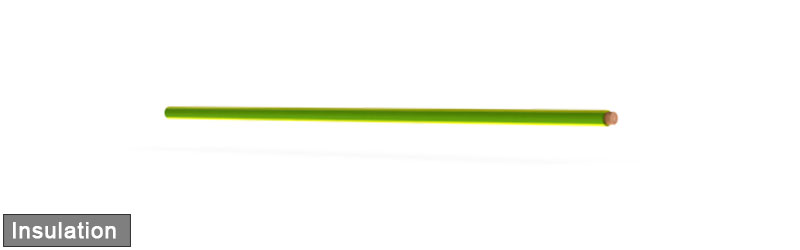

• Core insulation of halogen-free compound TI6 to EN 50363-7.
• Black colour with white numbers DIN VDE 0293.
• Green/Yellow earth core in outer layer.

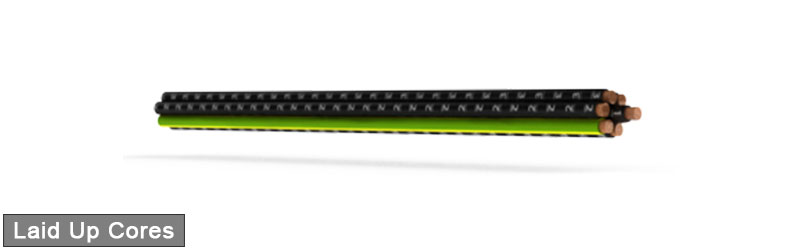

• Cores stranded in layers with optimal lay-length.
• Halogen free inner sheath in Grey.

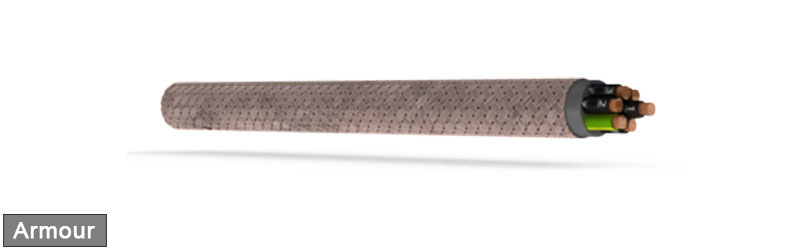

• Tinned-copper braided screen, approx. 85% coverage.

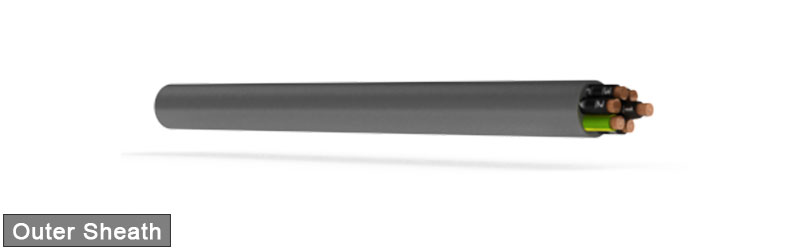

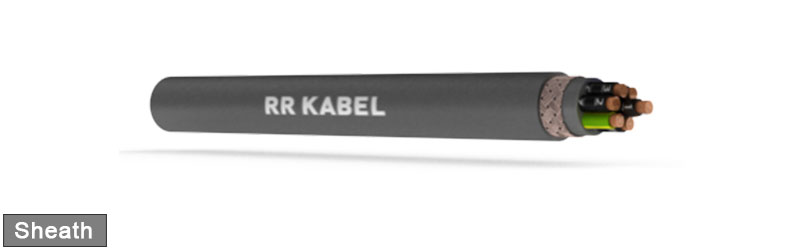

• Halogen-Free sheath compound TM7, to EN 50363-8.
• Outer jacket colour grey (RAL 7001).
• LSOH : Low Smoke Zero Halogen-Free.

Cable Design Parameters :-
