JZ-H

Application :-
  • Halogen-free cables for airports railway station, plant engineering and Industrial machinery, in EMC sensitive instruments
Standard :-
  • Adapted to EN 50525-3-11.
Technical Data :-
  • Nominal Voltage : U / U 300 / 500V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing approx. 10 x cable ø. Fixed installation approx. 4 x cable ø
  • Test Voltage : 4000V

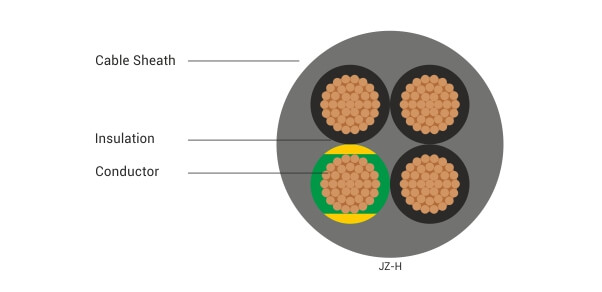

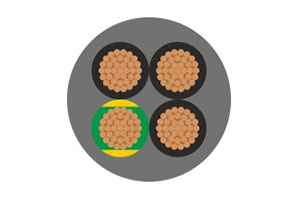

Cable Construction :-

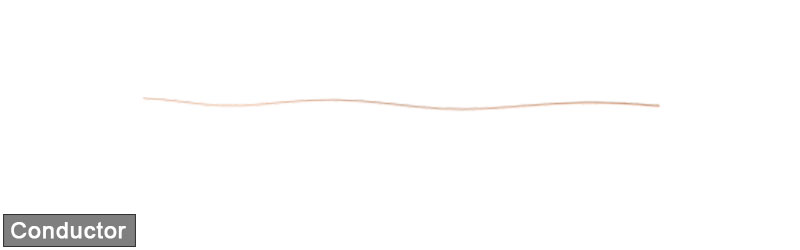

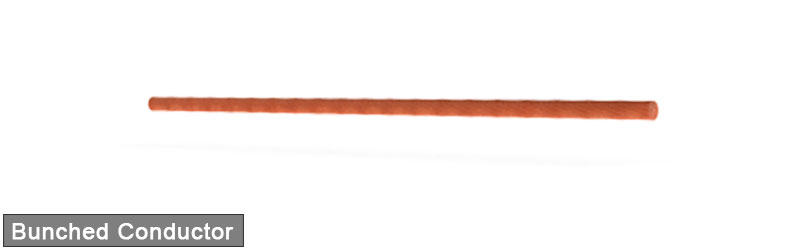

  • Bare copper, fine wire conductors, to EN 60228 Cl. 5.

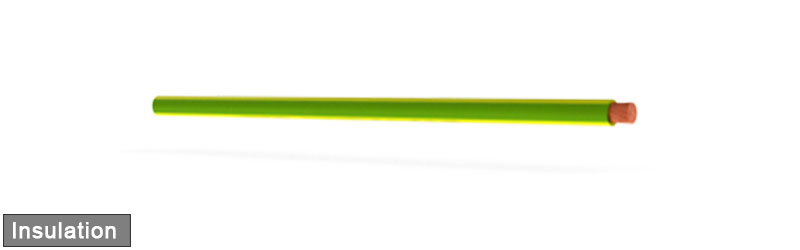

  • Core insulation of halogen-free compound TI6 to EN 50363-7.
  • Black colour with white numbers DIN VDE 0293.
  • Green/Yellow earth core in outer layer.

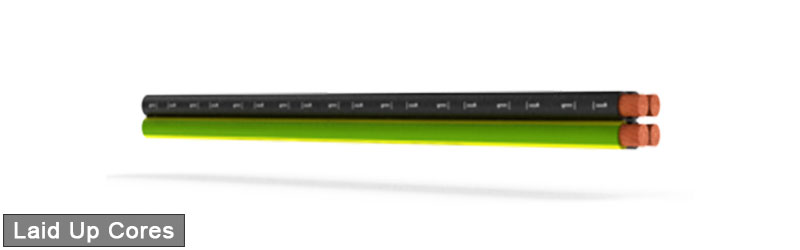

  • Cores stranded in layers with optimal lay-length.

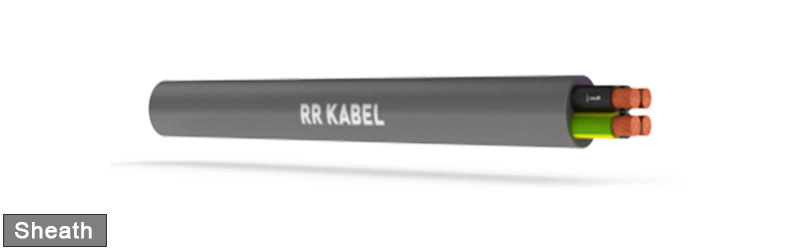

  • Halogen-Free sheath compound TM7, to EN 50363-8.
  • Outer jacket colour grey (RAL 7001).
  • LSOH : Low Smoke Zero Halogen-Free.
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0318002010502 x 0.54.88.734
0318003110503G 0.55.113.041
0318003010503 x 0.55.113.041
0318004110504G 0.55.617.450
0318004010504 x 0.55.617.450
0318005110505G 0.56.021.760
0318007110507G 0.56.730.478
03180121105012G 0.58.952.2136
0318002010752 x 0.755.313.043
0318003110753G 0.755.619.653
0318003010753 x 0.755.619.653
0318004110754G 0.756.126.165
0318004010754 x 0.756.126.165
0318005110755G 0.756.932.683
0318005010755 x 0.756.932.683
0318007110757G 0.757.645.6105
0318007010757 x 0.757.645.6105
0318009110759G 0.759.858.7160
03180121107512G 0.7510.178.2185
03180181107518G 0.7511.9117.3264
03180251107525G 0.7514.6163.0385
0318002000012 x 15.617.451
0318003100013G 16.026.164
0318003000013 x 16.026.164
0318004100014G 16.834.884
0318004000014 x 16.834.884
0318005100015G 17.543.5101
0318007100017G 18.960.8143
0318008100018G 19.769.5169
03180121000112G 111.1104.3231
03180141000114G 111.7121.7262
03180181000118G 113.2156.5334
03180251000125G 116.2217.3488
03180411000141G 119.7356.4749
0318002011052 x 1.56.325.567
0318003111053G 1.56.738.284
0318003011053 x 1.56.738.284
0318004111054G 1.57.350.9105
0318005111055G 1.58.263.7132
0318007111057G 1.59.089.1169
0318008111058G 1.510.6101.9216
0318009111059G 1.511.5114.6250
03180121110512G 1.512.1152.8299
03180141110514G 1.512.9178.3344
03180181110518G 1.514.5229.2437
03180251110525G 1.517.2318.3612
03180341110534G 1.519.8432.9820
0318002012052 x 2.57.642.4103
0318003112053G 2.58.363.7134
0318004112054G 2.59.184.9168
0318005112055G 2.510.2106.1210
0318007112057G 2.511.2148.5271
03180121120512G 2.514.8254.6469
0318004100044G 410.8135.0250
0318005100045G 412.1168.7312
0318007100047G 413.3236.2405
0318004100064G 613.0202.4367
0318005100065G 614.5253.1458
0318007100067G 616.0354.3596
0318004100104G 1015.5344.7570
0318005100105G 1017.1430.8703
0318004100164G 1618.8574.1896
0318005100165G 1621.0717.71119
0318004100254G 2523.4893.11391
0318005100255G 2525.81116.31717
0318004100354G 3526.41257.61872
