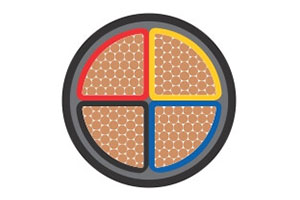

A2XY/2XY-4 CORE

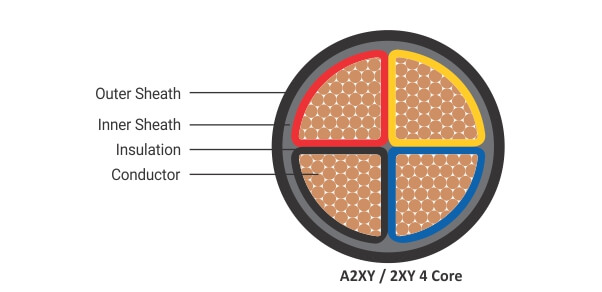

Cable Construction :-
  • 1.1 kV, 4 cores AL /CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1.

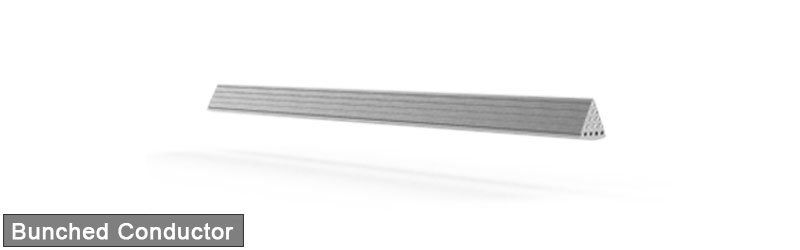

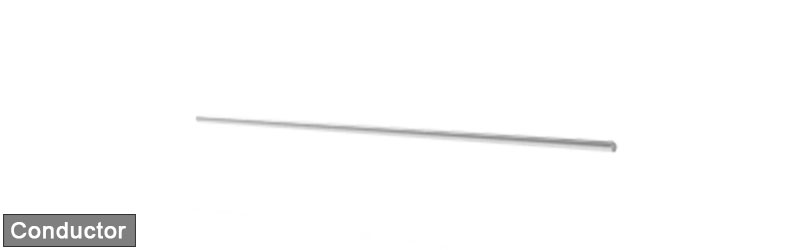

  • Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130
  • In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl.2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130.
  • Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130

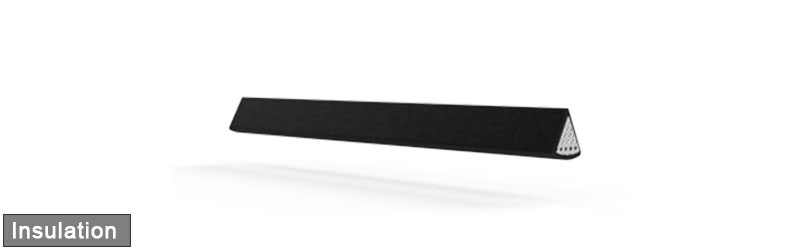

  • Insulation Material : Crosslinked polyethylene (XLPE)

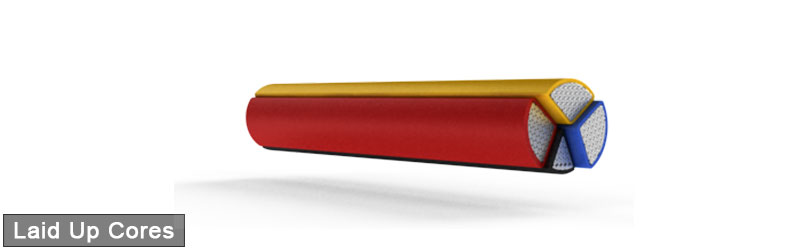

  • Core Colours : Red, yellow, blue, black

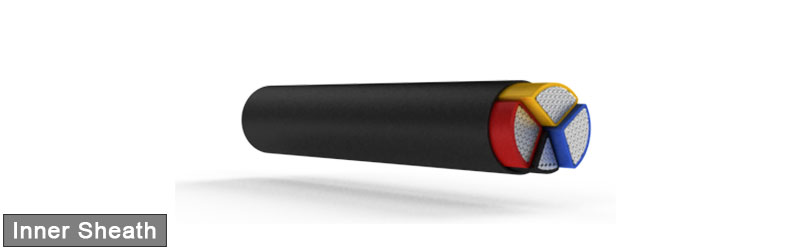

  • Inner Sheath : PVC / PVC tape as per IS 7098 (P – 1)

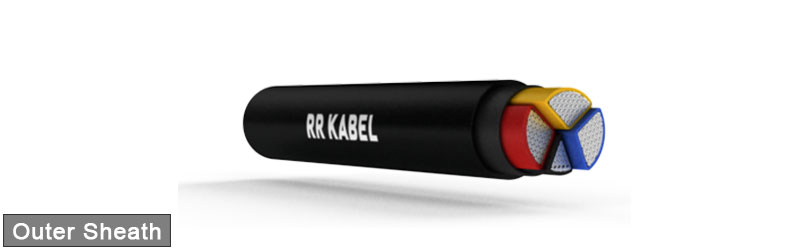

  • Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2). Sheath Type – PVC Type ST – 2 (FR or FRLS).
Part NumberNominal Cross Sectional Area(Sq. mm)Nominal Thickness of Insulation(mm)Minimum Thickness of Inner Sheath(mm)Nominal Thicknessof Outer Sheath(mm)Approx.Overall Diameter(mm)Approx. Net Wt. of Cable (kg/km)
AL Cable A2XYCU Cable 2XY
11170040000440.70.31.816225340
11170040000660.70.31.817315480
111700400010100.70.31.819370640
111700400016160.70.31.820440840
111700400025250.90.32.0246501290
111700400035350.90.32.0267801685
111700400050501.00.32.0299852190
111700400070701.10.42.23413803090
111700400095951.10.42.23716853980
1117004001201201.20.52.44121255130
1117004001501501.40.52.64526306230
1117004001851851.60.52.85032307830
1117004002402401.70.63.05640809980
1117004003003001.80.73.263503012030
1117004004004002.00.73.670638515980
1117004005005002.20.73.879798019985
1117004006306302.40.74.088998525985
