Our Products

SPEAKER CABLE

Application :-
  • Speaker cables are highly recommended for use in connecting speakers, public address system for clear and distortion free voice with low dB loss.
Cable Construction :-

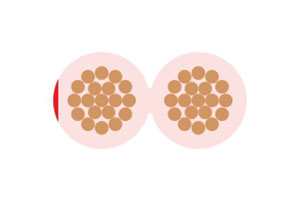

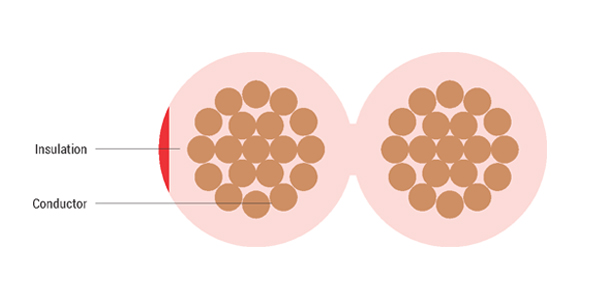

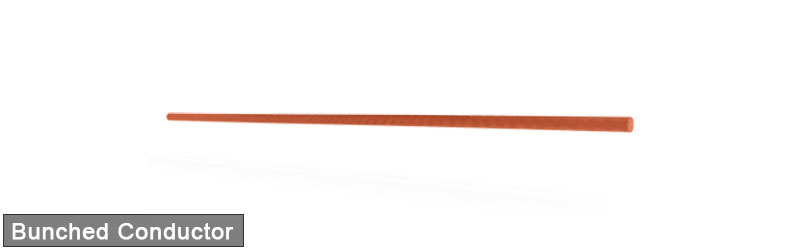

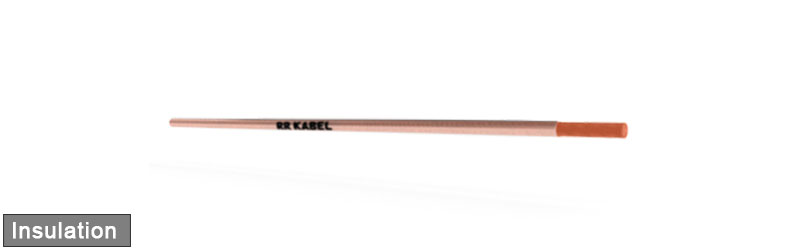

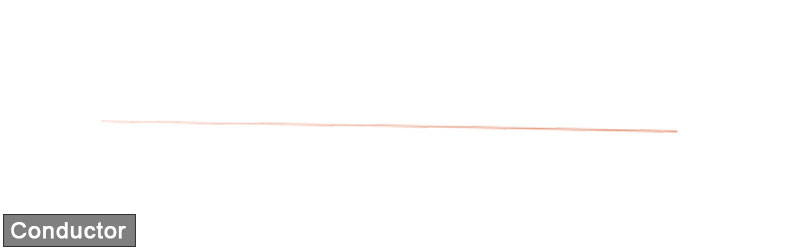

  • The cables are manufactured with bright annealed plain flexible electrolytic grade copper conductor, bunched compactly, insulated with specially formulated PVC compound. Each core is uniquely designed for easy identification. In order to offer uniform capacitance throughout length the distance between the two conductors is maintained uniformly.
  • Colour Availability : Transparent / black / white with red tracer for polarity identification. Also available in grey.
  • Packing : The delivery length is available in 100 mtr. coils Cable Design Parameters
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for colour required: 00 – Transparent, 02 – black, 07 – white, 12 – grey
TypeCAT 5eCAT 6
Part Number010701014094010701014194
Recommended length :-
Wire Size2Ω load4Ω load6Ω load8Ω load
22 AWG3ft (0.9m)6ft (1.8m)9ft (2.7m)12ft (3.6m)
19 AWG5ft (1.5m)10ft (3m)15ft (4.5m)20ft (6m)
18 AWG8ft (2.4m)16ft (4.9m))24ft (7.3m)32ft (9.7m)
16 AWG12ft (3.6m)24ft (7.3m)36ft (11m)48ft (15m)
14 AWG20ft (6.1m)40ft (12m)60ft (18m)80ft (24m)
12 AWG30ft (9.1m)60ft (18m)90ft (27m)120ft (36m)
10 AWG50ft (15m)100ft (30m)150ft (46m)200ft (61m)
