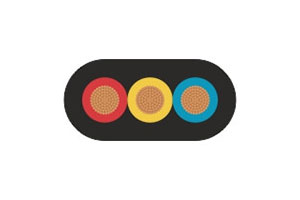

XLPE/PVC SUBMERSIBLE FLAT CABLE 1.1 KV

Application :-
  • These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.

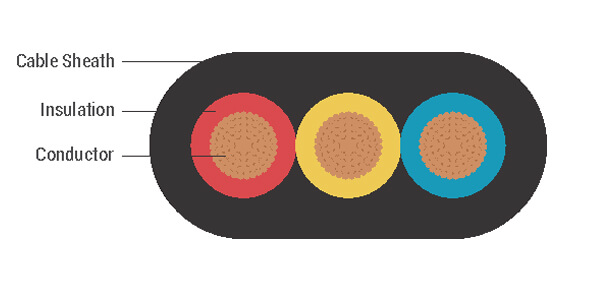

Specifications :-

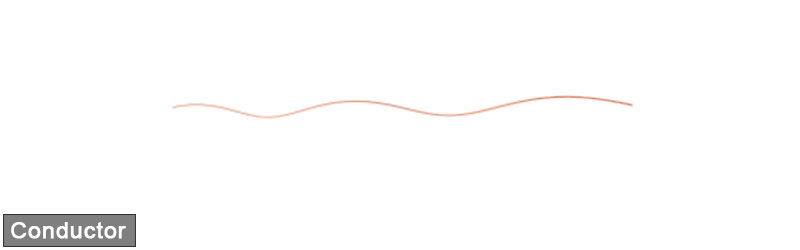

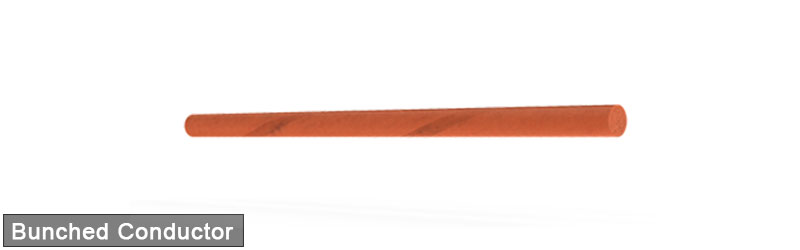

  • Conductor : Electrolytic grade annealed plain copper to EN 60228, uniformly bunched to form a circular shape

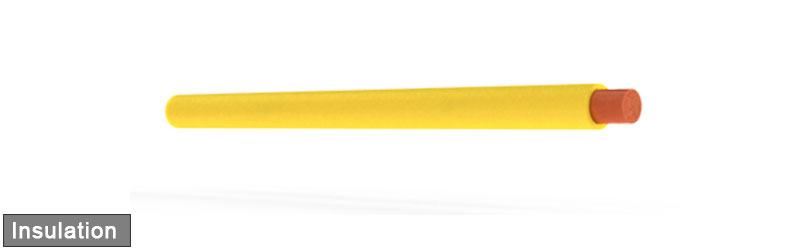

  • Insulation : Cross linked polyethylene XLPE

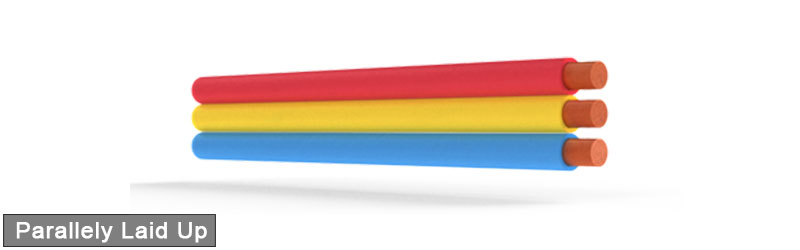

  • Core Colours : Red, yellow (centre core), blue

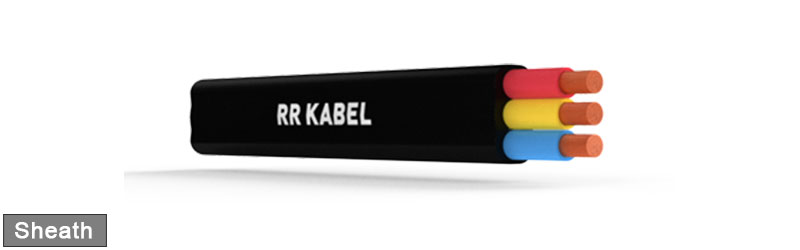

  • Sheath : PVC Type ST2 IEC 60502-1 with excellent water resistant properties
  • Sheath Colour : Black
Variants Available :-
Product TypeSpecifications
XLPE/PVCClass 2 (1 to 2.5 Sq. mm) for others class 5 to EN 60228, XLPE insulation & PVC ST-2 sheath
Cable Design Parameters :-
Part NumberConductor ConstructionMax. Conductor Resistance at 20OC (Ω/km)Nominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Approx. Overall Dimensions (W x H) (mm) +/- 0.5 mmCurrent Carrying Capacity (Amp.)
Nominal Cross Sectional Area (Sq. mm)No. of Strands/Max. Strands Dia. (mm)
011910300001114/0.318.10.71.010.6 X 5.212
0119103011051.522/0.312.10.71.011.6 X 5.520
0119103012052.536/0.37.410.71.113.1 X 6.230
011910300004456/0.34.950.81.115.0 X 6.837
011910300006684/0.33.300.81.217.2 X 7.746
01191030001010140/0.31.910.81.320.2 X 8.866
01191030001616126/0.41.210.81.423.6 X 10.085
01191030002525196/0.40.781.01.528.9 X 12.0113
01191030003535276/0.40.5541.01.632.7 X 13.4139
01191030005050396/0.40.3861.21.738.7 X 15.5156
