RE-Y(St)Y PiMF – MULTI-PAIR

Applications :-
  • Adapted to EN 50288-7.

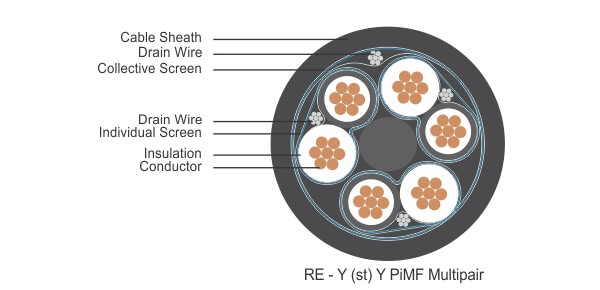

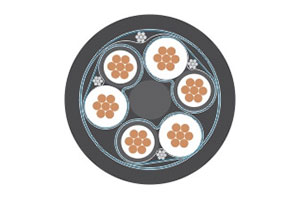

Cable Construction :-

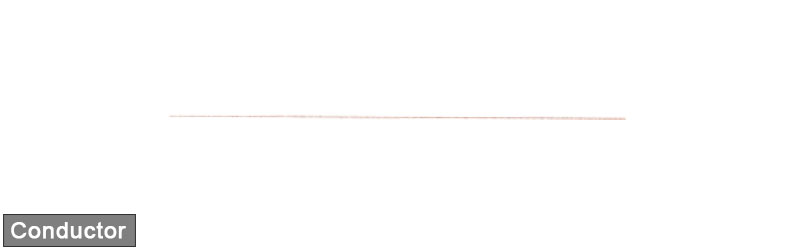

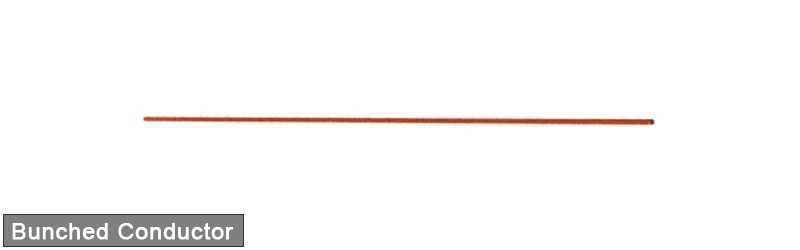

  • Conductor : Annealed copper wires according to BS EN 60228

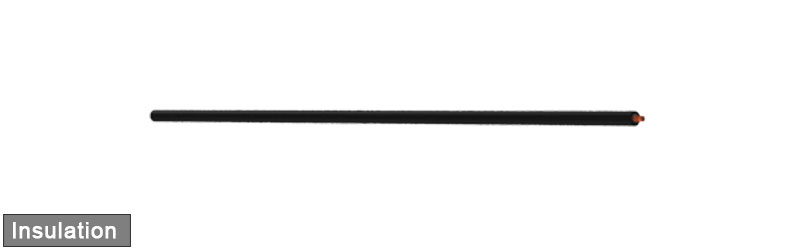

  • Insulation : Polyvinyl chloride PVC

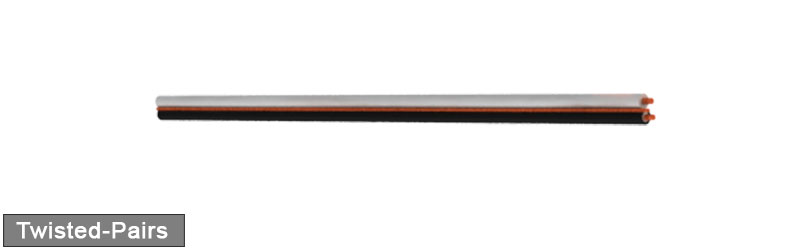

  • Pairs : Twisted
  • Identification Pairs : Black & white, continuously numbered on white core (1, 2, 3…) for multi-element

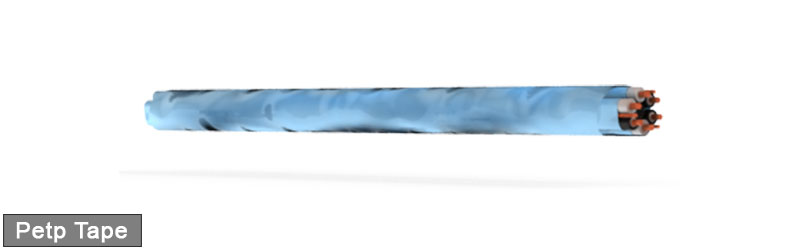

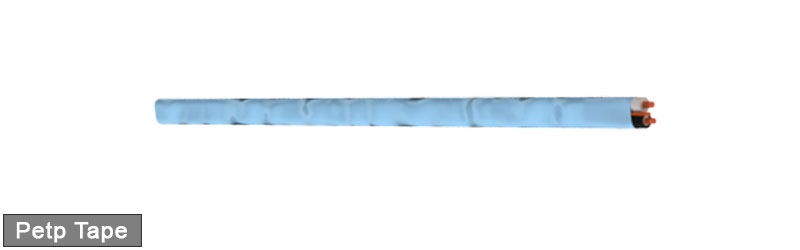

  • Individual Screen : Aluminium / PETP tape over tinned copper drain wire, plastic tape under and above screen

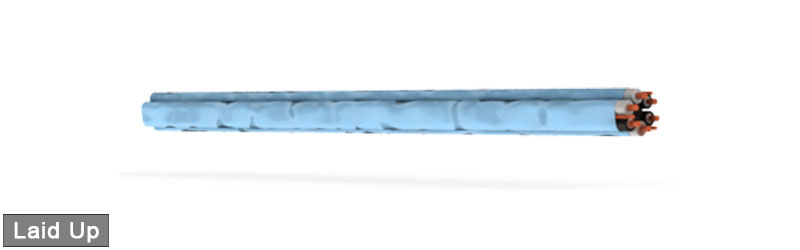

  • Assembly : Concentric layers
  • Collective Screen : Aluminium / PETP tape over tinned copper drain wire
  • Cable Sheath : Polyvinyl Chloride PVC
  • Colour : Black. Blue for intrinsically safe system
Technical Data :-
  • Flame Propagation : EN 60332-1-2
  • Operating Temperature Range : -30°C to +70°C
  • Bending Radius : 7.5 x cable diameter
  • Operating Voltage : 500V
  • *Also available in 300V variant on request
  • Marking : RR KABEL n x m x a RE-Y(St)Y 500V EN 50288-7 CE + 0001m
  • n – No. of pairs, m – Pairs, a – Cross sectional area
Electrical Properties :-
Conductor Cross Section (Sq.mm)Class of ConductorNo. of Strands/Max. Strand Diameter (mm)Max. DC Conductor Resistance* at 20°C (Ω/km)Max.L/R Ratio (μH/Ω)Min. Insulation Resistance (GΩ x cm)Max. Mutual Capacitance (nF/km)Max.Inductance (mH/km)Test Voltage Vrms (Core-Core)Test Voltage Vrms (Core-Screen)
0.527/0.336.72520250120002000
0.5516/0.239.82520250120002000
0.7527/0.3725.02520250120002000
0.75524/0.226.52520250120002000
127/0.4318.52520250120002000
1532/0.219.92520250120002000
1.527/0.5312.34020250120002000
2.527/0.677.66020250120002000
