Applications :-

• These are standard wall auto cables ideal for use in automotive and marine.

Standard :-

• In accordance with ISO 6722.

Specifications :-

• Voltage Rating : 60V DC, 25V AC (Suitable for 12V and 24V systems)
• Temperature Range : -40°C to +105°C (3000 hours)

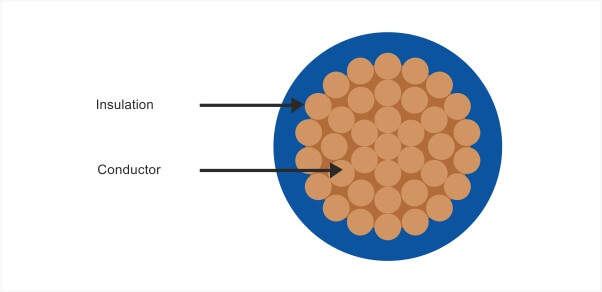

Cable Construction :-

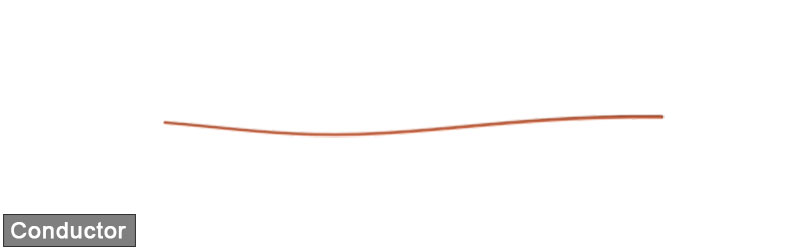

• Soft annealed electrolytic copper Cu-ETP according to DIN EN 13602.

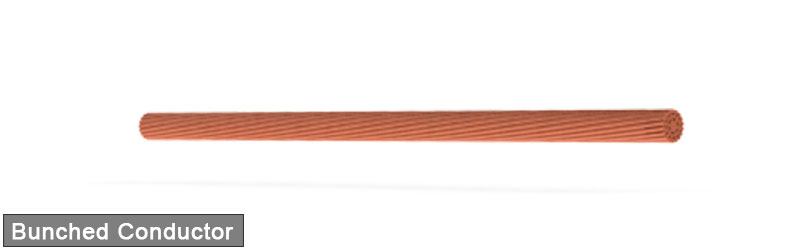

• Conductor construction according to ISO 6722.

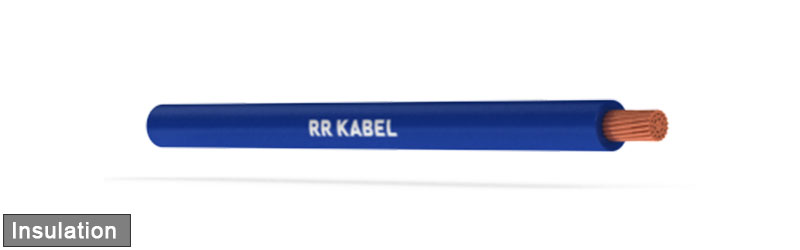

• PVC insulation, Cl. B to ISO 6722.
• Packing : Packing available in 100 mtr.
• Longer length in spools or wooden drums

Cable Design Parameters :-

• Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required as per the list: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
