SiHF-GLS

Applications :-
  • These are silicone multicore cables screened with braiding for use at the areas where extreme temperature changes. Silicone cables are halogen – free cables and are especially suited for installation in power stations. They have also found their use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insulation, these are used as flexible connection cable.
Standard :-
  • Adapted to DIN VDE 0250 part 1 and part 816.
Specifications :-
  • Voltage Rating : U / U – 300 / 500V O
  • Test Voltage : 2000V
  • Temperature Range : -50°C to +180°C (up to + 200°C for short time with adequate ventilation)
  • Temperature Limit at the Conductor : In operation +180°C
  • Insulation Resistance : Min. 200 MΩ x km
  • Minimum Bending Radius : Flexing 10 x cable ø. Fixed Installation 5 x cable ø

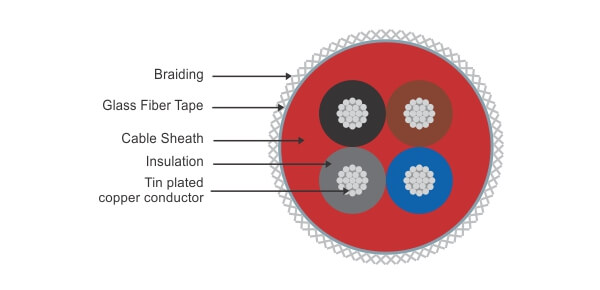

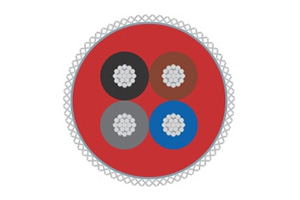

Cable Construction :-

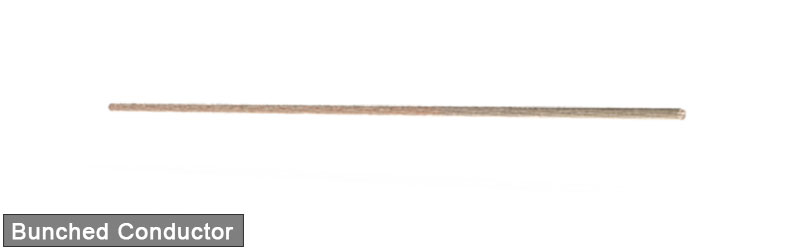

  • Tinned copper conductor to Cl. 5, EN 60228.

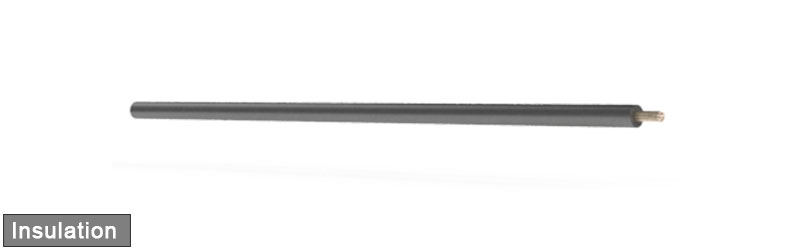

  • Silicone core insulation.
  • Core identification to DIN VDE 0293 – 308 colour coded or black cores with continuous white numbers.
  • For 2 – cores brown, blue., For 3 – cores and above cable provided without protective conductor., For 6 – cores and above all black cores with number coding.

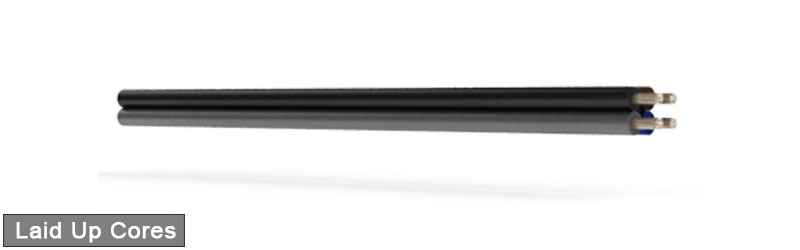

  • Cores stranded in layers with optimal lay – length.

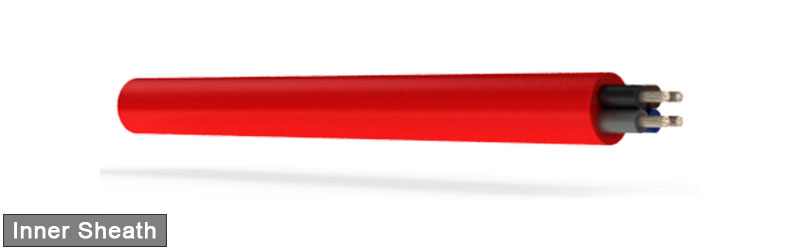

  • Outer jacket of Silicone.
  • Jacket colour preferably red brown.

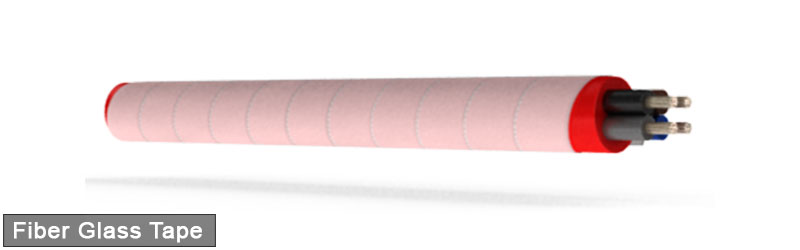

  • Glass fibre tape over the jacket.

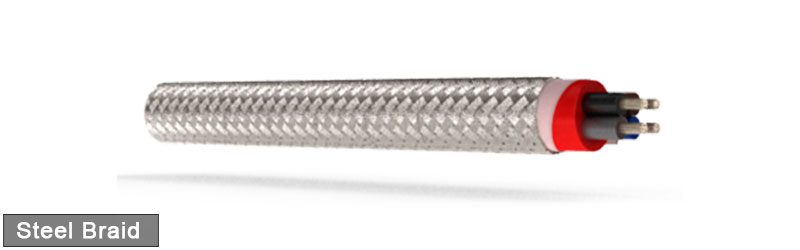

  • Galvanised steel wire outer braiding.
Cable Design Parameters :-
Part NumberNominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
80400201075 2 x 0.757.61394
80400311075 3 x 0.75819.6102
80400411075 4 x 0.758.626.1121
80400511075 5 x 0.759.332.6134
80400711075 7 x 0.7510.345.6159
80400200001 2 x 17.817.4103
80400310001 3 x 18.226.1112
80400410001 4 x 18.934.8131
80400510001 5 x 19.643.5148
80400710001 7 x 110.660.8180
80400201105 2 x 1.58.725.5124
80400311105 3 x 1.59.238.2142
80400411105 4 x 1.59.950.9162
80400511105 5 x 1.510.763.7189
80400711105 7 x 1.511.989.1229
80401211105 12 x 1.515.3152.8355
80400201205 2 x 2.51042.4167
80400311205 3 x 2.510.663.7191
80400411205 4 x 2.511.584.9224
80400511205 5 x 2.512.5106.1260
80400711205 7 x 2.513.9148.5321
80400200004 2 x 411.867.5234
80400300004 3 x 412.5101.2269
80400400004 4 x 414135329
80400500004 5 x 415.1168.7385
80400200006 2 x 614.2101.2324
80400300006 3 x 615151.8376
