YY/YFY/YWY-2.5 Sq. mm

Cable Construction :-
  • 1.1 kV, 2.5 Sq. mm copper conductor, PVC insulated unarmoured & galvanised steel strip / wire armoured control cables as per IS 1554 Part – 1.

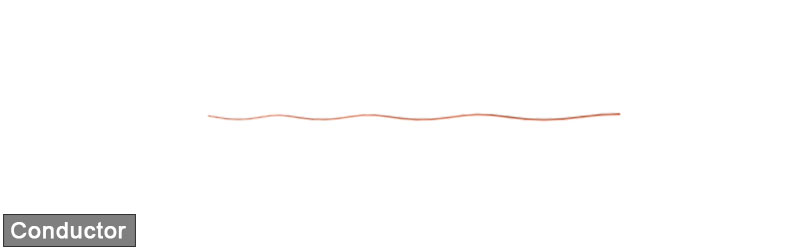

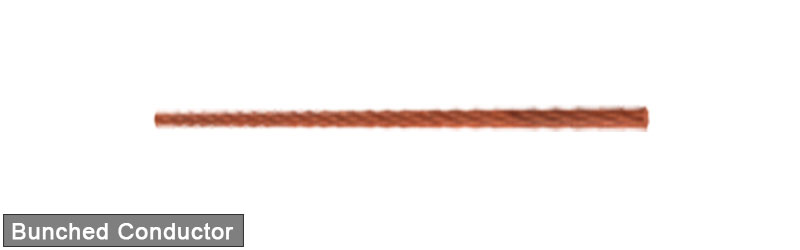

  • Conductor : CU conductor solid as per Cl .1 IS 8130 or stranded as per Cl. 2 IS 8130

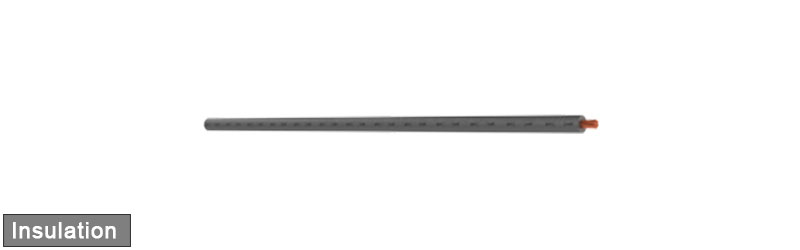

  • Insulation Material : PVC Type – A as per IS 5831 / Option : HR PVC (Type – C ) as per IS 5831. Nominal Thickness of Insulation is 0.8 mm.

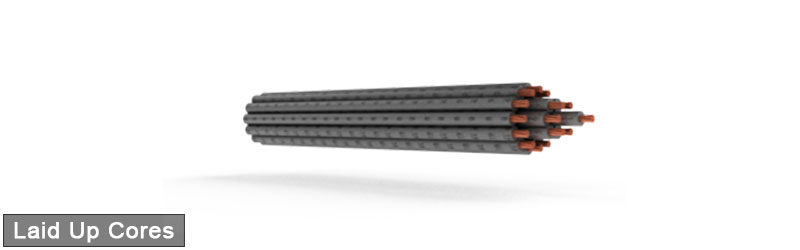

  • Core Colours : Up to 5 cores by colour coding & more than 5 cores number printing on core as per IS 1554 (P-1)

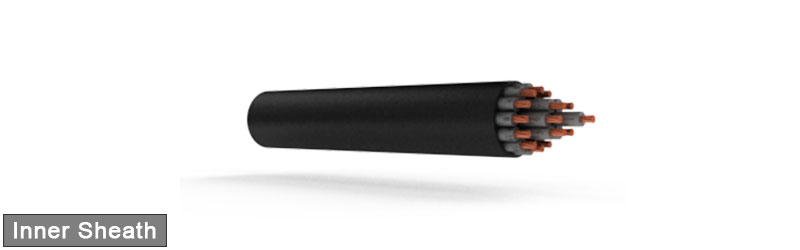

  • Inner Sheath : PVC / PVC tape as per IS 1554 (P – 1)

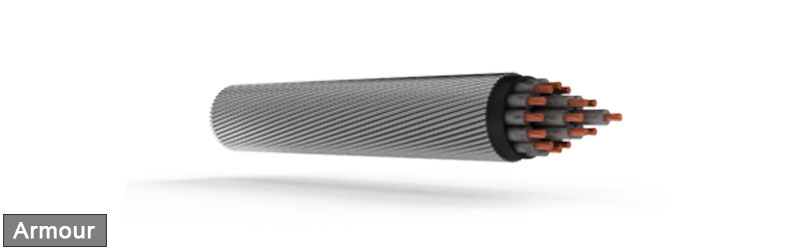

  • Armouring : Single armouring of galvanised steel strip / wire

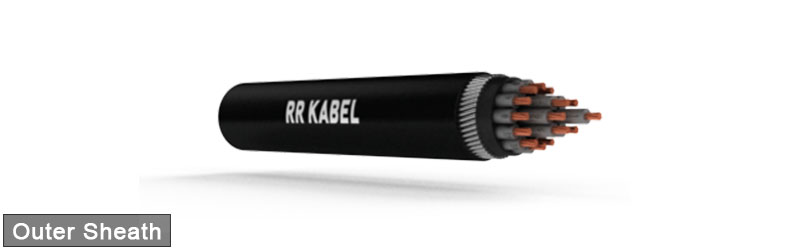

  • Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type ST – 2 as per IS 5831, FR Type / FRLS Type)
  • Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters :-
  • While ordering, in addition to the part number the following details shall also be advised: Class of conductor – Cl. 1 or 2. Insulation Type – PVC Type A / C. Sheath Type – PVC Type ST – 1 / FR / FRLS; PVC Type ST – 2 / FR / FRLS.
PartNumberNo.of CoresMinimum Thickness of Inner Sheath (mm)Armouring with Flat AL Strip (AYFaY/YFaY)Armouring with Round Wire (AYWaY/YWaY)Armoured With Round Wire (YWY)
Nominal Thick. of Arm. Strip (mm)Approx. Overall Dia. (mm)Approx. Net Wt.of Cable(kg/km)Nominal Thickness of Stripfor Arm.(mm)Minimum Thick. of Out. Sheath (mm)Approx. Overall Dia. (mm)Approx Net Wtof Cable (kg/km)Nominal Thickness of Stripfor Arm. (mm)Minimum Thickness of Outer Sheath (mm)Approx. Overall Dia. (mm)Approx. Net Wt. (kg/km)
11120020120520.31.813220N/AN/AN/AN/A1.41.2414440
11120030120530.31.814260N/AN/AN/AN/A1.41.2415480
11120040120540.31.815310N/AN/AN/AN/A1.41.2416560
11120050120550.31.816340N/AN/AN/AN/A1.41.2417600
11120060120560.31.817390N/AN/AN/AN/A1.41.2419685
11120070120570.31.817424N/AN/AN/AN/A1.61.2419720
111201001205100.31.8205700.81.40218501.61.40231040
111201201205120.32.0216700.81.40229501.61.40241130
111201401205140.32.0227500.81.402310501.61.40251080
111201601205160.32.0248400.81.402411201.61.40261180
111201901205190.32.0259500.81.402512501.61.40271340
111202401205240.32.02812000.81.402915501.61.56311680
111202701205270.32.02913000.81.403016501.61.56321840
111203001205300.32.03014000.81.563118001.61.56331985
111203701205370.42.23317000.81.563421002.01.56362580
111204001205400.42.23418500.81.563523002.01.56372740
111204401205440.42.23620000.81.563725002.01.56402980
111205201205520.42.23823500.81.563928502.01.72423380
111206101205610.42.24027000.81.564132502.01.72443780
