CCTV CAMERA CABLE

Application :-
  • These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance. This cable is offered in two variants viz., 4+1 and 3+1 CCTV Camera cable.
Properties :-

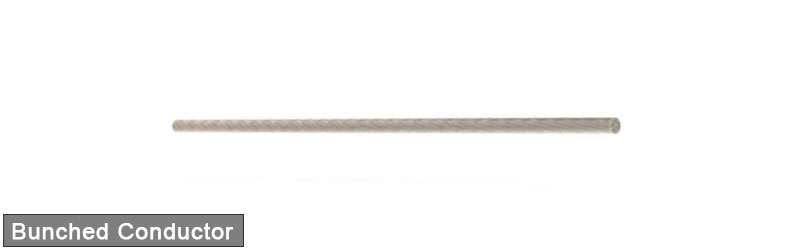

  • CCTV cables are designed to optimize the quality of video signals. The dense tin coated copper screen ensures complete elimination of EMI/RFI from video signals and also provides reduced DC resistance ground path. The multi stranded construction offers better flexibility and reduced bending radius.

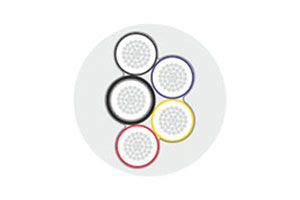

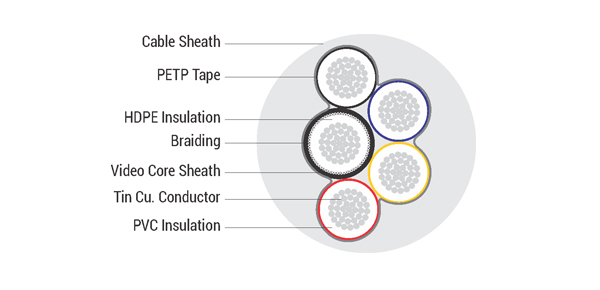

Cable Construction :-
  • Screened Core for Video signal

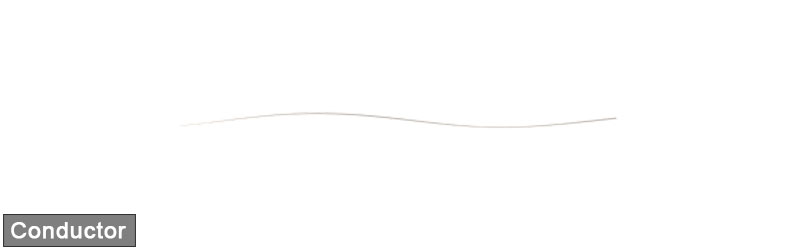

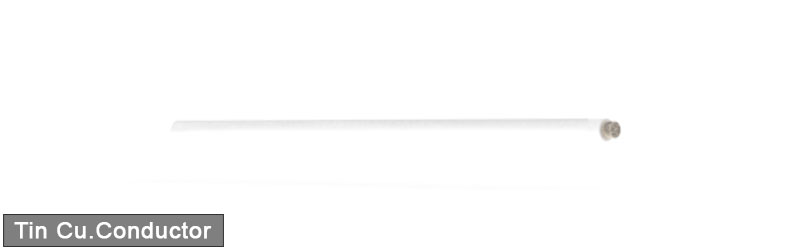

  • Conductor : The central conductor is made of fine wires tin coated electrolytic grade copper

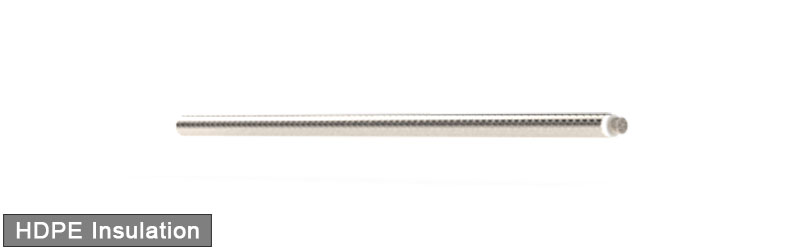

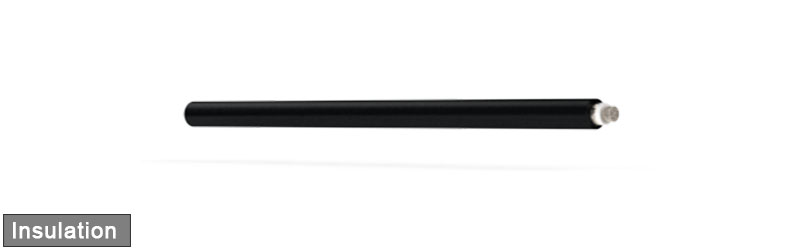

  • Insulation : The insulation provided over the conductor is of HDPE with high dielectric strength and low capacitance
  • Screen : Annealed tin coated copper 85% coverage approx

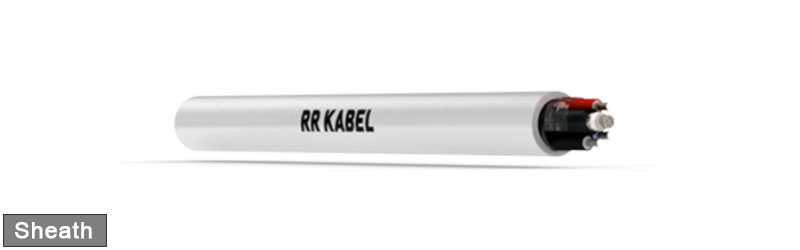

  • Sheath : Black colored PVC Power Cores
  • Cable Colour : White. Black with UV resistance to ASTM G 154
Cable Design Parameters :-
Part NumberCable TypeCable Size (Sq. mm)Nominal Cable Diameter (mm)Power Core Colour
010801010795CCTV Cable 4+14C + 1C x 0.256.8RD, YL, BK, GN
010801020795CCTV Cable 3+13C + 1C x 0.256.8RD, BK, GN
