Application :-

• For use as a data and control cable in machinery, computer systems etC as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses. The PVC-inner sheaths of those cables raise the mechanical stress. Such cables can also be used for outdoor applications for the permitted temperature range.

Technical Data :-

• Standard : Adapted to EN 50525-2-51
• Nominal Voltage : U / U 300 / 500 V O
• Insulation Resistance : Min. 20 GΩ x cm
• Temperature Range : Flexing -5°C to +70°C.
• Fixed installation -30°C to +70°C
• Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø
• Test Voltage : 4000V

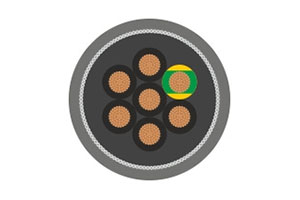

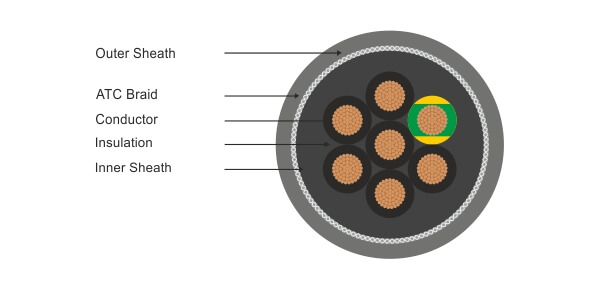

Cable Construction :-

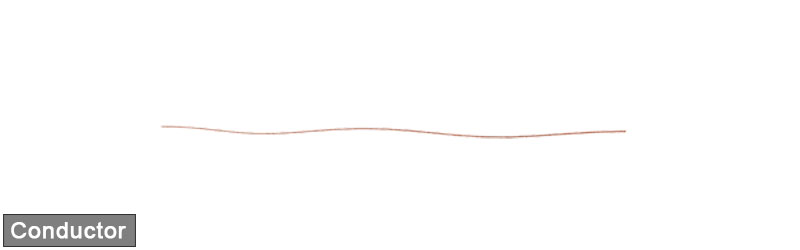

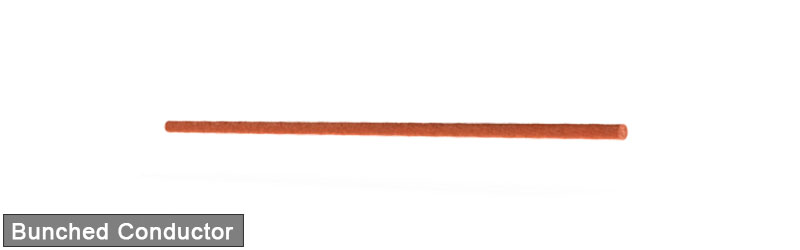

• Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.
• Core insulation of PVC TI2, EN 50363-3.
• Black core with continuous white numbering to DIN VDE 0293.
• Green/yellow earth core in outer layer (3 cores and above).

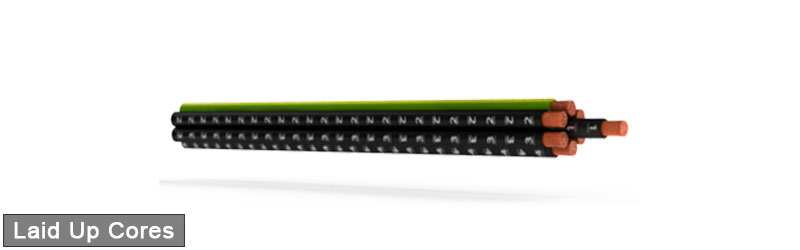

• Cores stranded in layers with optimal lay-length.

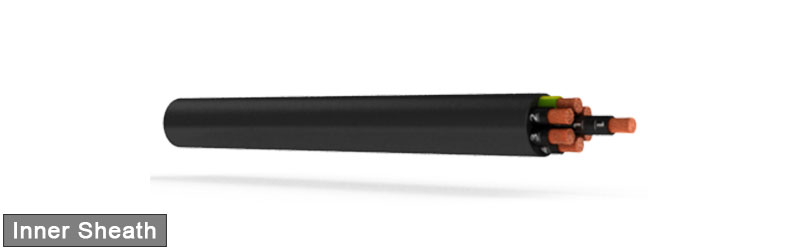

• Special PVC inner jacket.

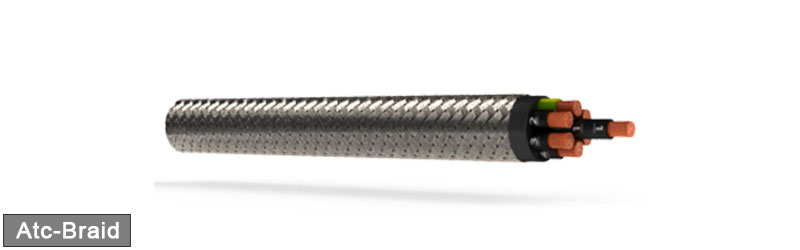

• Tinned copper braided screen.

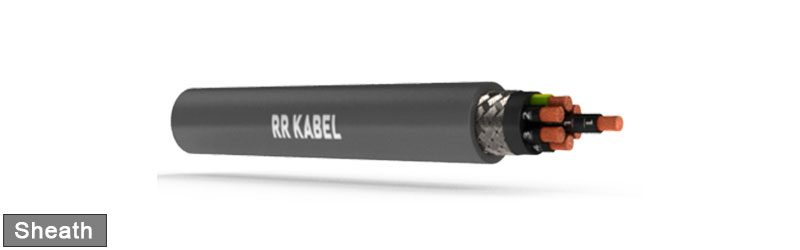

• Special polyurethane outer sheath (PUR).
• Sheath colour : Grey (RAL 7001).
