6181Y – BS 6004

Application :-
  • The cables are suitable for power and lighting circuits and building wiring suitable for use in semi flush exposed conduits, embedded conduits and in closed installation ducts. Ideal for internal wiring of appliance.
Standard :-
  • BS 6004 : 2012.
Specifications :-
  • Voltage Rating : 1.5 mm2 to 35 mm2 – 300 / 500V
  • Temperature Range : -15°C to 70 °C
  • Upto 10 mm2 : 10 X Overall Diameter.
  • 16 & 35 mm2 : 12 X Overall Diameter.

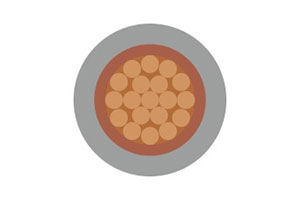

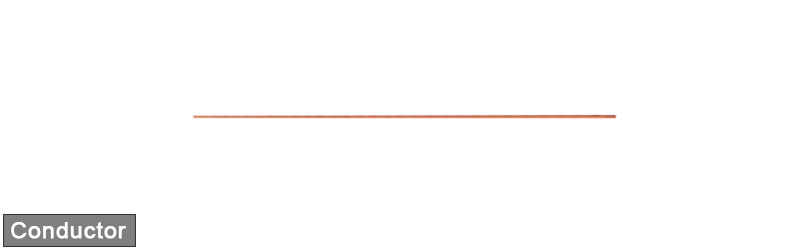

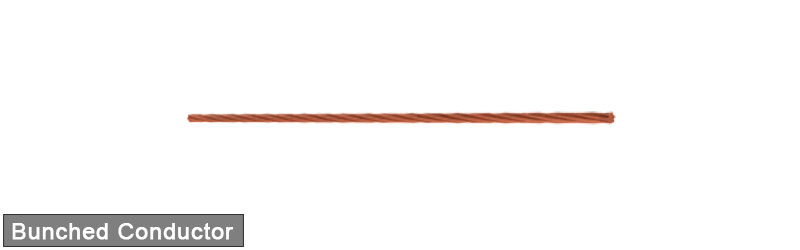

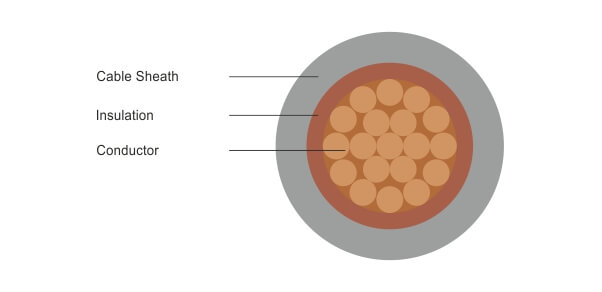

  • Plain annealed copper conductor:1.5 & 2.5mm 2 Class-1, 4.0 to 35mm 2 stranded Class 2 complying with BSEN60228,HD383, IEC60228.

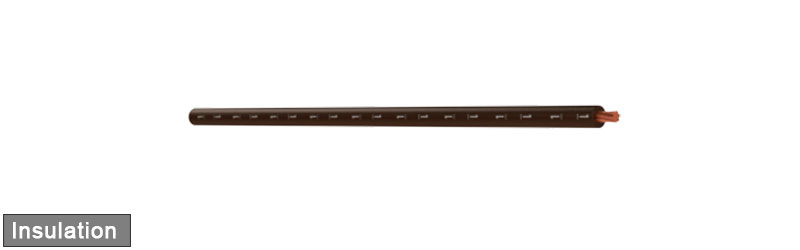

  • Insulation : PVC (Polyvinyl Chloride ) compound type TI 1 complying with EN 50363-3

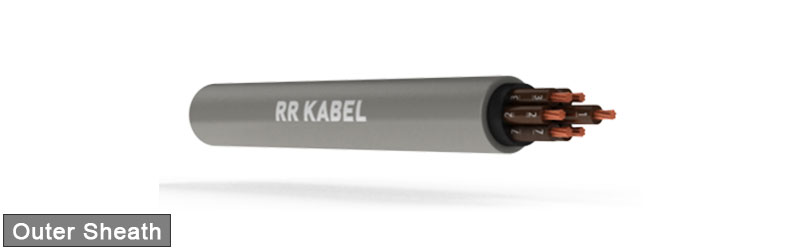

  • Sheath : PVC (Polyvinyl Chloride ) compound type Type 6 complying with EN 50363-3
  • Insulation Colours : Blue and brown
  • Sheath Colour : Grey RAL 7001
Cable Design Parameters :-
  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.
Part NumberNominal Cross Sectional Area (Sq. mm)Nominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Overall Diameter Lower Limit (mm)Overall Diameter Upper Limit (mm)Approx. Net Weight (kg/km)
01150101xx101.50.700.84.205.0037
01150102xx102.50.800.84.805.7051
01150103xx1040.800.95.506.7075
01150104xx1060.800.96.007.3098
01150105xx10101.000.97.308.80152
01150106xx10161.001.08.4010.10220
01150107xx10251.201.110.0012.10336
01150108xx10351.201.111.1013.50353
