SERVO FD 80785 P

Application :-
  • Connecting between the frequency convertor and the motor for power circuits in machine cabling. In dry damp or wet interiors with normal mechanical stress conditions. For outdoor usage within the permitted range of temperature.
Technical Data :-
  • Standard : Adapted toVDE 0250/0281 / 0282
  • Nominal Voltage : UO / U 600 / 1000V. Control cores 250V AC
  • Control core pairs : 250V / AC
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 12 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V
  • Control cores C / C : 1500V, C / S : 750V

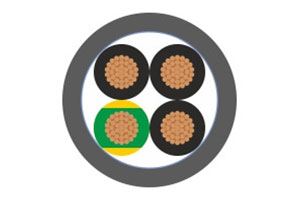

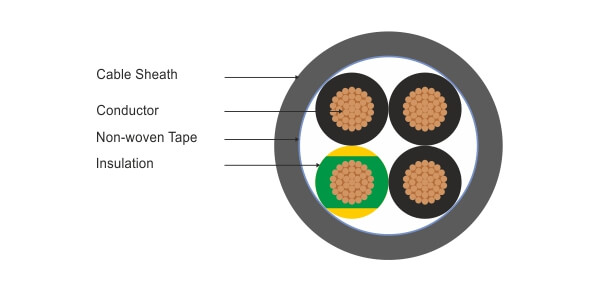

Cable Construction :-

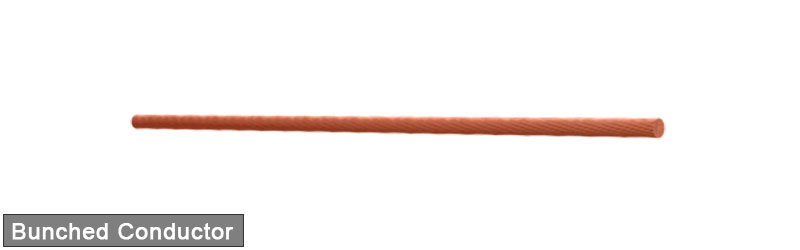

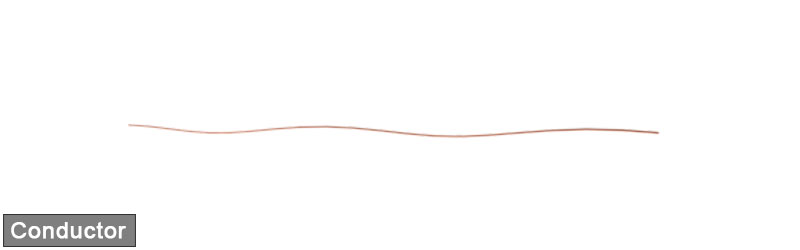

  • Bare copper, fine wire conductors, according to EN 60228 cl. 6.

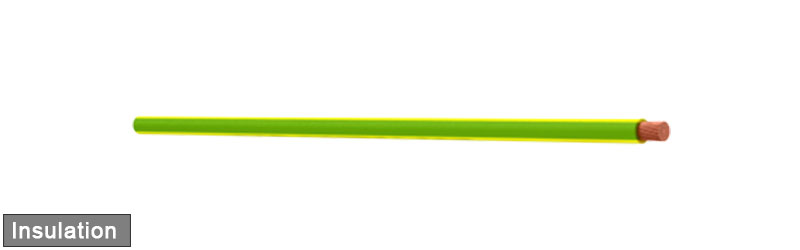

  • Core insulation of special PVC or TPE (control cores).
  • Control core pairs : screened with laminated film and a la yer of tinned-copper wires.

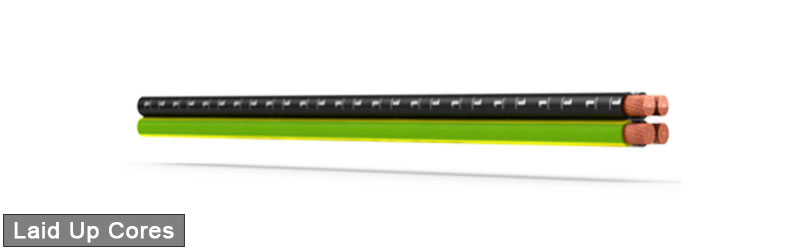

  • Cores and pairs are twisted together.
  • Non woven wrapping.

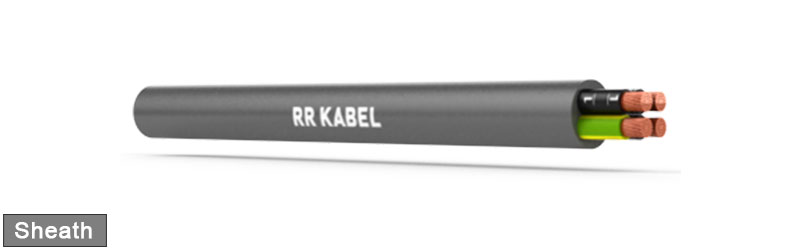

  • Outer sheath : Extruded PUR compound, grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0411004111054G1.510.01.5132
0411004112054G2.511.92.5189
0411004100044G413.74268
0411004100064G615.16374
0411004100104G1019.610609
0411004100164G1622.816896
0411005111055G1.511.21.5161
0411005112055G2.513.32.5233
0411005100045G415.24330
0411005100065G616.86461
0411005100165G1625.5161106
0411005100255G2530.8251699
