Applications :-

• These power and control flat cables can be used on festooned systems on handling equipment as overhead cranes. They are designed for indoors and outdoors for ambient temperature down to -25°C.These cables can accept a trolley traveling speed up to 120m / min.

Standard :-

• HD 359 S2, IEC 227 Part 6.

Technical Data :-

• Voltage Rating : H05VVH6-F – 300/500V, H07VVH6-F – 450/750V
• Colour Coding : Core 1: Black., Core 2: Light-blue., Core 3: Green-yellow., Core 4: Brown., Core 5: Black.

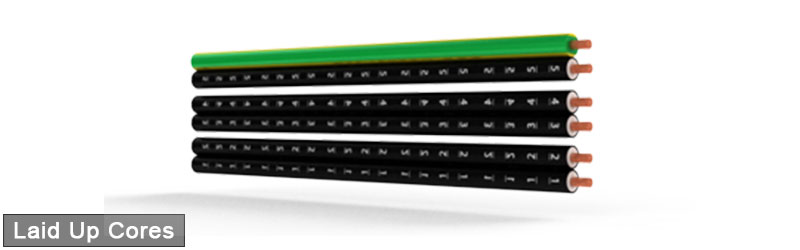

• Core 6 and above: All black numbered cores with one green / yellow earth core.

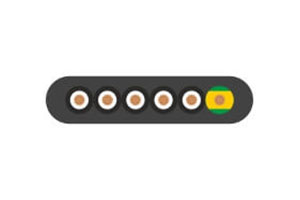

Cable Construction :-

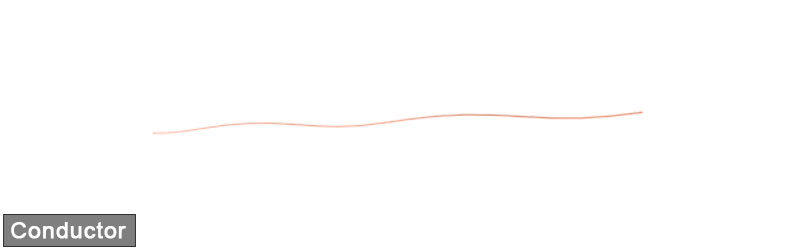

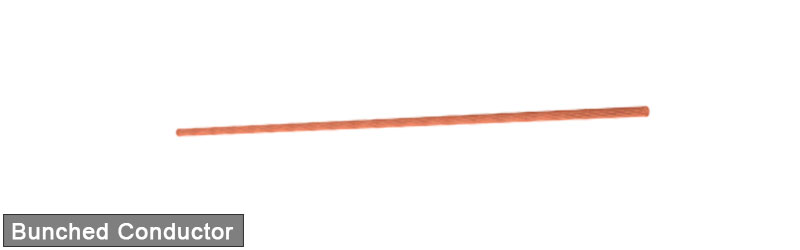

• Flexible bare copper, Class 5, IEC 60228

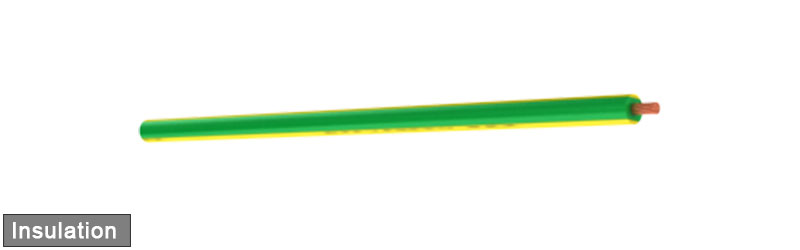

• PVC (polyvinyl chloride) insulation

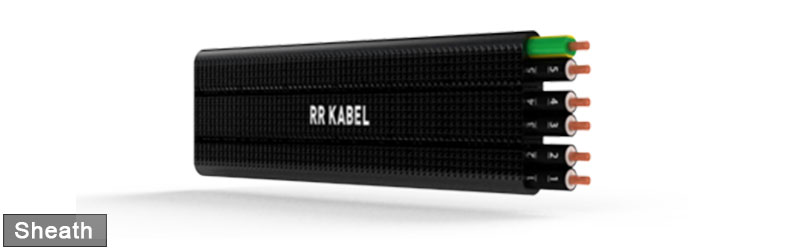

• PVC (polyvinyl chloride) outer sheath
• Cable Colour : Black
• *A stripping thread can be used in each group of cores.
• Bending Radius : Fixed installation: 8 x cable height

Cable Design Parameters :-
