Applications :-

• Silicone single core cables are used in high as well as extremely low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories. These cables are halogen-free, especially suited for use in power stations.

Standard :-

• Adapted to VDE 0250 part 1 and 502.

Specifications :-

• Voltage Rating : U / U – 300 / 500V O
• Test Voltage : 2000V
• Temperature Range : -50°C to +180°C (up to + 200°C for short time with adequate ventilation)
• Minimum Bending Radius : Fixed installation: 6 x cable ø. One bend at end of core: 3 x cable ø

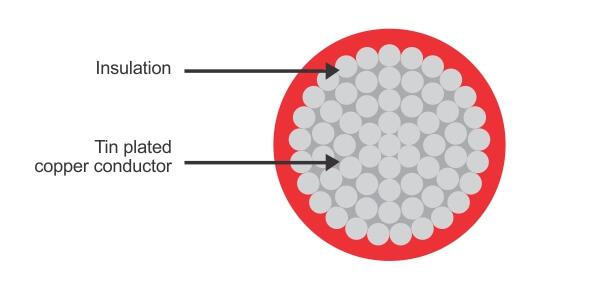

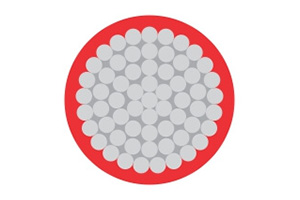

Cable Construction :-

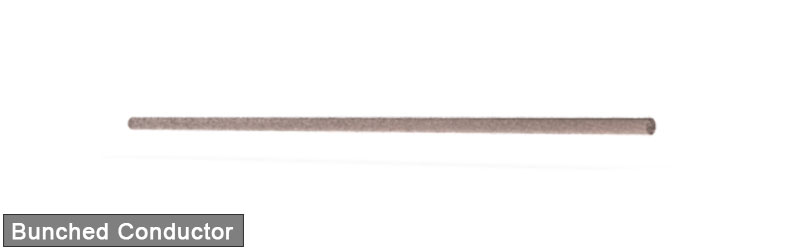

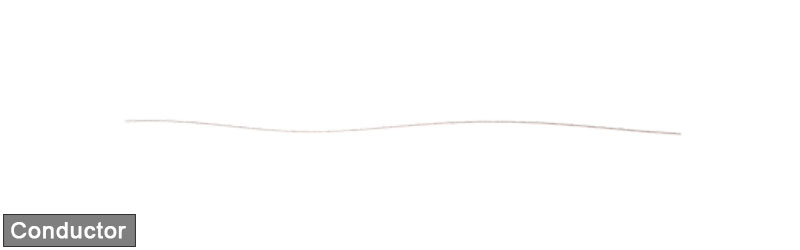

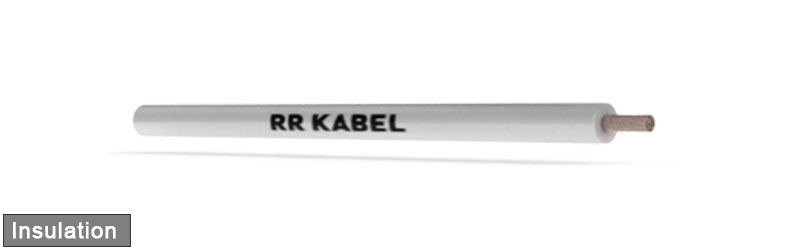

• Tinned copper conductor Cl. 5, to EN 60228. Silicone core insulation.
• Type SiFF : This variant is similar to SiF with high flexible copper strands.
• *SiF and SiFF is also available with polyester yarn over the cable.

Cable Design Parameters :-

• Kindly complete the part numbers for SiF and SiFF by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 07 – white, 09 – brown, 10 – orange, 12 – grey.
