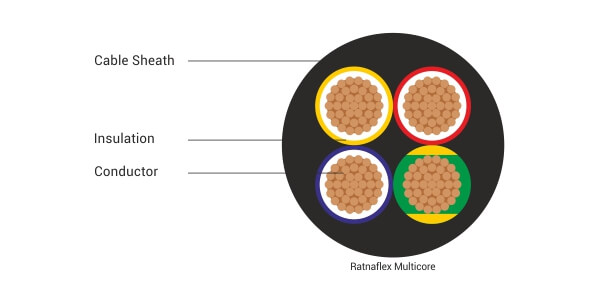

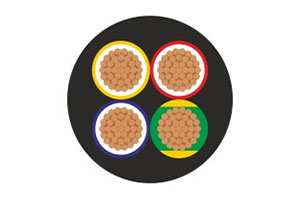

RATNAFLEX MULTICORE (IS 694)

Application :-
  • PVC and FR PVC 70°C cables suitable for wiring in residential and commercial infrastructure.
  • HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature.
  • FR-LSH cables are suitable for wiring in public places like schools, hospitals, theatres, etc.
Technical Data :-
  • Approvals : IS 694 marked, FIA/TAC

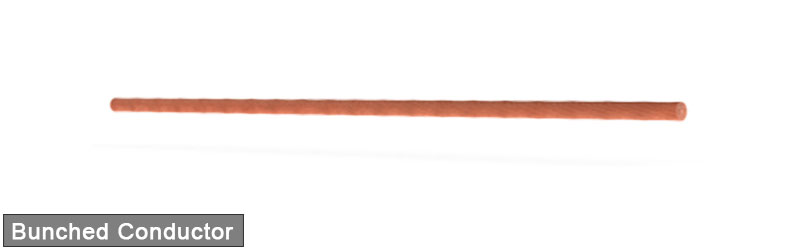

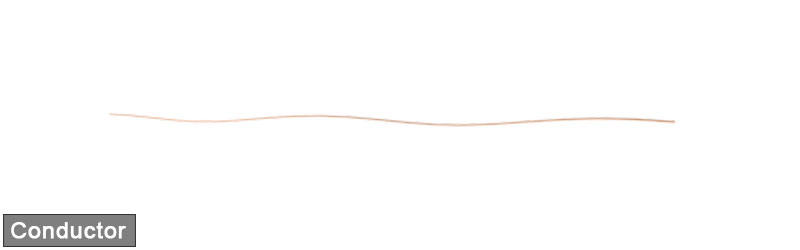

  • Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
  • Standard Cable Colour : Black, grey & white
  • Voltage Rating : Up to and including 1100V
  • Packing : Standard packing of 100 mtr. in coil. Longer length available on request
Cable Design Parameters :-
Part NumberNo. of CoresNominal Cross Sectional Area(Sq. mm)Nominal Insulation Thickness (mm)Max. D.C. Conductor Resistance at 20°C(Ώ/km)Nominal Thickness of SheathMaximum Overall Dimensions (mm)
03010101xxyz10.50.6039.00.94.3
03010102xxyz20.50.6039.00.96.9
03010103xxyz30.50.6039.00.97.3
03010104xxyz40.50.6039.00.98.0
03010105xxyz50.50.6039.00.98.7
03010106xxyz10.750.6026.00.94.5
03010107xxyz20.750.6026.00.97.3
03010108xxyz30.750.6026.00.97.7
03010109xxyz40.750.6026.00.98.4
03010110xxyz50.750.6026.00.99.2
03010111xxyz110.6019.50.94.7
03010112xxyz210.6019.50.97.6
03010113xxyz310.6019.50.98.1
03010114xxyz410.6019.50.98.8
03010115xxyz510.6019.51.09.6
03010116xxyz11.50.6013.30.95.4
03010117xxyz21.50.6013.30.98.9
03010118xxyz31.50.6013.30.99.4
03010119xxyz41.50.6013.31.010.4
03010120xxyz51.50.6013.31.011.4
03010121xxyz12.50.707.981.06.2
03010122xxyz22.50.707.981.010.3
03010123xxyz32.50.707.981.010.9
03010124xxyz42.50.707.981.012.0
03010125xxyz52.50.707.981.013.2
03010126xxyz140.804.951.06.8
03010127xxyz240.804.951.011.6
03010128xxyz340.804.951.012.4
03010129xxyz440.804.951.013.6
03010130xxyz540.804.951.115.3
03010131xxyz160.803.301.17.5
03010132xxyz260.803.301.113.0
03010133xxyz360.803.301.213.8
03010134xxyz460.803.301.215.5
03010135xxyz1101.001.911.39.4
03010136xxyz2101.001.911.316.5
03010137xxyz3101.001.911.417.7
03010138xxyz4101.001.911.419.5
03010139xxyz1161.001.211.410.9
03010140xxyz2161.001.211.419.4
03010141xxyz3161.001.211.420.6
03010142xxyz4161.001.211.423.0
03010143xxyz1251.200.7801.413.6
03010144xxyz2251.200.7801.423.8
03010145xxyz3251.200.7801.525.6
03010146xxyz4251.200.7801.628.5
03010147xxyz1351.200.5541.615.5
03010148xxyz2351.200.5541.627.2
03010149xxyz3351.200.5541.629.3
03010150xxyz4351.200.5541.732.7
03010151xxyz1501.400.3862.018.1
03010152xxyz2501.400.3862.032.0
03010153xxyz3501.400.3862.034.6
03010154xxyz4501.400.3862.038.6
03010155xxyz1701.400.2722.220.8
03010156xxyz2701.400.2722.236.8
03010157xxyz3701.400.2722.239.6
03010158xxyz4701.400.2722.244.3
03010159xxyz1951.600.2062.423.6
03010160xxyz2951.600.2062.441.8
03010161xxyz3951.600.2062.447.0
03010162xxyz4951.600.2062.450.2
03010163xxyz11201.600.1612.526.0
03010164xxyz21201.600.1612.546.2
03010165xxyz31201.600.1612.551.0
03010166xxyz41201.600.1612.555.7
03010167xxyz31501.800.1292.654.8
03010168xxyz41501.800.1292.662.1
03010169xxyz31852.000.1062.861.2
03010170xxyz41852.000.1062.868.5
03010171xxyz32402.200.08013.069.7
03010172xxyz42402.200.08013.077.9
03010173xxyz33002.400.06413.275.7
03010174xxyz43002.400.06413.284.4
