JB-750

Application :-
  • For use in connections of household appliances, plant and machinery, wiring purposes and for manufacturing cords.
Standard :-
  • Adapted to DIN VDE 0281, 0293, 0295 with insulation thickness for 1.0 kV type.
Technical Data :-
  • Nominal Voltage : U /U 450/750V o
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C
  • Fixed Installation : -30°C to +70°C
  • Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed Installation 4 x cable ø
  • Test Voltage : 4000V
  • Breakdown Voltage : Min. 8000V

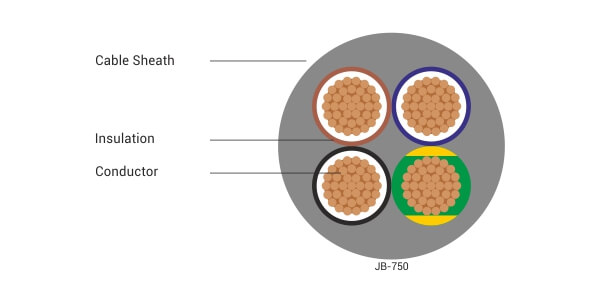

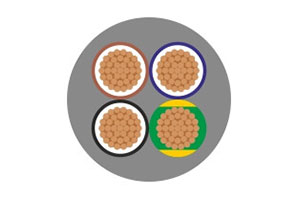

Cable Construction :-

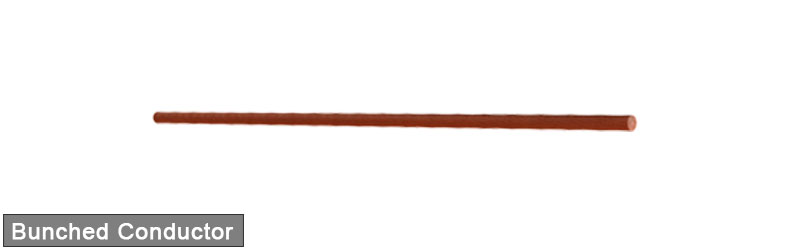

  • Bare copper, fine wire conductors, as per EN 60228 Cl.5.

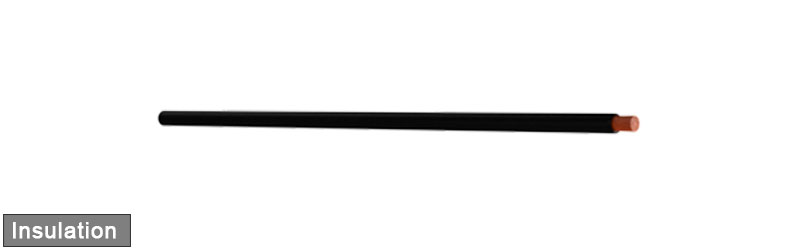

  • Special PVC core insulation TI2, to EN 50363-3.
  • Harmonised core colour to HD 308.
  • For cores above 5 cores black core with continuous white numbering according to DIN VDE 0293.
  • Green-Yellow earth core in outer layer (3 cores and above).

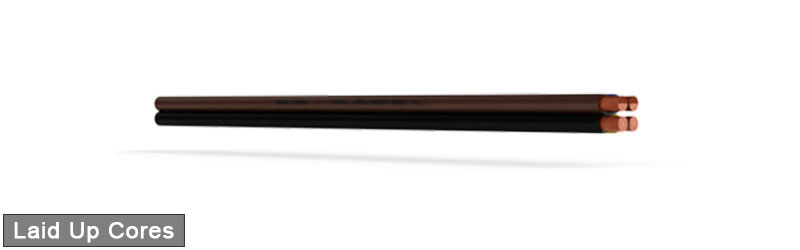

  • Cores stranded in layers with optimal lay-length.

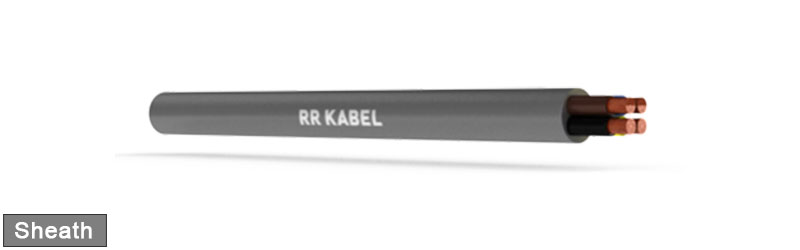

  • Special PVC outer sheath TM2, to EN 50363-4.1.
  • Colour Grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)
0304002012052 x 2.59.1
0304003112053G 2.59.9
0304003012053 x 2.59.9
0304004112054G 2.511.1
0304004012054 x 2.511.1
0304005112055G 2.512.4
0304005012055 x 2.512.4
0304006112056G 2.513.3
0304007112057G 2.514.6
0304002000042 x 410.4
0304003100043G 411.2
0304004100044G 412.5
0304005100045G 413.9
0304007100047G 416.8
03040111000411G 422.3
0304003100063G 612.6
0304004100064G 614.0
0304005100065G 615.5
0304007100067G 619.0
0304003100103G 1016.0
0304004100104G 1018.0
0304005100105G 1020.0
0304007100107G 1023.1
0304003100163G 1618.5
0304004100164G 1620.8
0304005100165G 1623.0
0304007100167G 1631.0
0304003100253G 2523.3
0304004100254G 2526.0
0304005100255G 2529.0
0304003100353G 3526.6
0304004100354G 3529.7
0304005100355G 3533.1
0304003100503G 5030.2
0304004100504G 5033.9
0304005100505G 5037.6
0304003100703G 7037.1
0304004100704G 7041.6
0304005100705G 7046.3
0304003100953G 9540.1
0304004100954G 9544.8
0304005100955G 9550.2
0304003101203G 12045.5
0304004101204G 12050.8
0304004101504G 15057.0
0304004101854G 18565.8
