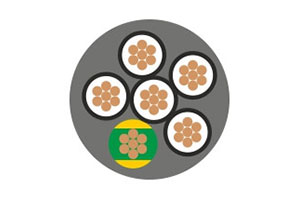

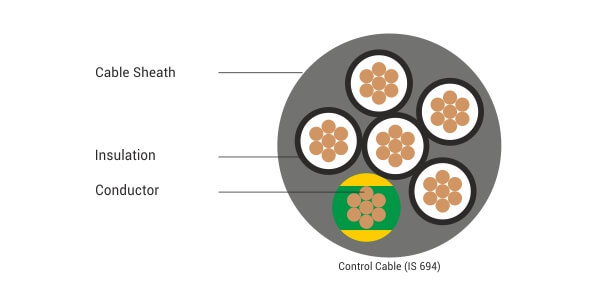

CONTROL CABLE (IS 694)

Application :-

PVC and FR PVC 70°C cables suitable for wiring in residential and commercial infrastructure.
HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature.
FR-LSH cables are suitable for wiring in public places like schools, hospitals, theatres, etc.

Technical Data :-

Approvals : IS 694 marked, FIA/TAC

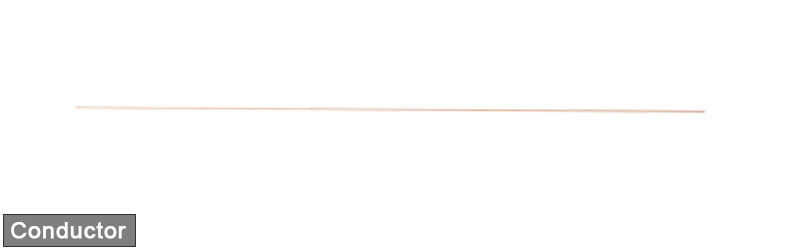

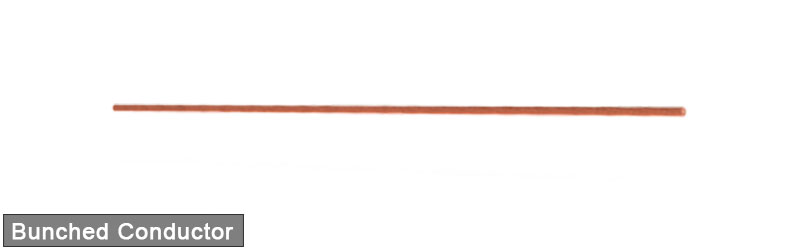

Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
Standard Cable Colour : Black, grey & white
Voltage Rating : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coil. Longer length available on request

Cable Design Parameters :-

Part Number	Nominal Cross Sectional Area(Sq. mm)	No. of Cores	Nominal Insulation Thickness (mm)	Nominal Thickness of Sheath	Maximum Overall Dimensions (mm)
03020101xxyz	0.5	6	0.6	0.9	9.5
03020102xxyz	0.5	7	0.6	0.9	9.5
03020103xxyz	0.5	8	0.6	1.0	11.1
03020104xxyz	0.5	9	0.6	1.0	11.8
03020105xxyz	0.5	10	0.6	1.0	12.0
03020106xxyz	0.5	11	0.6	1.0	12.0
03020107xxyz	0.5	12	0.6	1.0	12.4
03020108xxyz	0.5	13	0.6	1.0	13.1
03020109xxyz	0.5	14	0.6	1.1	13.1
03020110xxyz	0.5	15	0.6	1.1	13.5
03020111xxyz	0.5	16	0.6	1.1	13.8
03020112xxyz	0.5	17	0.6	1.1	14.6
03020113xxyz	0.5	18	0.6	1.1	14.6
03020114xxyz	0.5	19	0.6	1.1	14.6
03020115xxyz	0.5	20	0.6	1.2	15.4
03020116xxyz	0.5	21	0.6	1.2	15.4
03020117xxyz	0.5	22	0.6	1.2	16.3
03020118xxyz	0.5	23	0.6	1.2	16.3
03020119xxyz	0.5	24	0.6	1.2	17.1
03020120xxyz	0.5	25	0.6	1.2	17.1
03020121xxyz	0.75	6	0.6	1.0	10.0
03020122xxyz	0.75	7	0.6	1.0	10.0
03020123xxyz	0.75	8	0.6	1.0	11.8
03020124xxyz	0.75	9	0.6	1.1	12.4
03020125xxyz	0.75	10	0.6	1.1	12.7
03020126xxyz	0.75	11	0.6	1.1	12.7
03020127xxyz	0.75	12	0.6	1.1	13.1
03020128xxyz	0.75	13	0.6	1.1	13.8
03020129xxyz	0.75	14	0.6	1.1	13.8
03020130xxyz	0.75	15	0.6	1.2	14.3
03020131xxyz	0.75	16	0.6	1.2	14.6
03020132xxyz	0.75	17	0.6	1.2	15.4
03020133xxyz	0.75	18	0.6	1.2	15.4
03020134xxyz	0.75	19	0.6	1.2	15.4
03020135xxyz	0.75	20	0.6	1.3	16.3
03020136xxyz	0.75	21	0.6	1.3	16.3
03020137xxyz	0.75	22	0.6	1.3	17.3
03020138xxyz	0.75	23	0.6	1.3	17.3
03020139xxyz	0.75	24	0.6	1.3	18.2
03020140xxyz	0.75	25	0.6	1.3	19.0
03020141xxyz	1.0	6	0.6	1.0	10.5
03020142xxyz	1.0	7	0.6	1.0	10.5
03020143xxyz	1.0	8	0.6	1.0	12.4
03020144xxyz	1.0	9	0.6	1.1	13.1
03020145xxyz	1.0	10	0.6	1.1	13.4
03020146xxyz	1.0	11	0.6	1.1	13.4
03020147xxyz	1.0	12	0.6	1.1	13.9
03020148xxyz	1.0	13	0.6	1.1	14.6
03020149xxyz	1.0	14	0.6	1.1	14.6
03020150xxyz	1.0	15	0.6	1.2	15.1
03020151xxyz	1.0	16	0.6	1.2	15.4
03020152xxyz	1.0	17	0.6	1.2	16.3
03020153xxyz	1.0	18	0.6	1.3	16.3
03020154xxyz	1.0	19	0.6	1.3	16.3
03020155xxyz	1.0	20	0.6	1.4	17.3
03020156xxyz	1.0	21	0.6	1.4	17.3
03020157xxyz	1.0	22	0.6	1.4	18.2
03020158xxyz	1.0	23	0.6	1.4	18.2
03020159xxyz	1.0	24	0.6	1.4	19.2
03020160xxyz	1.0	25	0.6	1.4	19.2
03020161xxyz	1.5	6	0.6	1.0	12.4
03020162xxyz	1.5	7	0.6	1.0	12.4
03020163xxyz	1.5	8	0.6	1.1	14.7
03020164xxyz	1.5	9	0.6	1.1	15.6
03020165xxyz	1.5	10	0.6	1.1	16.0
03020166xxyz	1.5	11	0.6	1.1	16.0
03020167xxyz	1.5	12	0.6	1.1	16.5
03020168xxyz	1.5	13	0.6	1.2	17.4
03020169xxyz	1.5	14	0.6	1.2	17.4
03020170xxyz	1.5	15	0.6	1.2	18.1
03020171xxyz	1.5	16	0.6	1.2	18.4
03020172xxyz	1.5	17	0.6	1.3	19.5
03020173xxyz	1.5	18	0.6	1.3	19.5
03020174xxyz	1.5	19	0.6	1.3	19.5
03020175xxyz	1.5	20	0.6	1.4	20.7
03020176xxyz	1.5	21	0.6	1.4	20.7
03020177xxyz	1.5	22	0.6	1.4	21.9
03020178xxyz	1.5	23	0.6	1.4	21.9
03020179xxyz	1.5	24	0.6	1.4	23.0
03020180xxyz	1.5	25	0.6	1.4	23.0
03020181xxyz	2.5	6	0.7	1.1	14.5
03020182xxyz	2.5	7	0.7	1.1	15.5
03020183xxyz	2.5	8	0.7	1.2	17.3
03020184xxyz	2.5	9	0.7	1.3	18.3
03020185xxyz	2.5	10	0.7	1.3	18.7
03020186xxyz	2.5	11	0.7	1.3	18.7
03020187xxyz	2.5	12	0.7	1.3	19.4
03020188xxyz	2.5	13	0.7	1.3	20.5
03020189xxyz	2.5	14	0.7	1.3	20.5
03020190xxyz	2.5	15	0.7	1.4	21.3
03020191xxyz	2.5	16	0.7	1.4	21.7
03020192xxyz	2.5	17	0.7	1.4	23.0
03020193xxyz	2.5	18	0.7	1.4	23.3
03020194xxyz	2.5	19	0.7	1.4	23.8
03020195xxyz	2.5	20	0.7	1.4	24.4
03020196xxyz	2.5	21	0.7	1.5	25.0
03020197xxyz	2.5	22	0.7	1.5	25.8
03020198xxyz	2.5	23	0.7	1.5	26.3
03020199xxyz	2.5	24	0.7	1.5	27.2
03020200xxyz	2.5	25	0.7	1.5	27.9
