JZ-50440 CP

Application :-
  • For use as a data and control cable in machinery, computer systems etC as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses. Such cables can also be used for outdoor applications for the permitted temperature range.
Technical Data :-
  • Standard : Adapted to EN 50525-2-51
  • Nominal Voltage : U / U 300 / 500 V O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -40°C to +90°C.
  • Fixed installation -50°C to +90°C
  • Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 6 x cable ø
  • Test Voltage : 3000V

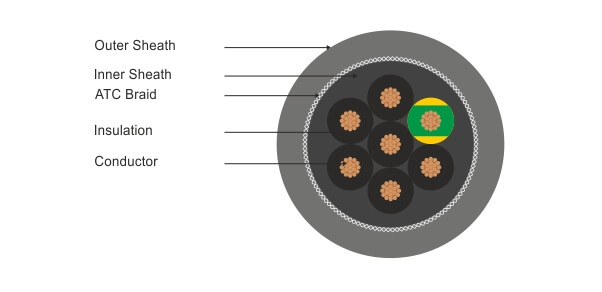

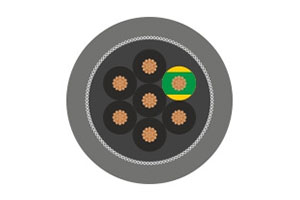

Cable Construction :-

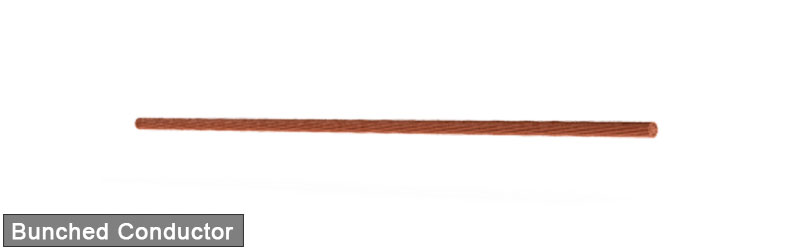

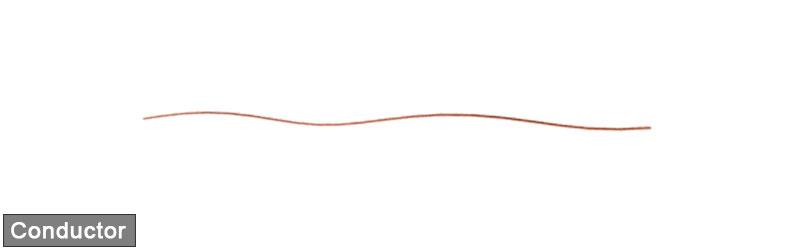

  • Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.

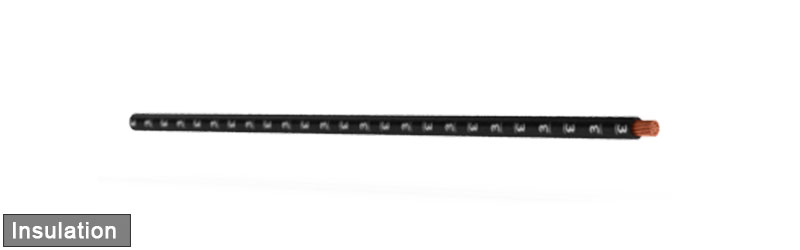

  • Core insulation of TPE.
  • Black core with continuous white numbering according to DIN VDE 0293.
  • Green/yellow earth core in outer layer (3 cores and above).

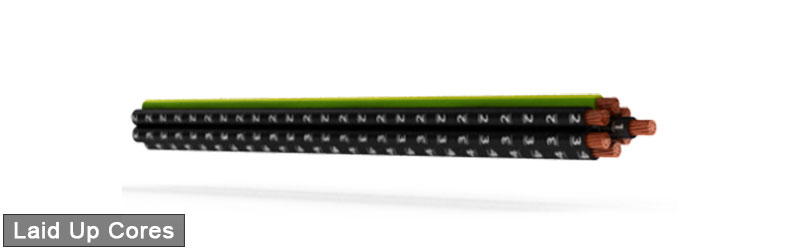

  • Cores stranded in layers with optimal lay-length.

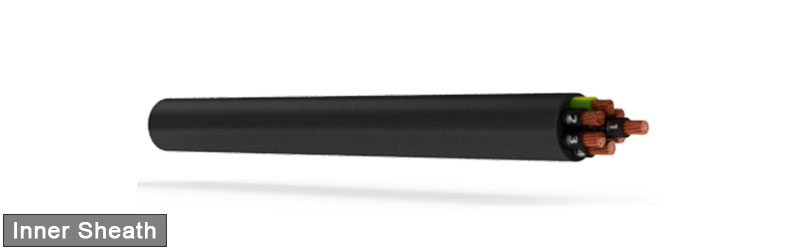

  • TPE inner sheathed.

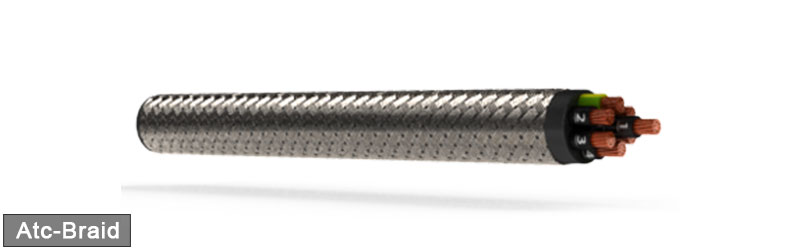

  • Tinned copper braided screen.

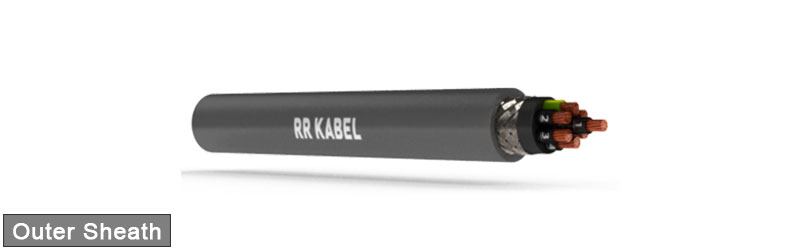

  • Special polyurethane outer sheath (PUR).
  • Sheath colour : Grey (RAL 7001).
Cable Design Parameters :-
Part NumberNo. of Cores & Nominal Cross Sectional Area(Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0405003110503G 0.58.331.183
0405004110504G 0.58.837.195
0405005110505G 0.59.743.3114
0405007110507G 0.511.253.8150
04050121105012G 0.513.783.1226
04050181105018G 0.515.7114.4301
04050251105025G 0.518.5176.0430
0405002010752 x 0.758.431.084
0405003110753G 0.758.738.895
0405004110754G 0.759.547.0114
0405005110755G 0.7510.255.4133
0405007110757G 0.7511.971.2179
04050121107512G 0.7514.5111.8269
04050251107525G 0.7520.3236.3542
0405002000012 x 18.736.293
0405003100013G 19.346.3111
0405004100014G 19.958.3131
0405005100015G 110.867.6154
0405007100017G 112.888.2213
04050121000112G 115.4161.2332
04050181000118G 117.7223.2448
04050251000125G 121.5295.9637
04050341000134G 123.8386.0799
0405002011052 x 1.59.546.8114
0405003111053G 1.59.960.8132
0405004111054G 1.510.876.3161
0405005111055G 1.511.3291.0182
0405007111057G 1.513.92119.5265
04050121110512G 1.516.8216.1416
04050181110518G 1.520302.9591
04050251110525G 1.523.5408.1808
04050411110541G 1.528.72635.41229
0405003112053G 2.511.1290.9178
0405004112054G 2.512.32115.1222
0405005112055G 2.514159.9296
0405007112057G 1.516.4208.5402
04050121120512G 2.521329.4648
