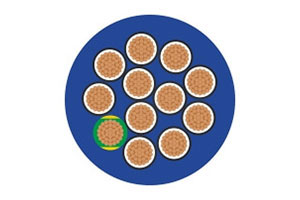

JZ-EB CY

Application :-
  • Installation of intrinsically safe circuits.
Standard :-
  • Adapted to DIN EN 60079-14: VDE 0165 Part1.
Technical Data :-
  • Nominal Voltage : U / U 300 / 500V. < 50V AC < 75V DC O
  • Insulation Resistance : Min. 20 GΩ x cm
  • Temperature Range : Flexing -5°C to +70°C.
  • Fixed installation -30°C to +70°C
  • Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
  • Test Voltage : 4000V

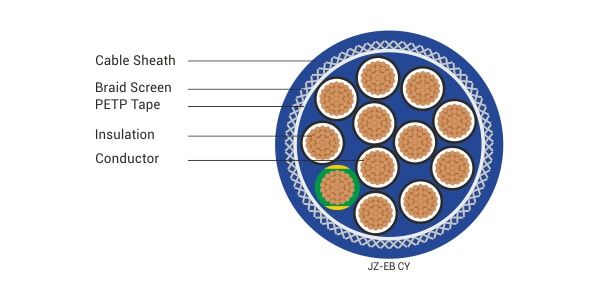

Cable Construction :-

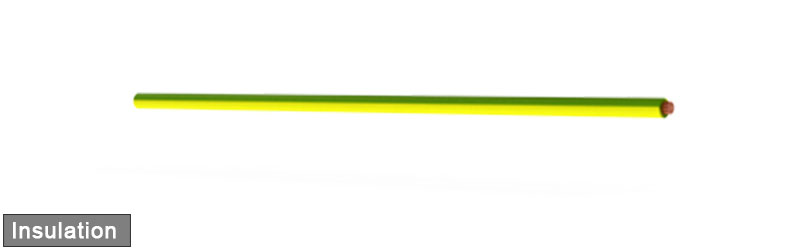

  • Special PVC core insulation TI2, to EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.

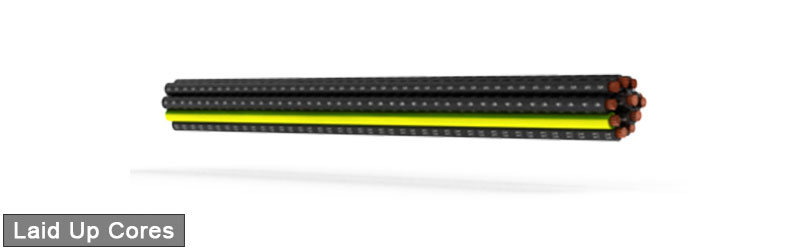

  • Cores stranded in layers with optimal lay-length.

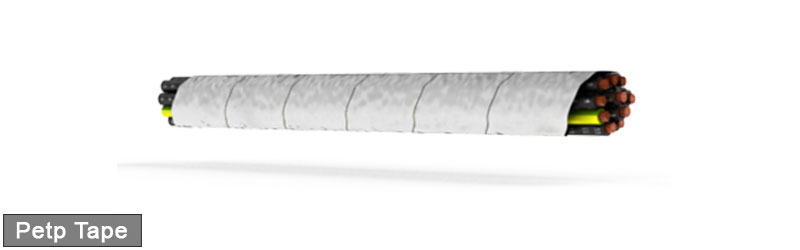

  • Plastic foil wrapping.

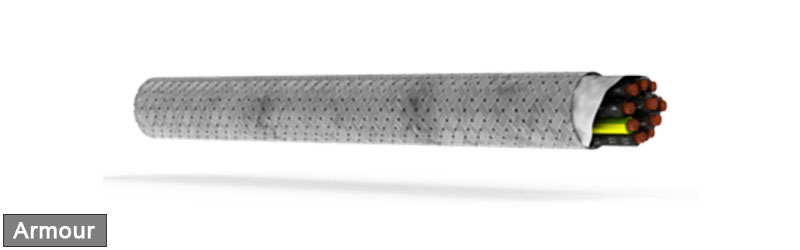

  • Tinned-copper braided screen, approx. 85% coverage.

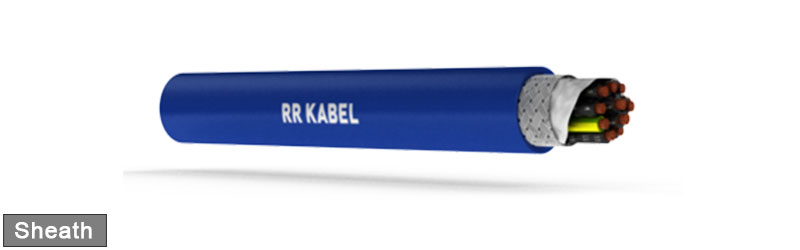

  • Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
  • Colour Black (RAL 9005).
Cable Design Parameters :-
Part NumberNo. of Cores and Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx. Cable Weight (kg/km)
0316002010752 x 0.756.225.053.2
0316002010753 x 0.756.531.364.0
0316002010754 x 0.757.039.077.0
0316002010754G 0.757.039.077.0
0316002010755 x 0.757.747.293.4
0316002010757 x 0.758.362.0116.4
03160020107512 x 0.7510.998.9189.7
03160020107518 x 0.7512.7141.0265.0
03160020107525 x 0.7514.8210.6363.6
0316002010752 x 16.529.559.7
0316002010753 x 16.838.973.6
0316002010754 x 17.349.189.0
0316002010755 x 18.158.4108.1
0316002010757 x 18.877.2136.8
03160020107512 x 111.5125.5223.3
03160020107518 x 113.9180.0328.9
03160020107525 x 115.9266.1439.8
0316002010752 x 1.57.139.473.9
0316002010753 x 1.57.551.792.7
0316002010754 x 1.58.266.2115.9
0316002010755 x 1.58.980.9138.7
0316002010757 x 1.59.9108.0182.3
03160020107512 x 1.513.0175.1298.0
03160020107518 x 1.515.6276.0450.8
03160020107525 x 1.517.9377.6596.4
