Application :-

• Halogen-free single-core wires are used for installation in dry environments for wiring up lighting fixtures and units where valuable assets are to protected from further damage resulting from fire. These cables may be installed on, in and beneath plaster, as well as in closed installation ducts. The direct operating voltages is permitted up to 900 V against ground when they are used in rail-coaches. For the inner wiring of switch boards and distributors are to be used with an alternating nominal voltage up to 1000V or a direct voltage up to 750V against ground.

Standard :-

• BS EN 50525-3-41.

Technical Data :-

• Nominal Voltage : H05Z-K U / U 300 / 500V, H07Z-K U / U 450 / 750V O O
• Harmonised Designation : 0.5 mm2 to 1 mm2 – H05Z-K, 1.5 mm2 to 240 mm2 – H07Z-K
• Temperature Range : -15°C to +90°C
• Minimum Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx. diameter > 8 to 12 mm : 5 x outer diameter, Approx. diameter > 12 mm : 6 x outer diameter
• Test Voltage : 2500V

Cable Construction :-

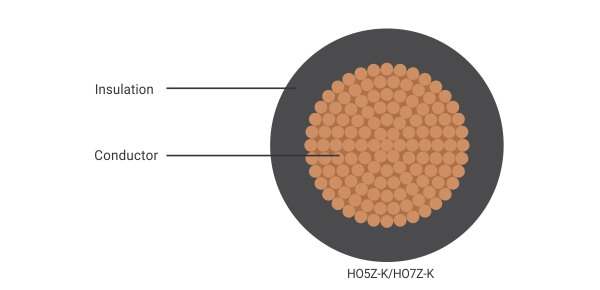

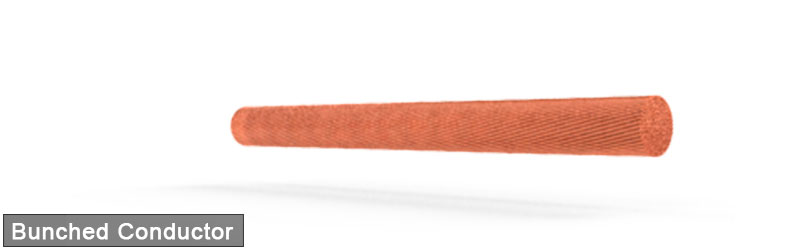

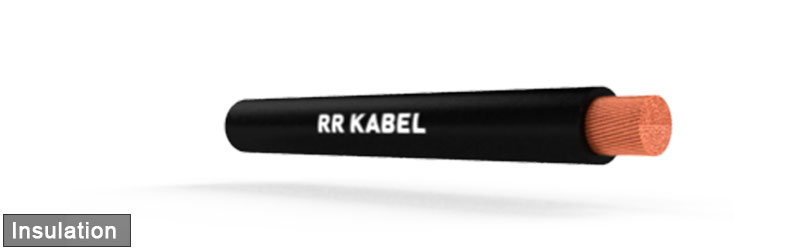

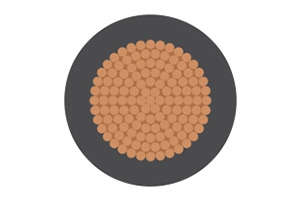

• Conductor Class 5 flexible plain/metal coated stranded according to EN 60228. Insulation Polyolefin cross linked EI5 to EN 50363-5.

Tests :-

• Smoke density to acc. to EN 61034-2.
• Halogen free acc. to EN 50525-1, EN 60754-1.
• Corrosivity acc. to EN 60754-2 Ozone resistant according to EN 60811-2-1.
• Self-extinguishing and flame retardant according to EN 60332-1-2.
• LSOH = Low Smoke Zero Halogen-Free.

Cable Design Parameters :-

• Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
• By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
