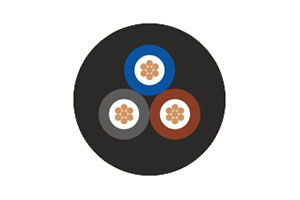

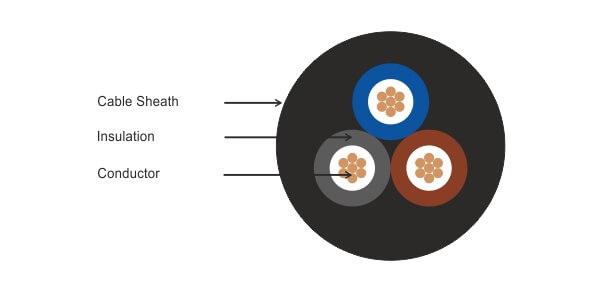

UL 2464

Applications :-
  • Suitable for use as a command, measuring and control cable in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.
Technical Data :-
  • Standard : UL- Std. 758. Special PVC command cable, approved to UL – Style 2464, cores according to AWG 24 – 16 to UL – Style 1007/1569
  • NominalVoltage : 300V
  • TestVoltage : 1500V
  • Temperature Range : Flexible -10°C to +80°C.
  • Fixed installation -20°C to + 80°C
  • BreakdownVoltage : Min. 3000V
  • Bending Radius : Flexing approx. 15x cable ø
Cable Design Parameters :-

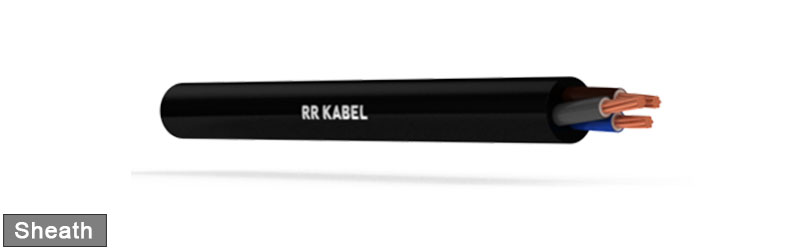

  • Kindly complete the part numbers for these cables by adding the suffix (in place of 'z') for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001)
Part NumberAWG No.No. of Cores & Nominal Cross Sectional Area (Sq. mm)Approx. Cable Diameter (mm)Approx. Copper Weight (kg/km)Approx Cable Weight (kg/km)
06070101000z2245.1432.9
06070102000z3245.35.936.9
06070103000z4245.77.943.5
06070104000z6246.511.958.1
06070105000z10247.919.887.8
06070106000z12248.123.795.2
06070107000z16248.931.6116.5
06070108000z18249.335.6128.6
06070109000z242410.747.4170.6
06070110000z2215.77.943.6
06070111000z3215.911.950.1
06070112000z4216.415.860.1
06070113000z6217.423.782.3
06070114000z10219.139.5127.7
06070115000z12219.447.4140
06070116000z162110.363.2173.9
06070117000z182110.871.1192.9
06070118000z242112.594.8258.1
06070119000z2196.111.952.3
06070120000z3196.317.861.1
06070121000z4196.923.774.1
06070122000z619835.6102.8
06070123000z10199.959.3161.6
06070124000z121910.271.1178.5
06070125000z161911.294.8223.6
06070126000z181911.8106.7248
06070127000z241913.7142.3333.8
06070128000z2186.715.864.4
06070129000z318723.775.9
06070130000z4187.631.692.8
06070131000z6188.947.4130.2
06070132000z101811.179207
06070133000z121811.494.8229.4
06070134000z161812.6126.5288.6
06070135000z181813.3142.3321.5
06070136000z241815.5189.7433.8
06070137000z2167.323.480.4
06070138000z3167.635.196.2
06070139000z4168.346.8118.8
06070140000z6169.870.2168.5
06070141000z101612.3117271
06070142000z121612.7140.4302
06070143000z161614187.2382.6
06070144000z181614.8210.6427
06070145000z241617.3280.8577.7
