Application :-

• Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.
• PVC 70°C cables suitable for general wiring in control cabinets, panels and power switchgear.
• FR PVC 70°C cables suitable for ambient wiring in control cabinets, panels and power switchgear for enhanced safety.
• HR PVC 70°C cables suitable for higher ambient wiring in control cabinets, panels and power switchgear.
• HR FR PVC 85°C cables suitable for higher ambient wiring in control cabinets, panels and power switchgear and enhanced safety.
• FR-LSH PVC cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas in industries and commercial infrastructure.
• HFFR cables, suitable for critical and dense wiring for utmost safety of public like schools, hospitals, theatres, etc. These are also suitable for fire prone areas.

Technical Data :-

• Approvals : IS 694 marked, FIA / TAC

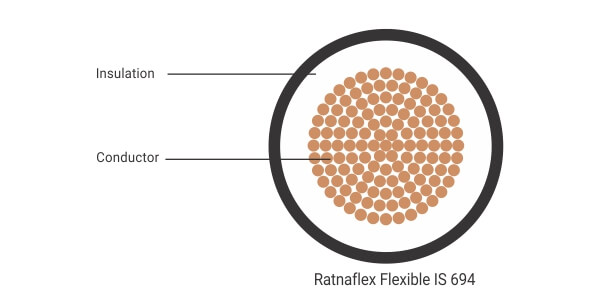

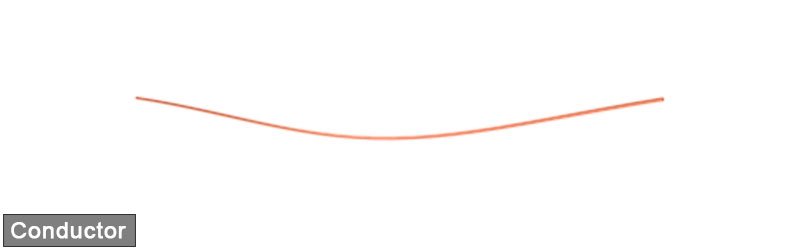

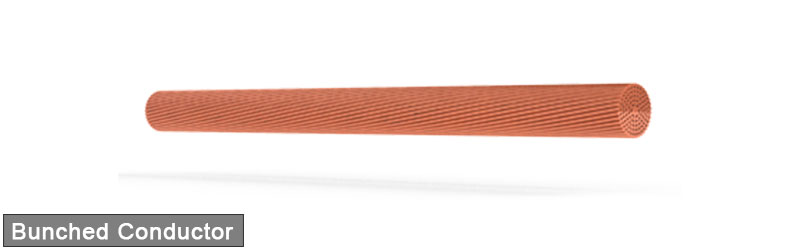

• Conductor : Electrolytic grade annealed copper
• Voltage : Up to and including 1100V
• Packing : Standard packing of 100 mtr. in coil. Longer length available on request

Cable Design Parameters :-

• Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.

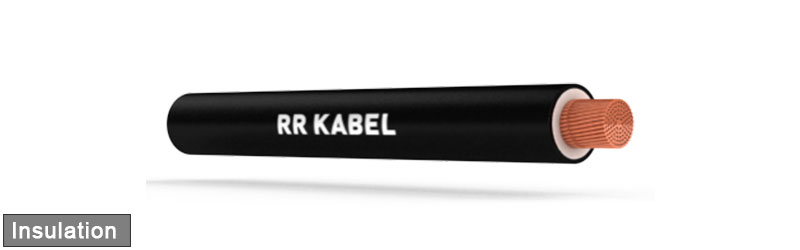

• By adding the suffix (in place of ‘y’) for the insulation material required: 1 – PVC 70°C, 2 – PVC FR 70°C, 3 – PVC HR 85°C, 4 – PVC HR 85°C +FR, 5 – PVC FR-LSH, 7 – HFFR.
