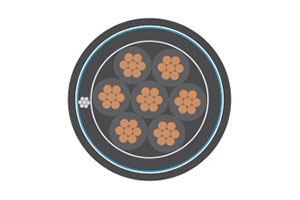

RE-2X(St)Y – MULTICORE

Applications :-
  • Adapted to EN 50288-7.

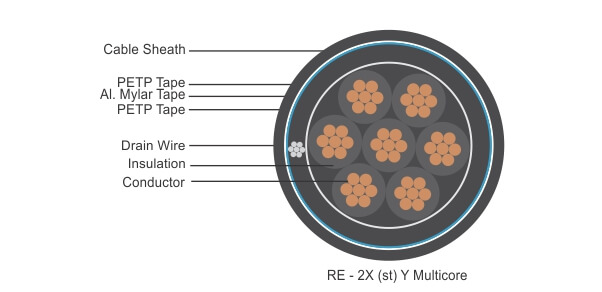

Cable Construction :-

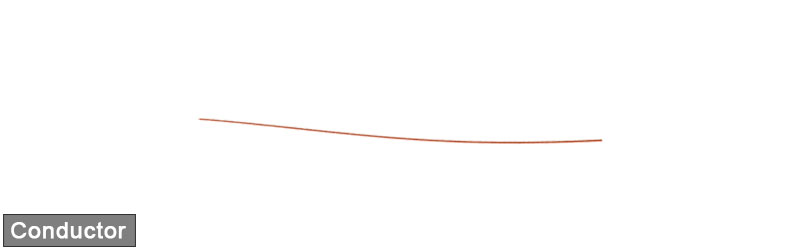

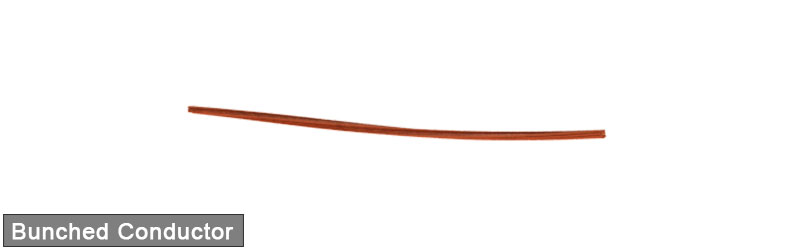

  • Conductor : Annealed copper wires according to BS EN 60228

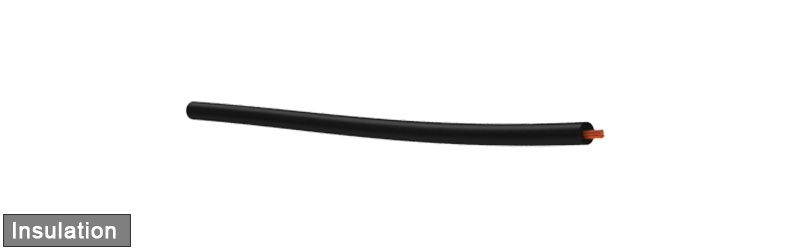

  • Insulation : Cross-linked polyethylene XLPE
  • Individual Screen : Aluminium / PETP tape over tinned copper drain wire, plastic tape under and above screen
  • Colour Code : Black, continuously numbered in white

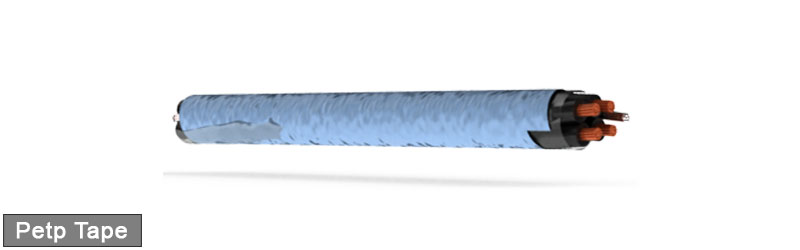

  • Wrapping : 1 layer of PETP tape
  • Collective Screen : Aluminium / PETP tape over tinned copper drain wire

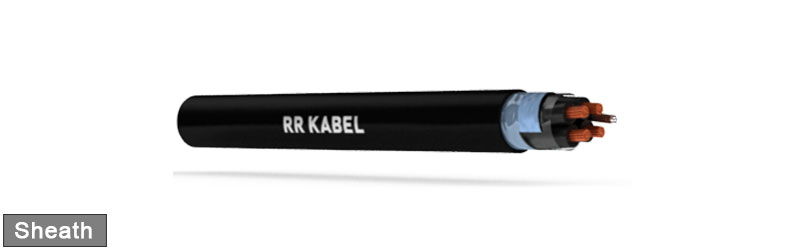

  • Cable Sheath : Polyvinyl Chloride PVC (Also available in halogen free construction on request.)
  • Colour : Black. Blue for intrinsically safe system
Technical Data :-
  • Flame Propagation : EN 60332-1-2
  • Operating Temperature Range : -30°C to +90°C
  • Bending Radius : 7.5 x cable diameter
  • Operating Voltage : 500V
  • *Also available in 300V variant on request
  • Marking : RR KABEL c x a RE-2X(St)Y 500V EN 50288-7 CE + 0001m
  • c – No. of cores, a – Cross sectional area
Electrical Properties :-
Conductor Cross Section (Sq.mm)Class of ConductorNo. of Strands/Max. Strand Diameter (mm)Max. DC Conductor Resistance at 20°C (Ω/km)Max. L/R Ratio (μH/Ω)Min. Insulation Resistance (GΩ x cm)Max. Mutual Capacitance (nF/km)Max. Inductance (mH/km)Test Voltage Vrms (Core-Core)Test Voltage V rms (Core-Screen)
0.527/0.336.02520250120002000
0.5516/0.239.02520250120002000
0.7527/0.3724.52520250120002000
0.75524/0.226.02520250120002000
127/0.4318.12520250120002000
1532/0.219.52520250120002000
1.527/0.5312.14020250120002000
2.527/0.677.416020250120002000
